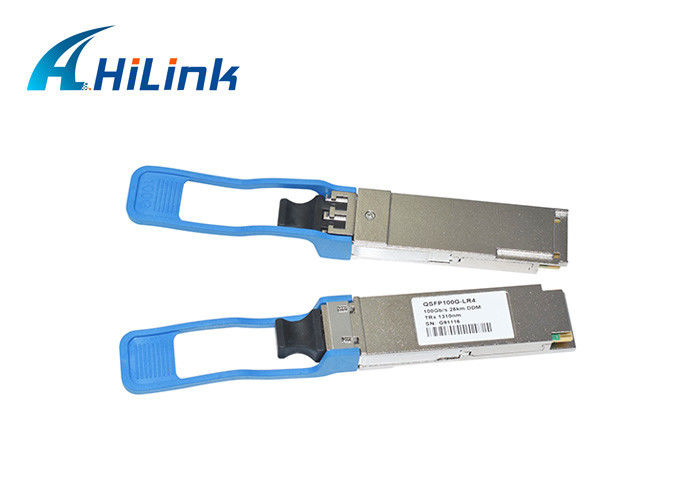

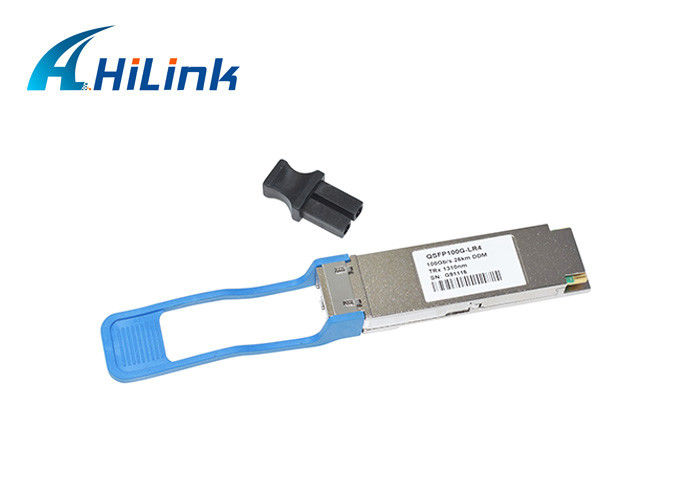

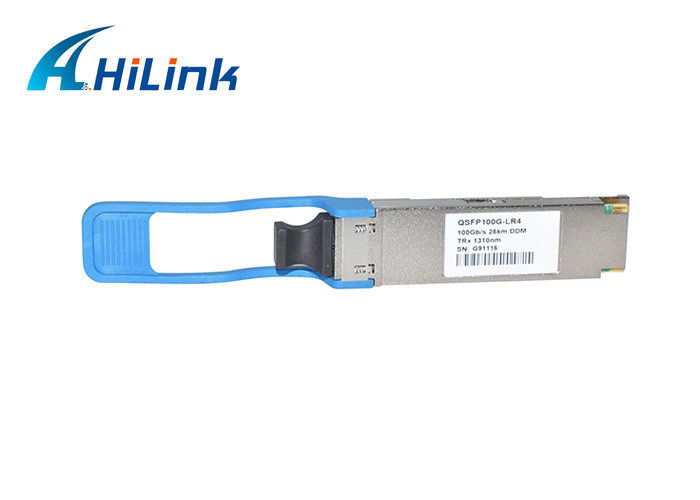

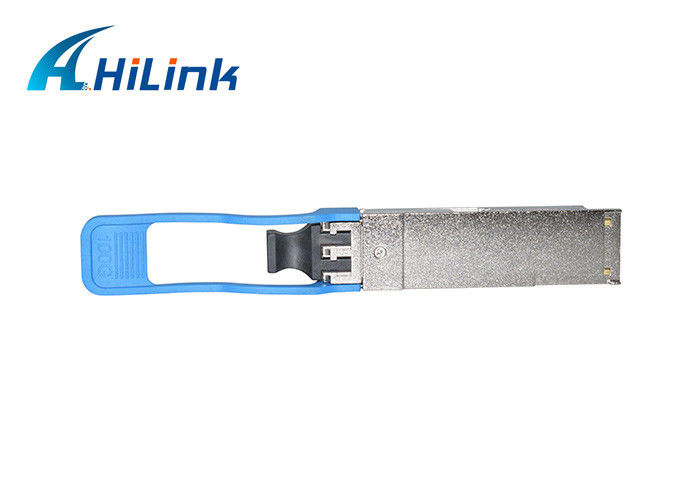

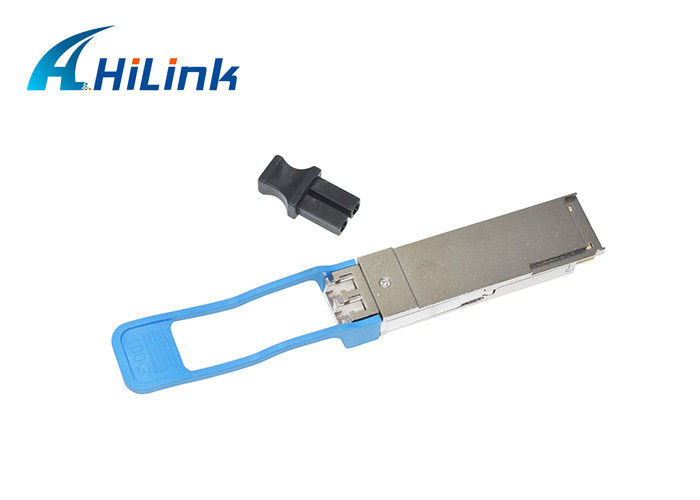

Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver

Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver

qsfp transceiver module

qsfp optical module

LR4 25KM Ethernet QSFP+ Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QS100G-LR

Contact Us
Request A Quote
Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver
Product Details
Data Rate:
100Gb/s
Distance:
25KM
Wavelength:
1310nm
Fiber Connector:
LC
Warranty:
3 Years
Package:
QSFP28
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
100/PCS/MONTH
RELATED PRODUCTS
Good price LC Connector SOA Pin Fiber Optic Transceiver Good Communication Networking Product QSFP28 ZR4 80KM LWDM4 1295-1304NM online

LC Connector SOA Pin Fiber Optic Transceiver Good Communication Networking Product QSFP28 ZR4 80KM LWDM4 1295-1304NM

Get Best Price
Good price 100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC online

100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC

Get Best Price
Good price Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product online

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product

Get Best Price
Good price Hilink 100G QSFP28 ZR4 80KM LWDM 1295-1304NM SOA+PIN Duplex LC Connector Transceiver Module online

Hilink 100G QSFP28 ZR4 80KM LWDM 1295-1304NM SOA+PIN Duplex LC Connector Transceiver Module

Get Best Price
Contact Us
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description

Data Center Ethernet 100Gb Gbic SFP 1310nm 25km Upgraded version BASE-LR4 QSFP28 Optical module



100GBASE-LR4 QSFP28 25km



The QSFP28 Transceiver module is designed for 103Gigabit Ethernet links over 25km single mode fiber. It is compliant with IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.





Features:
>Supports 103Gbps
>Single 3.3V Power Supply and Power dissipation <3.5W
>Up to 25km over SMF
>Commercial case temperature range: 0℃ to 70℃
>Four 25Gbps DML LAN-WDM channels on transmitter side
>PIN and TIA array on the receiver side
>4x25G electrical interface
>Duplex LC receptacles
>I2C interface with integrated Digital Diagnostic Monitoring
>RoHS 6 compliant

Applications:
100GBASE-LR4
Infiniband QDR/DDR/SDR
100G Datacom connections
Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver 0

1Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver 1

Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver 2





40G 100G QSFP+/ QSFP28
QSFP-40G-SR4 QSFP+, 40GBASE-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4 QSFP+, 40GBASE-ESR4, MMF, 850nm, 300M (OM4) - MPO
QSFP-40G-LR4 QSFP+, 40GBASE-LR4, SMF, 1270~1330,10KM LC
QSFP-40G-PSM-LR4 QSFP+, 40GBASE-LR4, SMF, PSMLR 1310,10KM MPO

QSFP-40G-LR4 20KM QSFP+, 40GBASE-LR4, SMF, 1270~1330,20KM LC
QSFP-40G-ER4 25~ 30KM 30km 1270~1330, LC 40G RX PIN TIA
QSFP-40G-ER4 40KM 40km 1270~1330, LC CWDM4+ APD

100G QSFP28 SR4 100GBASE-SR4 QSFP28
QSFP28 100G CWDM4 2KM QSFP28 CWDM4 2KM 1271~1331 LC
QSFP28 100G CWDM4 10KM QSFP28 CWDM4 10KM 1271~1331 LC
QSFP28 100G PSM4 2KM 100G QSFP28 PSM4 2KM MPO

QSFP28 100G 1310 10KM 10km LR4 QSFP28-LR4 LC LWDM4
QSFP28 100G 1310 25KM 25km LR4 LWDM QSFP28-LR4 LC
QSFP28 100G 1310 30KM APD 30KM LR4 LWDM QSFP28-LR4 LC
QSFP28 100G 1310 ER4 40km ER4 1295~1304NM QSFP28



Compatible with CISCO 100Gb QSFP28 LR4 25KM Ethernet QSFP+ Transceiver 3
