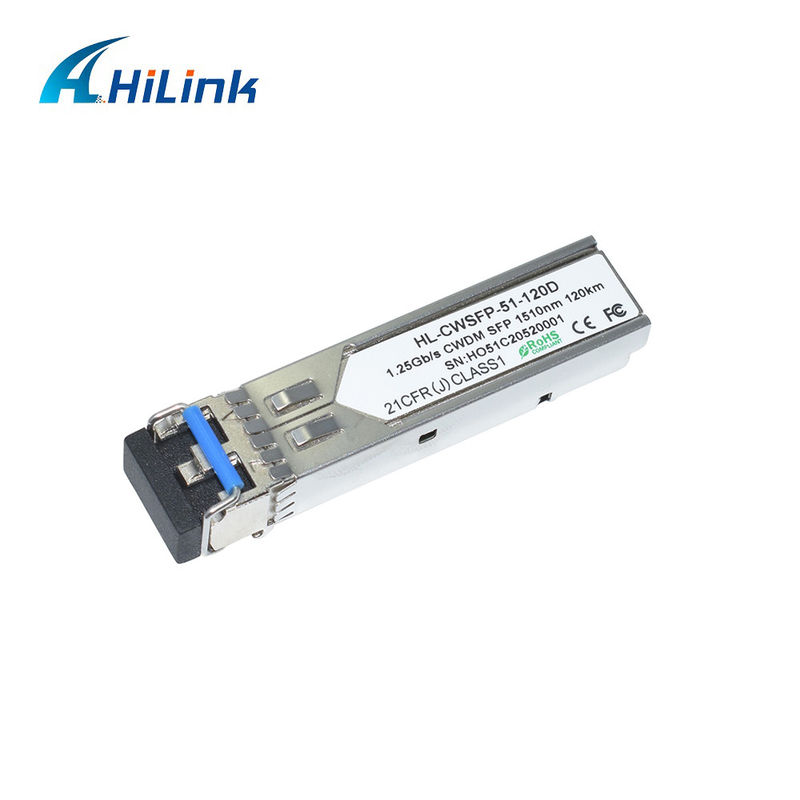

    120km CWDM SFP Fiber Optic Ethernet Transceiver LC 1000Base 1.25G 1470-1610nm With DDM

    Product Details:

    Place of Origin: China
    Brand Name: HILINK
    Certification: CE, ROHS, FCC
    Model Number: 1.25G-CWDM-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Blister Packaging, 10pcs/ tray
    Delivery Time: 1-3 days
    Payment Terms: T/T, Western Union
    Get Best Price Contact Now

    Detail Information

    Form Type: SFP Max Data Rate: 1000Mbps
    Wavelength: 1470~1610nm Max Cable Distance: 120km
    Optical Components: DFB CWDM Interface: LC Duplex
    High Light:

    fiber transceiver module

    ,

    optical fiber transceiver

    Product Description

    120km CWDM SFP Fiber Optic Ethernet Transceiver LC 1000Base 1.25G 1470-1610nm With DDM

    1000Base 1.25G 1470-1610nm 120km CWDM SFP Transceiver LC with DDM






    Product Features

    • Up to 1.25Gb/s dual data links
    • Hot-pluggable SFP footprint
    • Uncooled DFB laser transmitter in 8 possible CWDM wavelengths
    • Duplex LC connector
    • Up to 80km on 9/125µm SMF
    • Metal enclosure for lower EMI
    • Single +3.3V power supply
    • Low power dissipation <700mW
    • Commercial operating temperature range: 0°C to +70°C



    Applications

    • Gigabit Ethernet
    • 1.06 Gb/s Fibre Channel
    •

    General

    Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.



    Product Selections

    xx Wavelength Clasp Color Code xx Wavelength Clasp Color Code
    47 1470nm Gray 55 1550nm Yellow
    49 1490nm Violet 57 1570nm Orange
    51 1510nm Blue 59 1590nm Red
    53 1530nm Green 61 1610nm Brown
