Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | 1.25G-CWDM-80D |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging, 10pcs/ tray |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Data Rate: | 1.25Gbps | Wavelength Nm: | 1270nm-1610nm |
|---|---|---|---|
| Transfer Distance: | 80km SMF | RX Sensi: | ≤-24dBm |
| Connector: | Dual LC | Warranty: | 3 Years |
| DOM: | Yes | ||
| High Light: | 1.25G SFP SMF Transceiver,80KM SFP SMF Transceiver,1000base Wavelength Division Multiplexing |
||
Product Description

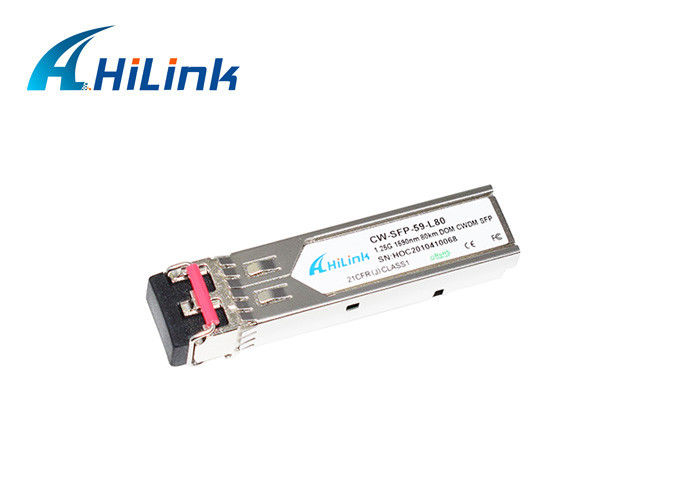

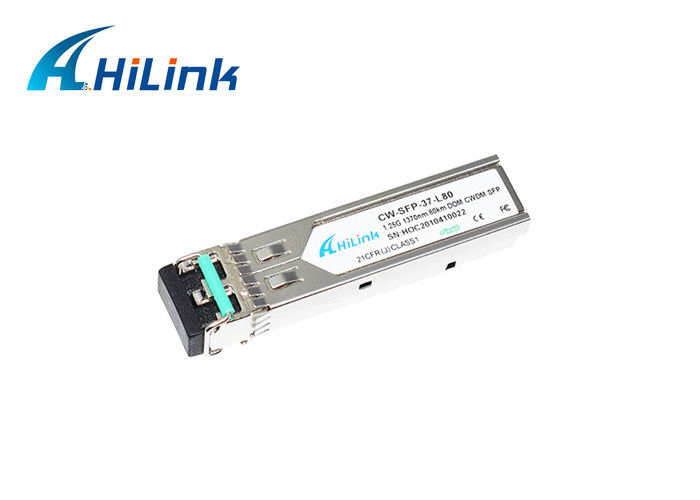

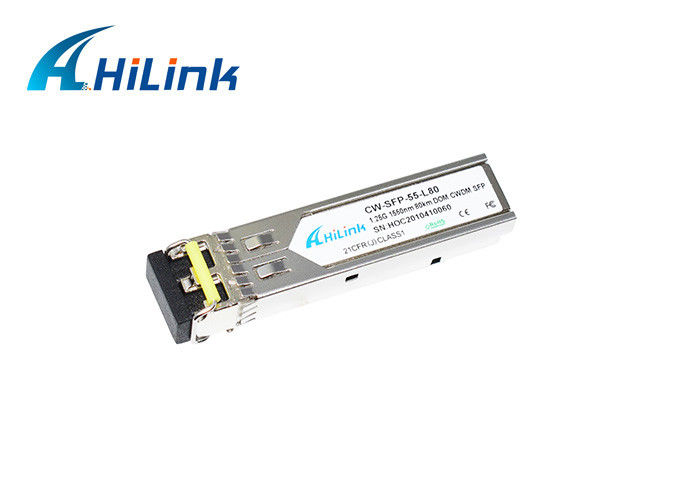

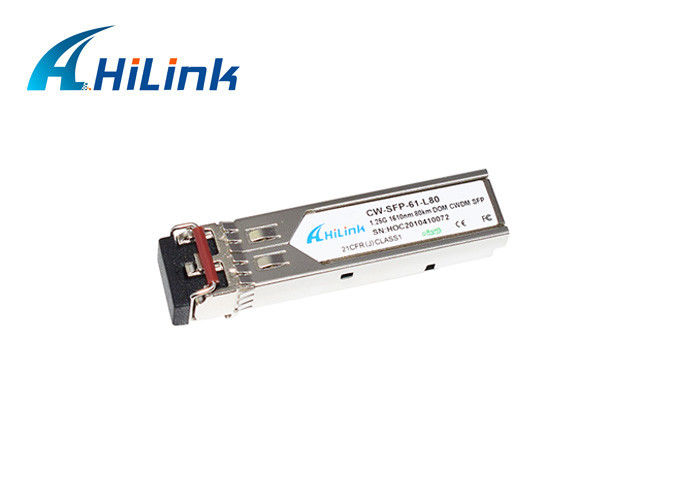

CWDM 1270nm-1610nm 1.25G 80KM SFP SMF Transceiver 1000base Duplex LC Connector Wavelength Division Multiplexing
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
80km CWDM SFP
Features:
From 1.25G 2.5Gbps to 10Gbps CWDM optical transceiver
Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
Wavelength selectable to ITU-T standards covering
Link length up to80km
APD for 80km
CWDM Grid wavelength
Low Power Dissipation 1.5W Maximum
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring
RoHS compliant and lead free
CWDM PON network including 10G CWDM XFP/SFP+ 10g CWDM X2/XENPAK
Applications:
CWDM upto 10GBASE-ZR/ZW (with/without FEC)
ATM SDH/SONET
CWDM PON network
CWDM Series
| CWDM SFP/GBIC | ||||
| CWDM SFP 1G/2G | (1270-1610nm) | 40/80/120km | CWDM SFP | 0~70 |
| CWDM GBIC 1.25G | (1270-1610nm) | 40/80/120km | CWDM GBIC | 0~70 |
| CWDM XFP(10G) | ||||
| CWDM XFP LR | (1270-1330nm) | 10KM | CWDM XFP | 0~70 |
| CWDM XFP ER | (1470-1610nm) | 40KM | CWDM XFP | 0~70 |
| CWDM XFP ZR | (1470-1610nm) | 80KM | CWDM XFP | 0~70 |
| CWDM SFP+(10G) | ||||
| CWDM SFP 10G LR | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70 |
| CWDM SFP ER | (1470-1610nm) | 40KM | CWDM SFP+ | 0~70 |
| CWDM SFP ZR | (1470-1610nm) | 80KM | CWDM SFP+ | 0~70 |
| CWDM XENPAK(10G) | ||||
| CWDM XENPAK ER | 1470nm~1610nm | 40KM | CWDM XENPAK | 0~70 |
| CWDM XENPAK ZR | 1470nm~1610nm | 80KM | CWDM XENPAK | 0~70 |
| CWDM X2 (10G) | ||||
| CWDM X2 -ERC | 1470nm~1610nm | 40KM | CWDM X2 | 0~70 |
| CWDM X2-ZRC | 1470nm~1610nm | 80KM | CWDM X2 | 0~70 |
The schematic diagram is for reference only. If you have any questions, please contact customer service
* Please leave us a message about the brand your switch is compatible with.Then we will match the code for you .
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
FEATURES :
| Product Name | CWSFP-1410-80D | Vendor Name | HiLink |
| Form Type | SFP | Max Data Rate | 1000Mbps |
| Wavelength | 1410nm | Max Cable Distance | 80km |
| Interface | LC Duplex | Optical Components | DFB CWDM+PIN CWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-25dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Power Supply | +3.3V |
RELEVANT SOLUTION :
PRODUCT SHOW :
