Name: PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-EPON
Price: 130.00 USD
Availability: InStock

Home > products > Optical Transceiver Module >

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

PON SFP Optical Transceiver Module

20km SFP Optical Transceiver Module

1.25g EPON OLT Transceiver Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-EPON

Request A Quote

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

Product Details

Data Rate:

1.25g

Wavelength:

1490 Nm TX / 1310 Nm RX

Distance:

20km

Product Name:

EPON OLT PX20++

Logo:

Can Be Customized

Warranty:

3 Years

Tx Power:

6dbm

Application:

EPON OLT

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Payment Terms

T/T, Western Union, MoneyGram,Paypal

Supply Ability

2000pcs/month

High Quality 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP Optical Module Fiber Optic Equipment

Get Best Price

Compatible XFP-10G-LR Switch Optic Transceiver Module 10GB 1310nm 10KM Fiber Optic Equipment

Get Best Price

QSFP28 BIDI 100G ZR QSFP28 80km 1280/1300nm 100GBASE-BX80 QSFP28 Module 80km LC

Get Best Price

Hilink 10GB SFP+ 10G-LRS Transceiver with 3 Years Warranty 1310nm Dual LC Connector 1.4KM SMF Communication & Networking Product

Get Best Price

86-755-8317-6243

Contact Now

Product Description

1.25g EPON OLT PX20++ 20km TX1490/RX1310 SFP module

Hilink EPON OLT SFP (gepon olt sfp) is a compact, hot-pluggable transceiver used for bothtelecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network component vendors.

Features

Compatible IEEE 802.3ah 1000BASE-PX20++ GEPON application
Applied to EPON OLT for a Single Fiber Bi-directional EPON System
SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472

Burst Digital Receiving Signal Strength Indication (RSSI)
Single 3.3V power supply
Operation case temperature -10~70°C for commercial
RoHS-6 compliance

Absolute Maximum Ratings

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT 0

Operating Condition

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT 1

3 Order Information

Part Number	Product Description
EPON OLT SFP	20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db

EPON OLT PX20+	EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
EPON OLT PX20++	EPON OLT PX20++, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db
EPON OLT 7dBm	EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+	GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+	GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++	GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm	GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP	GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP	EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP	ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G

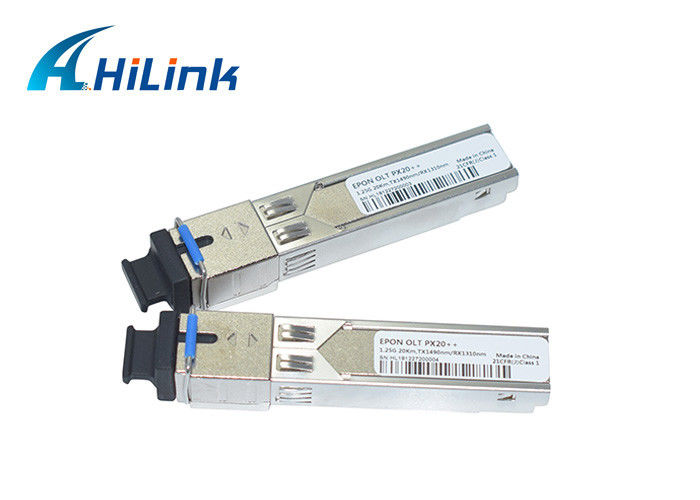

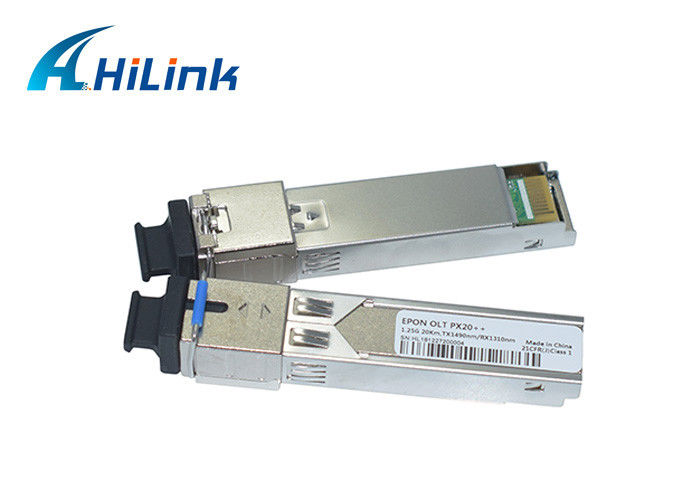

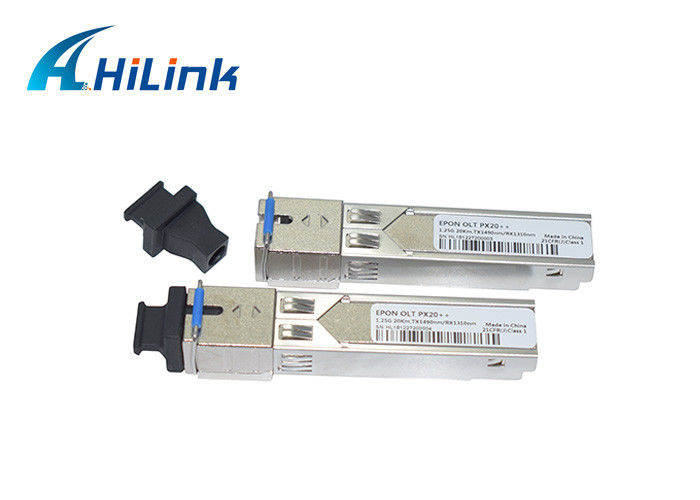

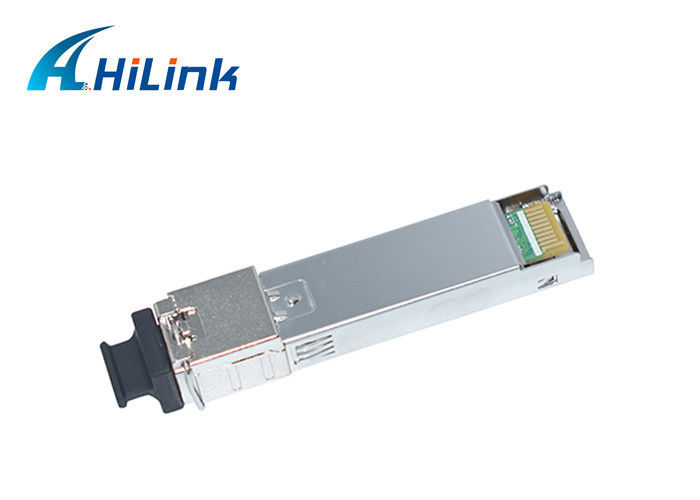

products picture
