Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-200G-OTN

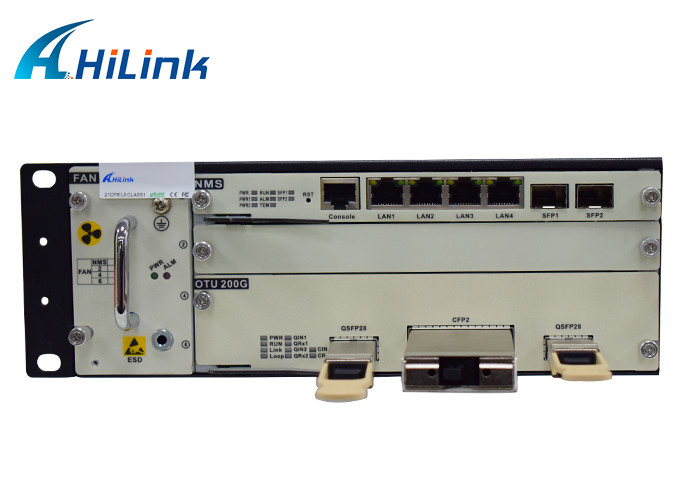

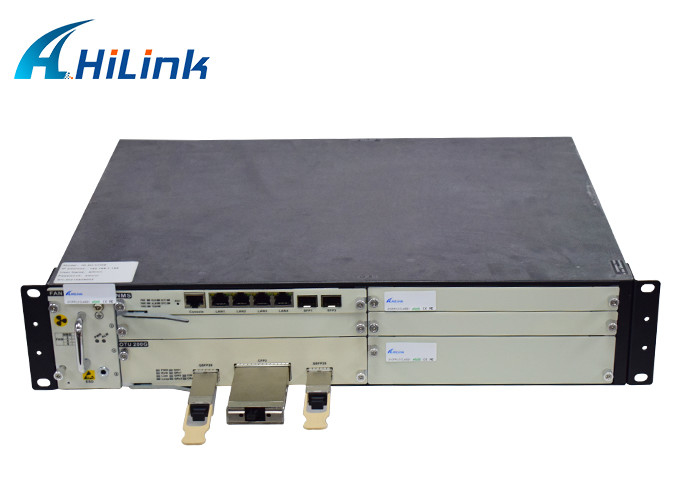

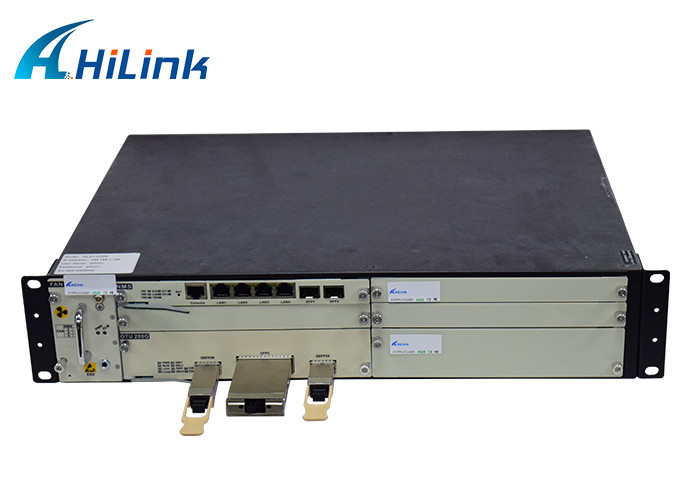

200G CFP2 DCO Coherent module Chssis Slot EDFA OLP DWDM OTN Transmission System
DWDM OTN Solution
It is a compact, high-capacity, low-cost OTN optical transmission system introduced by HTF. It adopts CWDM / DWDM common platform design, supports multi-service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry's most cost-effective transmission application platform. Build a large-capacity WDM transmission expansion solution for IDC and ISP operators
Features:
Standard size: 1U , LGX Slot
Flexible operating mode
High output power
RS232C interface with SNMP capability
Specifications
| System parameters | Technical indicators | |
| Center wavelength | DWDM 1529.5~1565.50nm | |
| Data Rate (Gbps) | 200Gebps | |
| 200G interface | Client side | 2xQSFP28 module |
| Line side | CFP2 200Gbps coherent module | |
| FEC (gain, delay, BER threshold) | RS-FEC(G.709) | 6.2dB, 1.2µs, 8.5e-2 |
| EFEC | 9.4dB, 16µs, 3.6e-2 | |
| SD-FEC | 10.1dB, 7.9µs, 1.0e-2 | |
| NMS | TELNET,SNMP,WEB | |
| Size | 191(W)× 20(H)× 253(D)mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤50W | |
