Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | 10G-ZR-1550-120KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging, 10pcs/ tray |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Data Rate: | 10Gbps | Wavelength Nm: | 1550NM |
|---|---|---|---|
| Transfer Distance: | 120km SMF | Connector: | Duplex LC |
| DDM: | Yes | Warranty: | 3 Years |
| High Light: | 1550nm SMF Optical Transceiver Module,120KM LC Optical Transceiver Module,DDM Duplex Sfp Optical Module |
||
Product Description
10GBASE-ZR 120KM SFP+ 10GBASE 120KM LC 1550nm Transceiver Module
Features:
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.8W
Temperature Range: 0~ 70°C
RoHS compliant
Application:
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channel
General
HILINK's HLPG120D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The HLPG120D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1550nm cooled CML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 120km links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

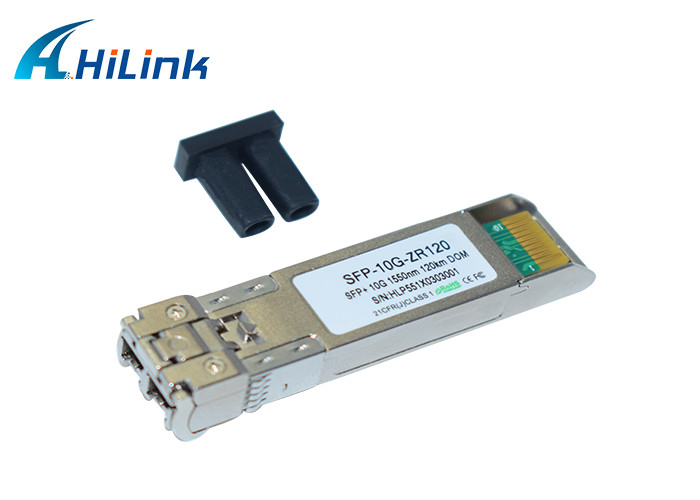

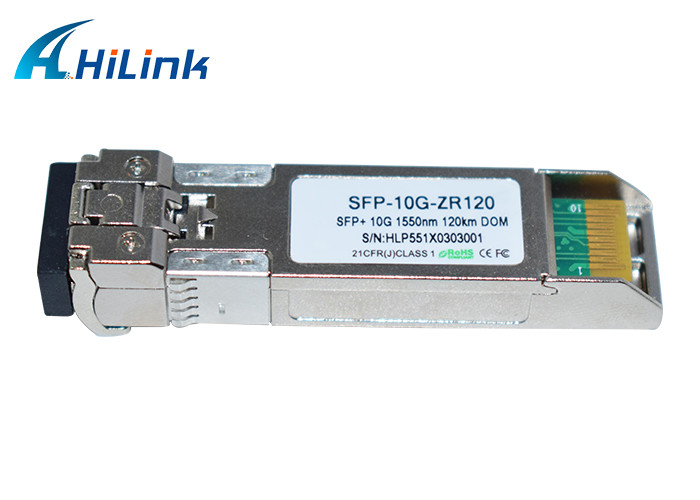

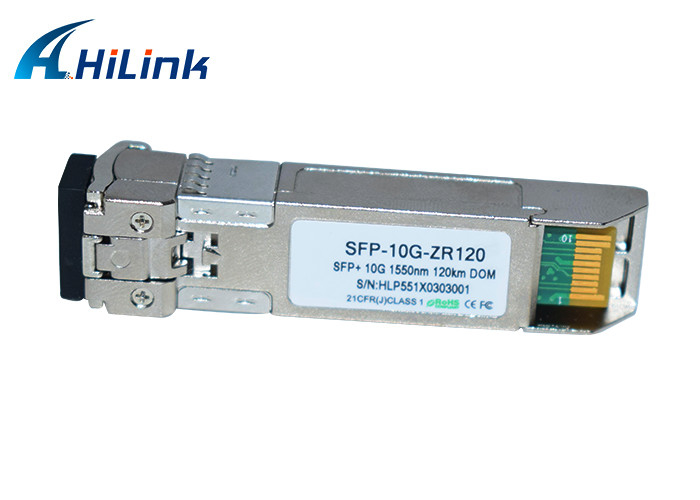

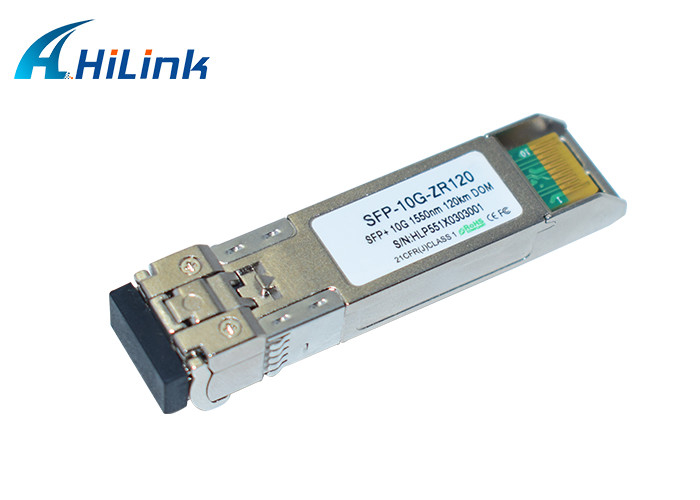

Picture show
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λt | 1530 | 1550 | 1565 | nm | |
| spectral width | △λ | 0.3 | nm | |||
| Average Optical Power | Pavg | 0 | +5 | dBm | 1 | |
| Optical Power OMA | Poma | -2.1 | dBm | |||
| Laser Off Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | |||
| Transmitter Dispersion Penalty | TDP | 3.0 | dB | 2 | ||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
| Optical Return Loss Tolerance | 21 | dB | ||||
| Receiver Section: | ||||||
| Center Wavelength | λr | 1260 | 1600 | nm | ||
| Receiver Sensitivity | Sen | -24 | dBm | 4 | ||
| Los Assert | LOSA | -34 | - | dBm | ||
| Los Dessert | LOSD | -24 | dBm | |||
| Los Hysteresis | LOSH | 0.5 | dB | |||
| Overload | Sat | -7 | dBm | 5 | ||
| Receiver Reflectance | Rrx | -26 | dB | |||
Note:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
Mechanical Dimensions
