Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | 10G-ZR-1550-120KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging, 10pcs/ tray |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Data Rate: | 10Gbps | Wavelength Nm: | 1550NM |
|---|---|---|---|
| Transfer Distance: | 120km SMF | Connector: | Duplex LC |
| DDM: | Yes | Warranty: | 3 Years |
| High Light: | 120km SMF Optical Transceiver Module,DDM SFP+ Optical Transceiver Module,Duplex LC Sfp Fiber Transceiver |
||
Product Description

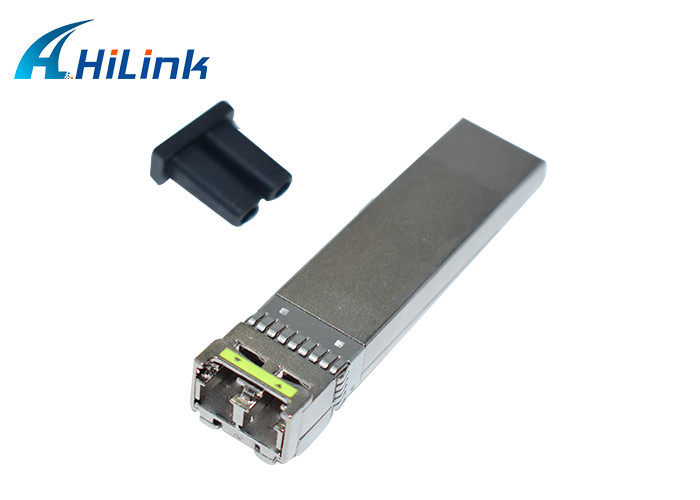

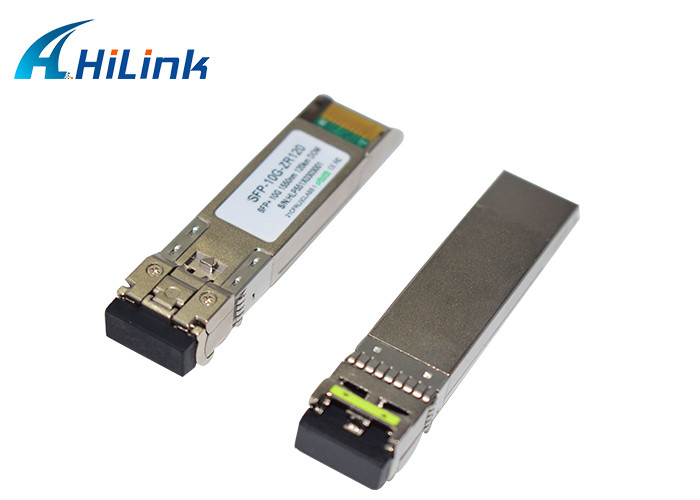

10G-ZR-120KM SFP+ 120KM LC 1550nm Fiber SMF Optical Transceiver Module
Features:
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates

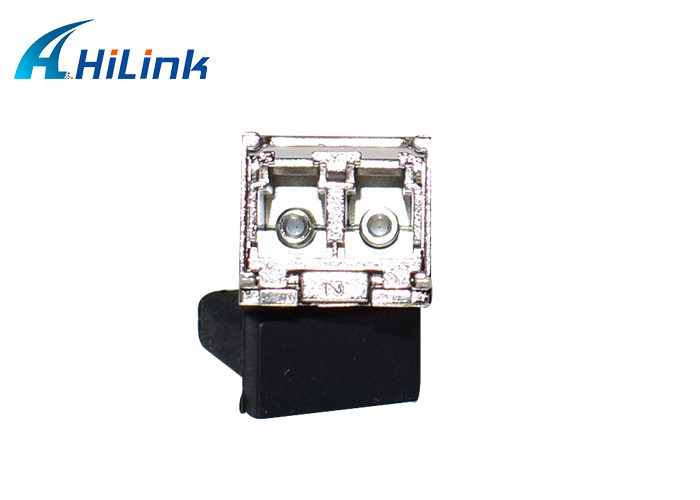

Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
Power Supply :+3.3V
Power consumption<1.8W
Temperature Range: 0~ 70°C
Application:
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channel
General
HILINK's HLPG120D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The HLPG120D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λt | 1530 | 1550 | 1565 | nm | |
| spectral width | △λ | 0.3 | nm | |||
| Average Optical Power | Pavg | 0 | +5 | dBm | 1 | |
| Optical Power OMA | Poma | -2.1 | dBm | |||
| Laser Off Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | |||
| Transmitter Dispersion Penalty | TDP | 3.0 | dB | 2 | ||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
| Optical Return Loss Tolerance | 21 | dB | ||||
| Receiver Section: | ||||||
| Center Wavelength | λr | 1260 | 1600 | nm | ||
| Receiver Sensitivity | Sen | -24 | dBm | 4 | ||
| Los Assert | LOSA | -34 | - | dBm | ||
| Los Dessert | LOSD | -24 | dBm | |||
| Los Hysteresis | LOSH | 0.5 | dB | |||
| Overload | Sat | -7 | dBm | 5 | ||
| Receiver Reflectance | Rrx | -26 | dB | |||
Note:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
Mechanical Dimensions
