Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | 10G-ZR-1550-120KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging, 10pcs/ tray |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Data Rate: | 10GB | Wavelength Nm: | 1550nm |
|---|---|---|---|
| Transfer Distance: | 120km SMF | Connector: | Duplex LC |
| Warranty: | 3 Years | Application: | FTTX |
| High Light: | 120km SMF SFP+ Transceiver Module,FTTX SFP+ Transceiver Module,LC DOM Fiber Optical Transceiver |
||
Product Description
Fiber Optical 10G 1550nm 120km SFP+ Transceiver Module Duplex LC DOM
Features:
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
Power Supply :+3.3V
Power consumption<1.8W
Temperature Range: 0~ 70°C
Application:
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channel

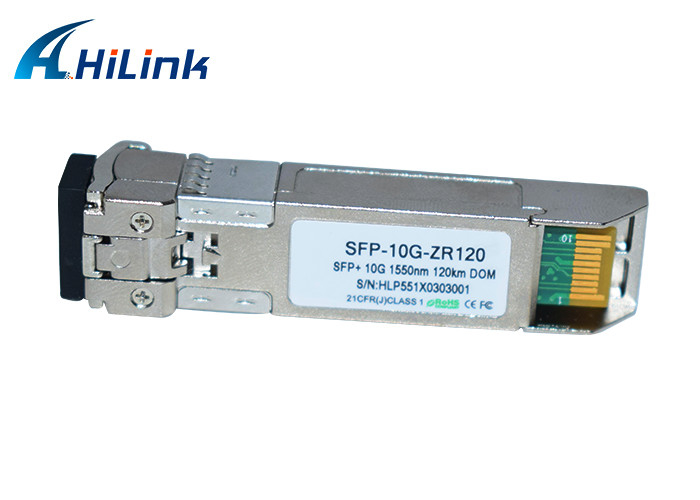

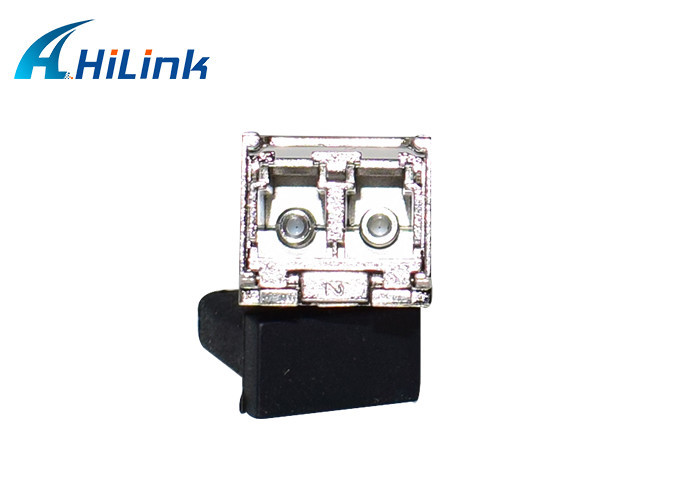

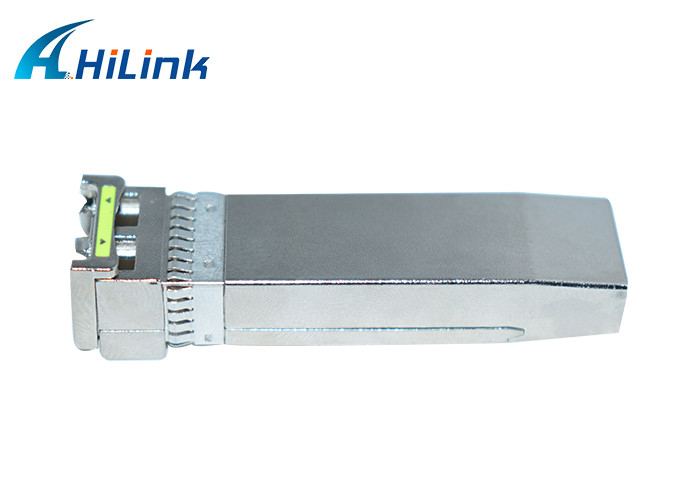

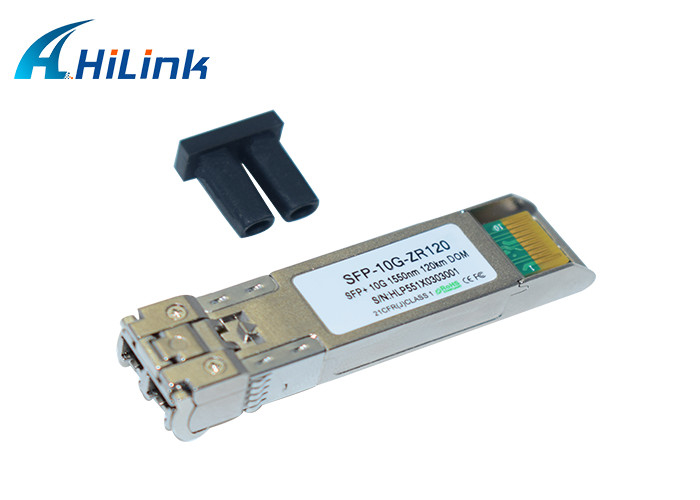

Product Show:
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λt | 1530 | 1550 | 1565 | nm | |
| spectral width | △λ | 0.3 | nm | |||
| Average Optical Power | Pavg | 0 | +5 | dBm | 1 | |
| Optical Power OMA | Poma | -2.1 | dBm | |||
| Laser Off Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | |||
| Transmitter Dispersion Penalty | TDP | 3.0 | dB | 2 | ||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
| Optical Return Loss Tolerance | 21 | dB | ||||
| Receiver Section: | ||||||
| Center Wavelength | λr | 1260 | 1600 | nm | ||
| Receiver Sensitivity | Sen | -24 | dBm | 4 | ||
| Los Assert | LOSA | -34 | - | dBm | ||
| Los Dessert | LOSD | -24 | dBm | |||
| Los Hysteresis | LOSH | 0.5 | dB | |||
| Overload | Sat | -7 | dBm | 5 | ||
| Receiver Reflectance | Rrx | -26 | dB | |||
Mechanical Dimensions
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP2, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
