400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density

400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density

400Gb/s Optical Transceiver Module

Pluggable Optical Transceiver Module

double density 400G optical module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-400G QSFP-DD

Contact Us
Request A Quote
400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density
400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density 400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density 400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density 400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density 400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density 400Gb/S Optical Transceiver Module Quad Small Form Factor Pluggable Double Density
Product Details
Product Name:
400GBASE-DR4 QSFP-DD
Data Transfer Rate:
400G
Distance:
500M
Wavelength:
1310NM
Connector:
MPO
Certificates:
CE RoHS FCC
Modulation Format:
PAM4
Warranty:
3 Years
OEM:
Can Be Customized
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal package or OEM.
Delivery Time
5-8 Working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
3000PCS/MONTH
RELATED PRODUCTS
Good price 400G QSFP-DD ZR Coherent Transceiver 0-75℃ online

400G QSFP-DD ZR Coherent Transceiver 0-75℃

Get Best Price
Good price QSFP-DD 400G 1310nm ER4 40km on SMF Duplex LC Fiber Optic Transceiver online

QSFP-DD 400G 1310nm ER4 40km on SMF Duplex LC Fiber Optic Transceiver

Get Best Price
Good price Hilink 25G SFP28 Optical Module with 3.3V Power Supply for 25GBASE-LR Ethernet in Commercial Temperature Range online

Hilink 25G SFP28 Optical Module with 3.3V Power Supply for 25GBASE-LR Ethernet in Commercial Temperature Range

Get Best Price
Good price Hilink 25G SFP28 Optical Transceiver with 100M Distance 3 Years Warranty and CE RoHs Certified online

Hilink 25G SFP28 Optical Transceiver with 100M Distance 3 Years Warranty and CE RoHs Certified

Get Best Price
Contact Us
Contact Now
Product Description

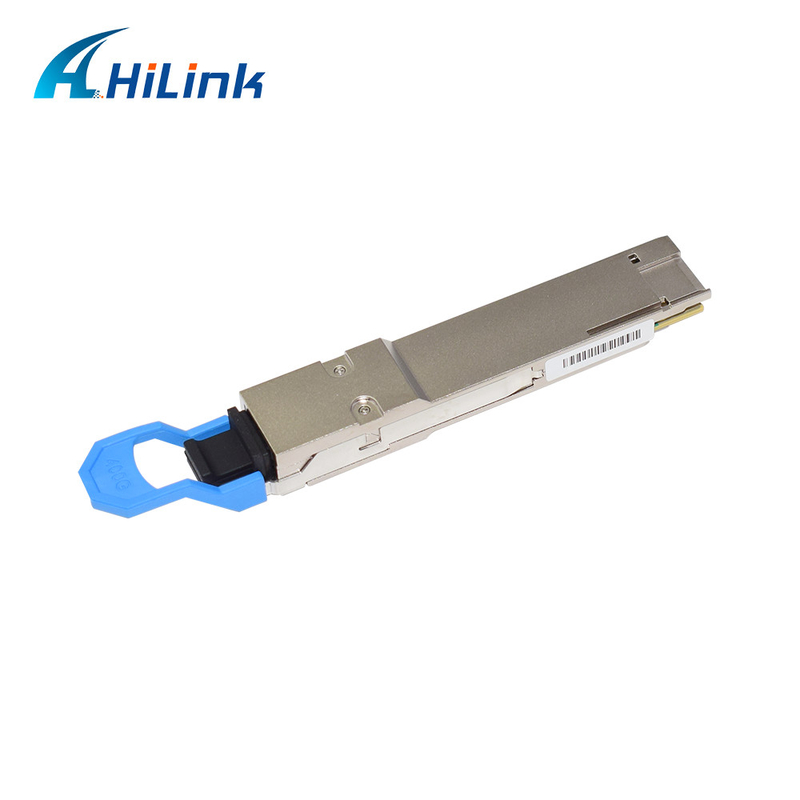

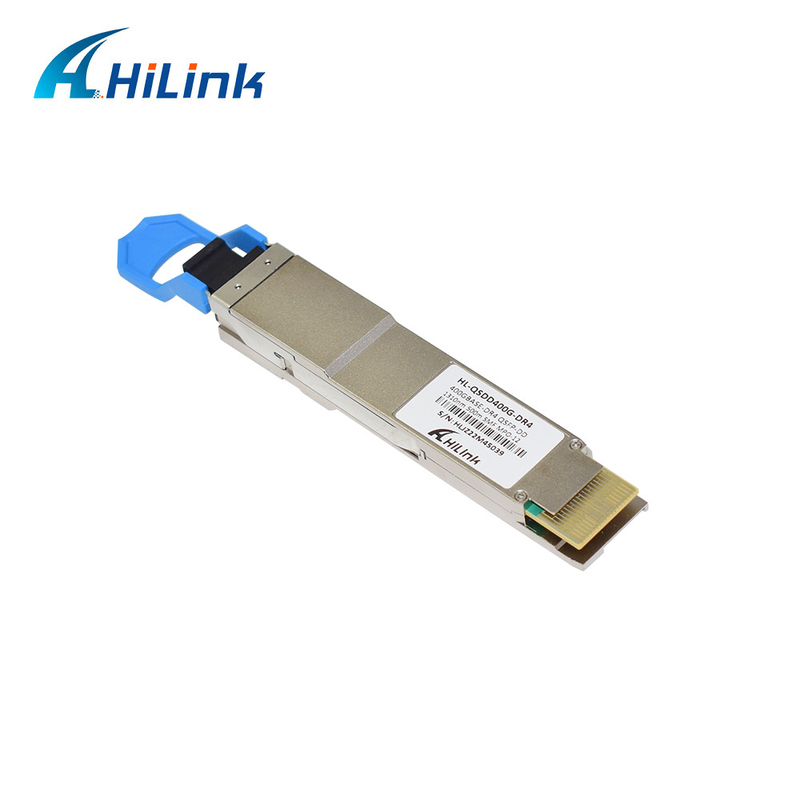

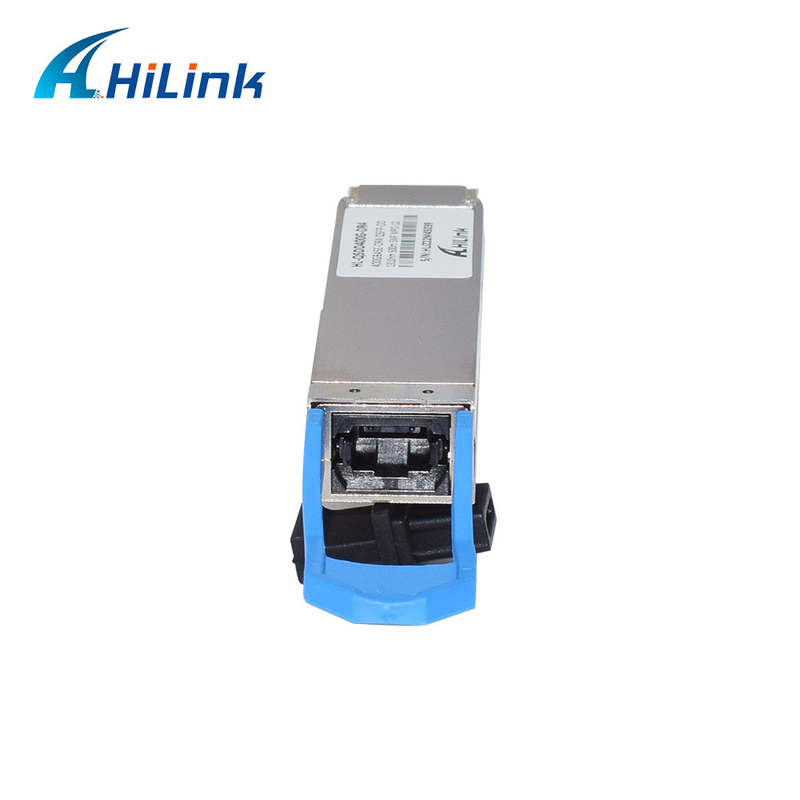

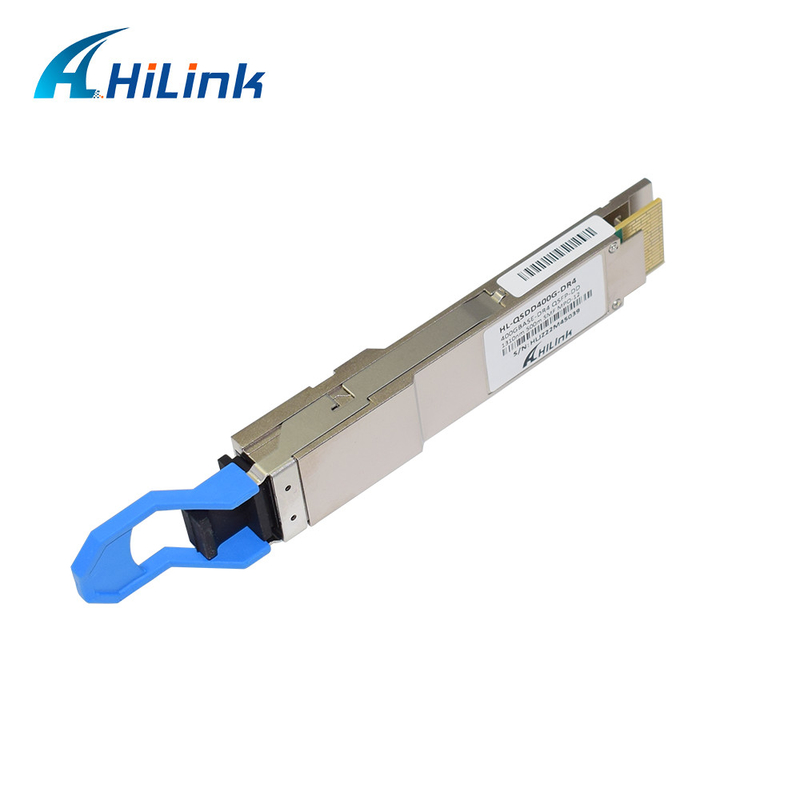

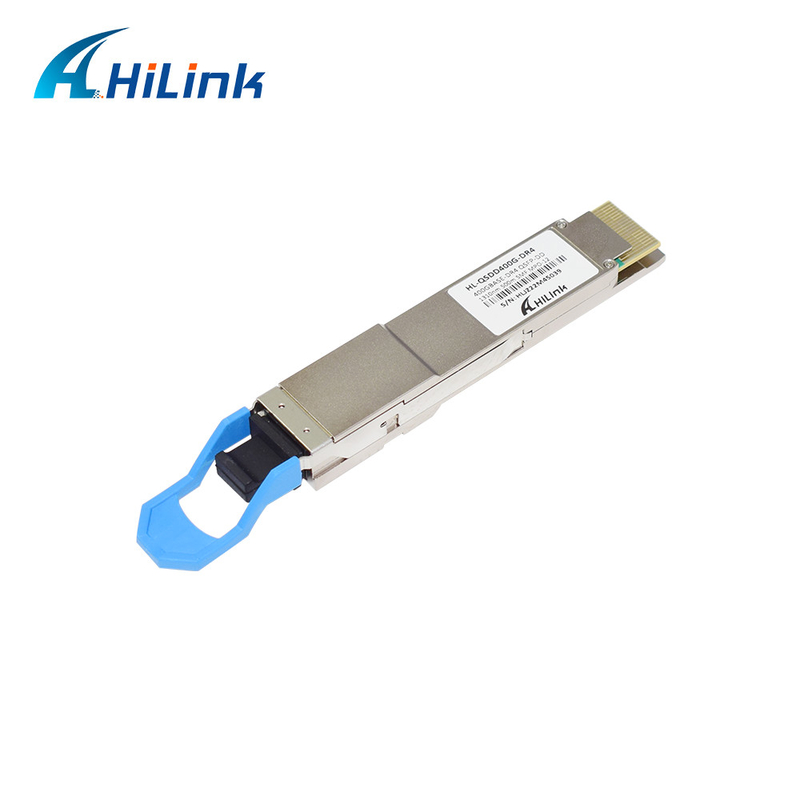

400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module



QSFP-DD 400GBASE-DR4 silicon photonics transceiver is based on a new state-of-the-art silicon photonics (SiPh) platform. It uses SiPh chips that integrate a number of active and passive optoelectronic components, 3D packaging technology and industry-leading 7nm DSP chips. It is a cost-effective and lower power consumption solution for 400GBASE data center.
The 400GBASE-DR4 silicon photonics module supports link lengths of up to 500m SMF with MTP/MPO-12 connector. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.



Applications

400G Ethernet
Infinib interconnects
Datacenter Enterprise networking
