400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP

400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DP4CNH-N00

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Get Best Price Contact Now

Detail Information

Data Rate: 400GBASE Ethernet Distance: 500M
Wavelength: 1310nm Connector: MPO-12 Connector
Package: QSFPDD 400G CE CC RoHS: Support
High Light:

SMF SFP Optical Transceiver Module

,

MPO12 Optical Transceiver Module

,

MPO12 Connector SFP optical module

Product Description


New Arrival HL-DP4CNH-N00 400G QSFPDD DR4 1310nm 500M MPO-12 Connector


GENERAL

          This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP DD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

          An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP DD DR4 module receptacle. Proper alignment is ensured by the

guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant

edge type connector.


PRODUCT FEATURES

QSFP-DD MSA compliant

4 parallel lanes

Compliant to IEEE 802.3bs Specification

IEEE 802.3bs 400GBASE-DR4 Specification Compliant

Up to 500m transmission on single mode fiber(SMF) with FEC

Operating case temperature: 0 to 70℃

8x53.125Gb/s electrical interface (400GAUI-8)

Data Rate 106.25Gbps (PAM4) per channel.

Maximum power consumption 12W

MPO-12 connector

RoHS Compliant


APPLICATIONS
400GBASE-SR8 Ethernet Links
Telecom networking
Data centers Interconnect
Enterprise networking

RELATED PRODUCT
QSFP28-100G-SR4 100GBASE-SR4 850nm 100M LC
QSFP28-100G-LR4 100GBASE-LR4 1310nm 10KM LC
QSFP28-100G-ER4 100GBASE-ER 1310nm 40KM LC
QSFP28-100G-ZR4 100GBASE-ZR 1310nm 80KM LC

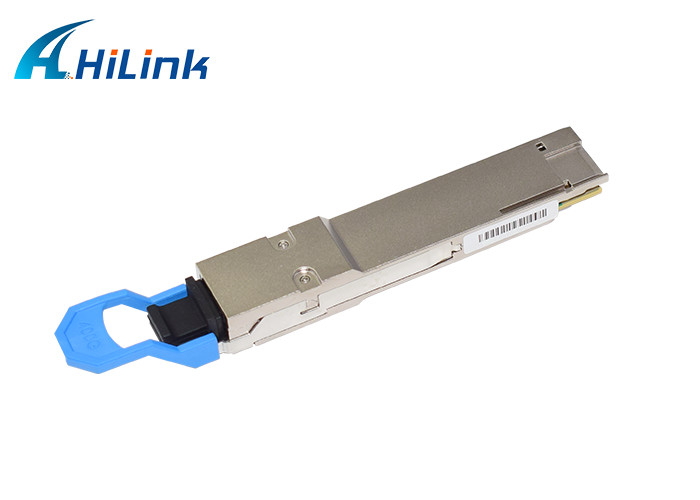

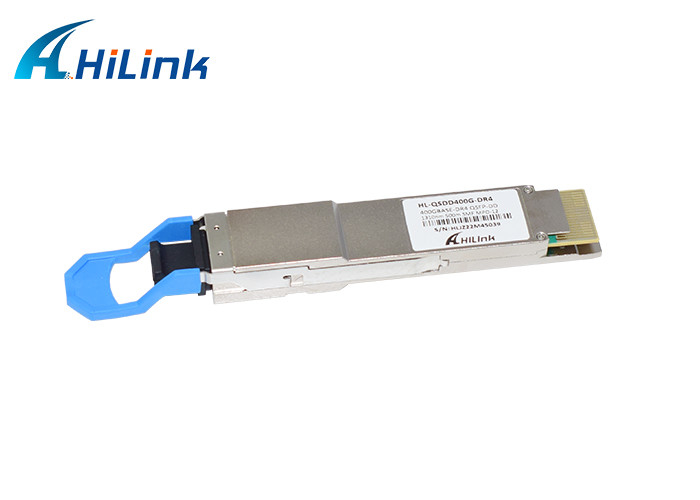

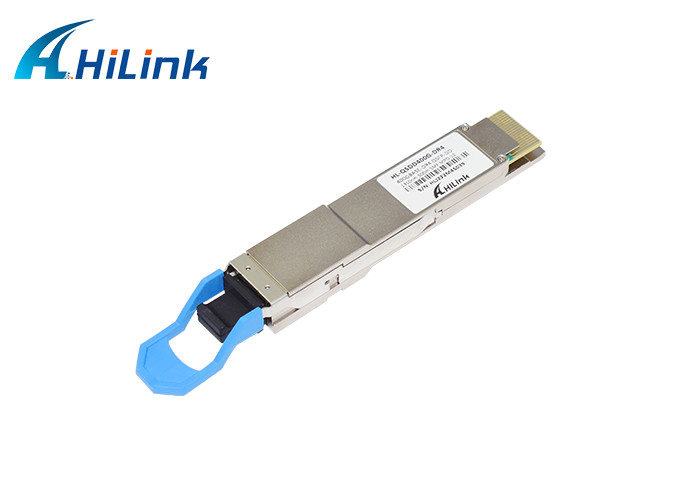

PRODUCT PICTURE SHOW

400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP 0400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP 1400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP 2

MECHANICAL DRAWINGS





COMPANY INFORMATION

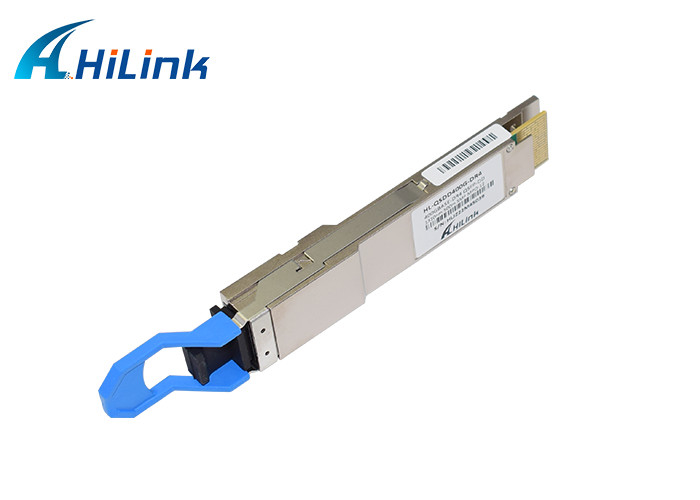

400G QSFPDD DR4 Optical Transceiver Module MPO12 Connector SMF 8x50Gb/S SFP 3

FAQ

Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.





As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
