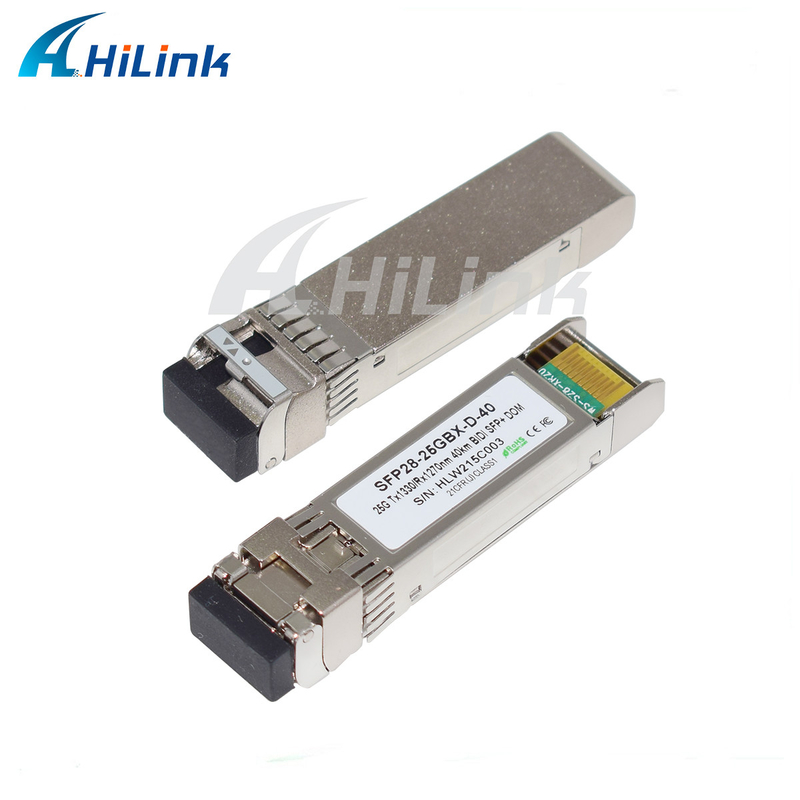

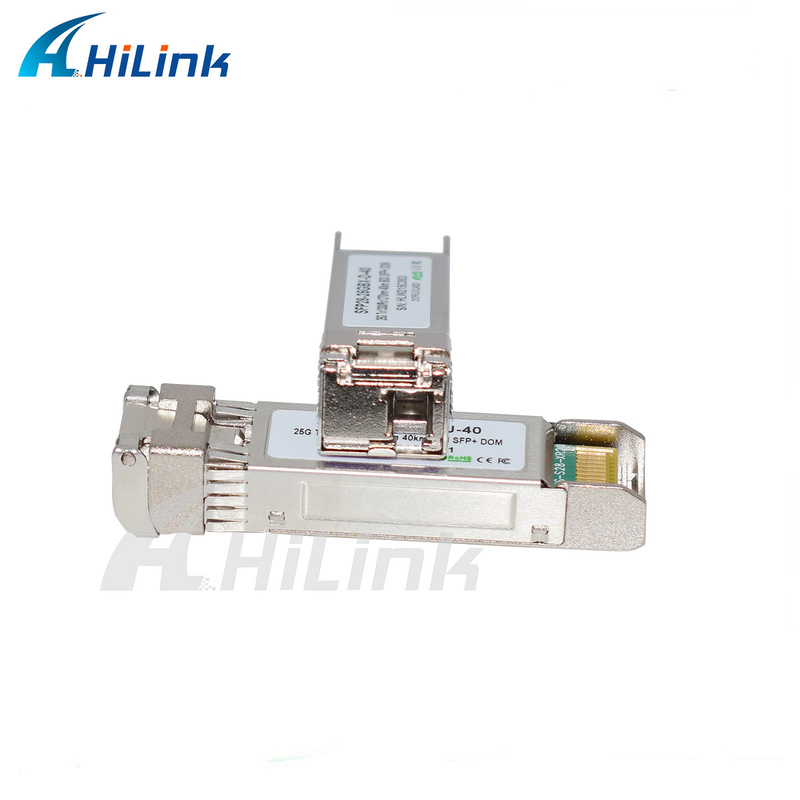

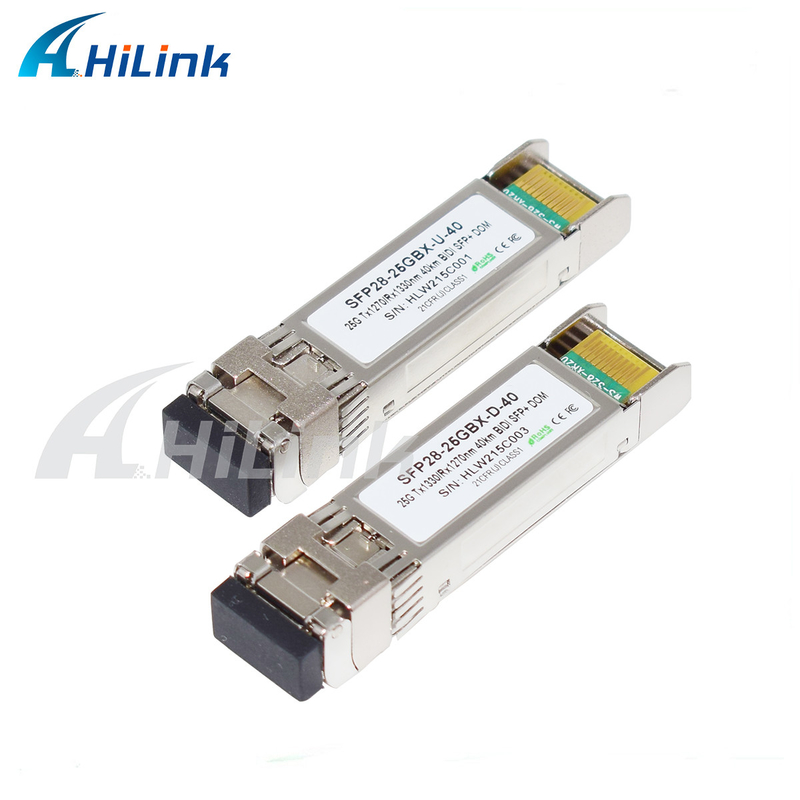

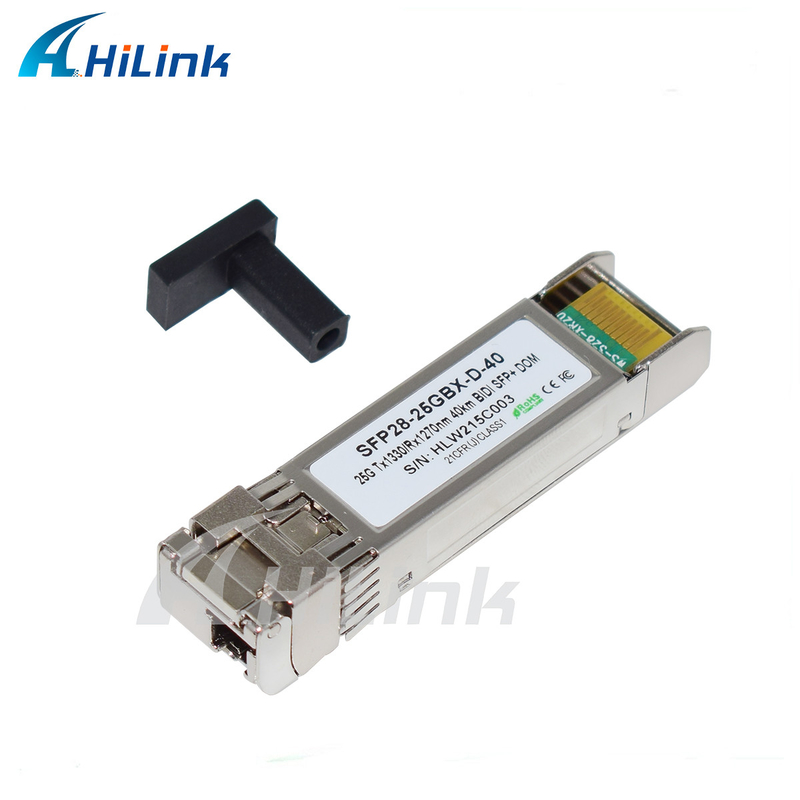

WDM 25G SFP28 Transceiver 1270nm 1330nm 40KM BIDI SMF Transceiver

Product Description

25G WDM 1270/1330nm 40KM SFP28 Bi-directional SFP28 SMF Transceiver

Hilink HL25G40x-xx Transceiver is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

Features

• Operating data rate up to 25.78Gbps

• Up to 40km transmission distance

• High sensitivity APD photodiode and TIA

• Rate Adaptation

• LC single connector

• Hot pluggable 20pin connector

• Low power consumption <1.5W

• Single +3.3V±5% power supply

• Compliant with SFF-8472

• Fully RoHS Compliant

• Case operating temperature:  Commercial: 0°C to +70°C   Industrial: -40°C to +85°C

Specifications


Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


Applications

• 25G Ethernet
• CPRI Option 10​


Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
