Product Description

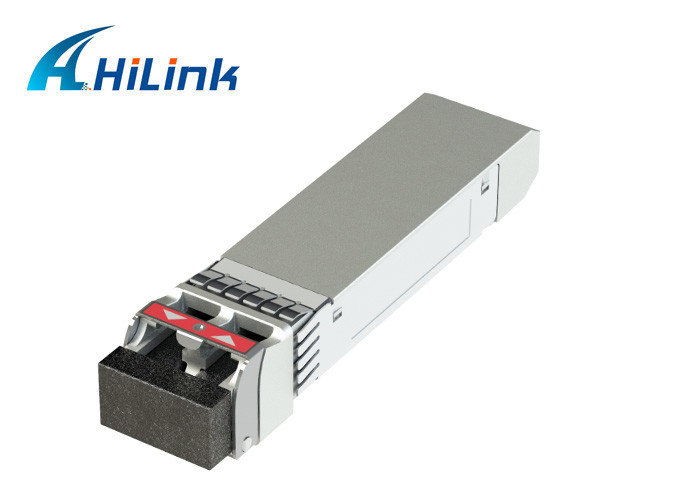

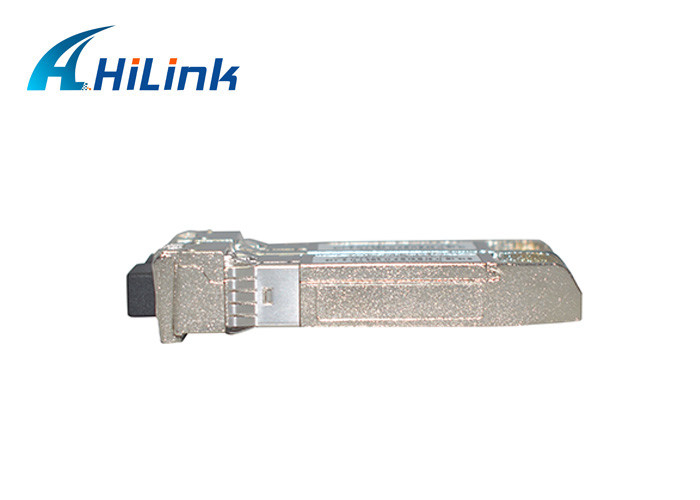

25G 100GHZ DWDM 10KM SFP28 EML+PIN CDR DDM Fiber Optic Transceiver

Hilink HL25G1xx-DXXx Transceiver is intended for 10km(PIN)&15km(APD) reach service from 24.33Gb/s to 25.78Gb/s DWDM D18~D61 single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a D18~D61 EML laser transmitter and PIN/APD receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Features

• Hot-pluggable SFP28 form factor
• Full-duplex
• Hot pluggable 20pin connector
• DWDM EML laser and PIN receiver

• Compliant with SFP28 MSA and CPRI/eCPRI

• Data rate up to 25Gbps

• Low power consumption:   Commercial <2W;   Industrial <2.3W
• Single +3.3V±5% power supply
• Compliant with SFF-8472
• Fully RoHS Compliant

•   Commercial: 0°C to +70°C

•   Industrial: -40°C to +85°C

Details

Optical Characteristics

Note1: Measured at 25.78125Gb/s, ER>=6dBm, PRBS 2³¹-1 and BER better than or equal to 5E-5;

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

Hilink Advantage

1. Hilink establish in 2007, specialize in optical telecommunication field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transciever modules are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optic equipment from the date of shipment.
5. All of our SFP & WDM products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
