LC Connector Optical Transceiver Module Generic Compatible 40GBASE-LR4 QSFP+ 1310nm 10km

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE Rohs
Model Number: 40G QSFP LR4 10KM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Need to negotiate
Packaging Details: Plastic box+Carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability: 2000 Pieces/Week
  • Detail Information
  • Product Description

Detail Information

Condition: Brand New Wavelength: 1310NM
Data Transfer Rate: 40Gbps Lead Time: 3-5 Working Days
Package Style: Plastic Box+Carton Connector Type: LC
High Light:

LC Connector Optical Transceiver Module

,

40GBASE-LR4 Optical Transceiver Module

,

40G QSFP+ Module 10km

Product Description

Generic Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Transceiver

Product Description

40G QSFP+ LR4 10KM product is a transceiver module designed for 2m-10km optical communication

applications. Optical Transceiver  design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

Features

· QSFP+ MSA compliant

· Compliant with QDR/DDR Infiniband data rates

· Up to 11.2Gb/s data rate per wavelength

· Operating case temperature: 0 to 70℃

· Maximum power consumption 2.5W

· LC duplex connector

· RoHS compliant



Applications

· 40GBASE-LR4 Ethernet Links

· Infiniband QDR and DDR interconnects

      Client-side 40G Telecom connections



Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter Test Point Min Typical Max Unit Notes
Power Consumption       2.5 W
Supply Current ICC     0.7 A
Transceiver Power-on Initialization Time       2000 ms 1
Transmitter (each Lane)
Single-ended Input Voltage Tolerance (Note 2)   -0.3   4.0 V Referred to TP1 signal common
AC Common Mode Input Voltage Tolerance   15     mV RMS
Differential Input Voltage Swing Threshold   50     mVpp LOSA Threshold
Differential Input Voltage Swing Vin,pp 190   700 mVpp
Differential Input Impedance Zin 90 100 110 ohm
Differential Input Return Loss   See IEEE 802.3ba 86A.4.11 dB 10MHz- 11.1GHz
J2 Jitter Tolerance Jt2 0.17     UI
J9 Jitter Tolerance Jt9 0.29     UI
Data Dependent Pulse Width Shrinkage (DDPWS ) Tolerance   0.07     UI
Eye Mask Coordinates {X1, X2, Y1, Y2}

0.11, 0.31

95, 350

UI

mV

Hit Ratio = 5x10-5
Receiver (each Lane)
Single-ended Output Voltage   -0.3   4.0 V Referred to signal common
AC Common Mode Output Voltage       7.5 mV RMS
Differential Output Voltage Swing Vout,pp 300   850 mVpp
Differential Output Impedance Zout 90 100 110 ohm
Termination Mismatch at 1MHz       5 %
Differential Output Return Loss   See IEEE 802.3ba 86A.4.2.1 dB 10MHz- 11.1GHz
Common Mode Output Return Loss   See IEEE 802.3ba 86A.4.2.2 dB 10MHz- 11.1GHz
Output Transition Time   28     Ps 20% to 80%
J2 Jitter Output Jo2     0.42 UI
J9 Jitter Output Jo9     0.65 UI
Eye Mask Coordinates {X1, X2, Y1, Y2}   0.29, 0.5, 150, 425

UI

mV

Hit Ratio = 5x10-5

Notes:

1. Power-on Initialization Time is the time from when the power supply voltages reach and remain above the minimum recommended operating supply voltages to the time when the module is fully functional.

2. The single ended input voltage tolerance is the allowable range of the instantaneous input signals.

LC Connector Optical Transceiver Module Generic Compatible 40GBASE-LR4 QSFP+ 1310nm 10km 0





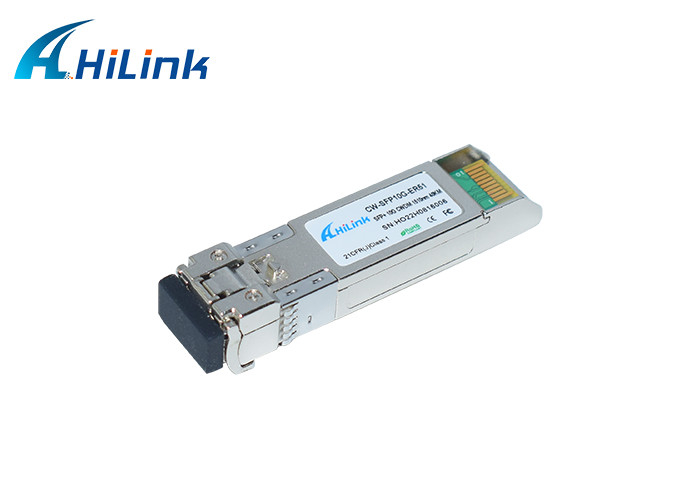

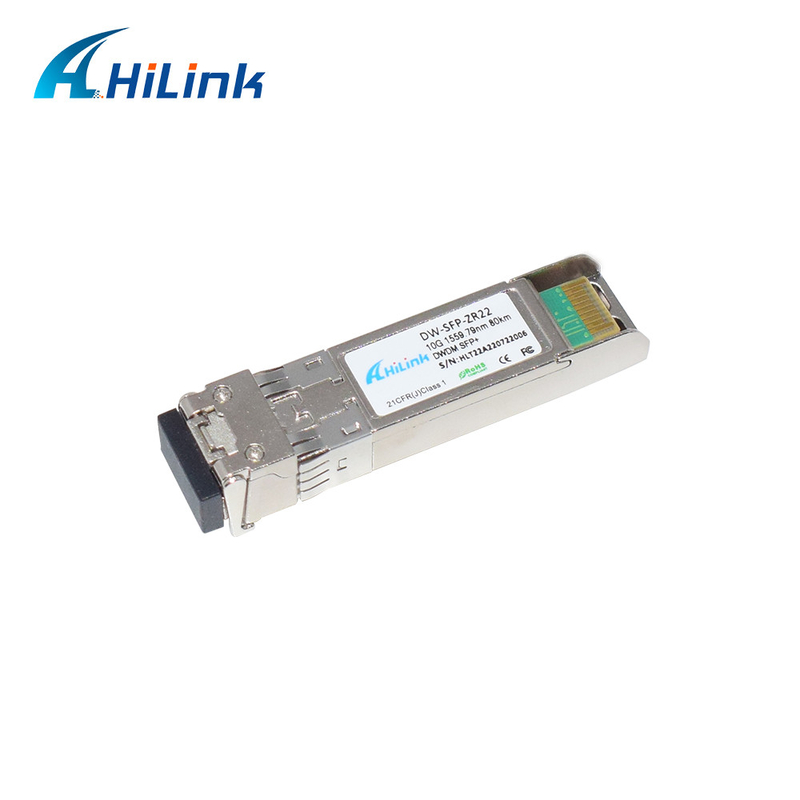

Real Picture
