ER 10G SFP+ Transceiver 40KM CWDM 1470-1610NM LC Connector Communication Equipment

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: 10G SFP+ CWDM 40KM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Need to negotiate
Packaging Details: Plastic box+Carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability: 2000 Pieces/Week
  • Detail Information
  • Product Description

Detail Information

Condition: Brand New Wavelength: 1470-1610
Data Transfer Rate: 10Gbps Lead Time: 2-4 Working Days
DDM Function: Accept OEM/ODM: Yes
High Light:

ER 10G SFP+ Transceiver

,

10G SFP+ Transceiver 40KM

,

Communication Equipment 10G SFP+ Module

Product Description

10G SFP+ ER 40KM CWDM 1470-1610NM LC Connector Communication Equipment

HLSCxx1XL-CD40 CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.



Product Description

Features

Supports 9.95 to 11.3Gb/s bit rates

Duplex LC connector

Hot pluggable SFP+ footprint

Cooled 1470nm~1610nm EML transmitter, PIN photo-detector

Applicable for 40km SMF connection

Low power consumption, < 1.2W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-ER



Applications

10GBASE-ER at 10.3125Gbps

10G Ethernet

Other optical links



Digital Diagnostic Specifications



The Hilink 10G SFP+ CWDM ER 40KM  transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Parameter Symbol Units Min. Max. Accuracy Note
Transceiver temperature DTemp-E ºC -45 +90 ±5ºC 1,2
Transceiver supply voltage DVoltage V 2.8 4.0 ±3%
Transmitter bias current DBias mA 0 127 ±10% 3
Transmitter output power DTx-Power dBm -2 +3 ±2dB
Receiver average input power DRx-Power dBm -20 +1 ±2dB



Notes:

1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75

2. Internally measured

3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser

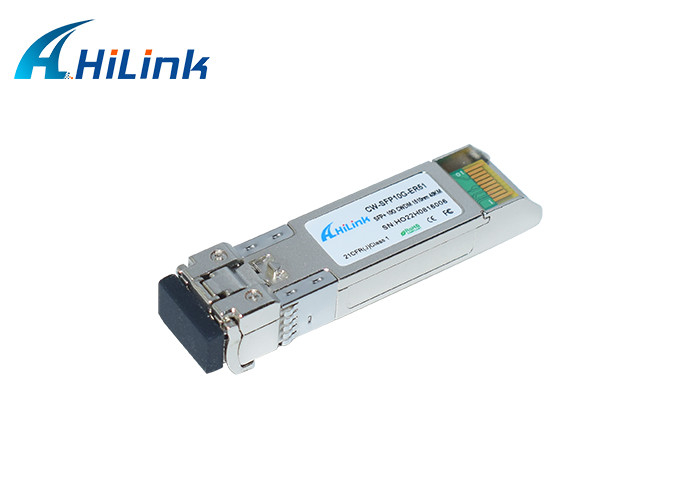

Real Picture

ER 10G SFP+ Transceiver 40KM CWDM 1470-1610NM LC Connector Communication Equipment 0



Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton
Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.



Our Service

More than 14 years Fiber Optic Module Manufacture

1 To 1 Customer Service

Attractive Price

High Quality
