Shenzhen HiLink Technology Co.,Ltd.

Hilink 2.5G SFP Transceiver RJ45 Copper 100M SFP Fiber Module

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: 2.5G SFP T Copper 100M
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Need to negotiate
Packaging Details: Plastic box+Carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability: 2000 Pieces/Week
  • Detail Information
  • Product Description

Detail Information

Condition: Brand New Distance: 100M
Data Transfer Rate: 2.5G Warranty: 3 Years
Material: Brand New Shipping Way: UPS/DHL/Fedex
High Light:

Hilink 2.5G SFP Transceiver

,

RJ45 Copper 2.5G SFP Transceiver

,

100M SFP Fiber Module

Product Description

Hilink 3 Years Guarantee 2.5G SFP RJ45 Copper 100M SFP Fiber Module

SFP-2.5GBASE-T-A Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 2.5Gbase-T / 1000base-T/100base-T standards as specified in IEEE Std 802.3 . SFP-2.5GBASE-T-A uses the SFP's RX_LOS(must be pulled up on host) pin for link indication



Product Description

Features

  • Support 2.5Gbase-T / 1000base-T/ 100base-T on line port
  • Support 2.5Gbase-X on host port
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 2.5 Gigabit Ethernet over Cat 5 cable
  • Ambient Operating temperature: 0°C to +70°C
  • Power dissipation <2W

Digital Diagnostic Specifications

All high-speed signals are AC-coupled internally.



High-Speed Electrical Interface, Transmission Line-SFP
Parameter Symbol Min Typ Max unit Notes/Conditions
Tx Output Idmpeance Zout,TX   100   Ohm

Differential, for all

frequencies between

1MHz and 125MHz

Rx Input Impedance Zin,RX   100   Ohm

Differential, for all

frequencies between

1MHz and 125MHz



High-Speed Electrical Interface, Host-SFP
Parameter Symbol Min Typ Max unit Notes/Conditions

Differential data input

swing

Vinsing 125   750

mV



Single ended

Differential data output

swing

Voutsing 400   750 mV Single ended
Rise/Fall Time Tr,Tf 30     psec 20%-80%
Tx Input Impedance Zin   100   Ohm Differential
Rx Output Impedance Zout   100   Ohm Differential

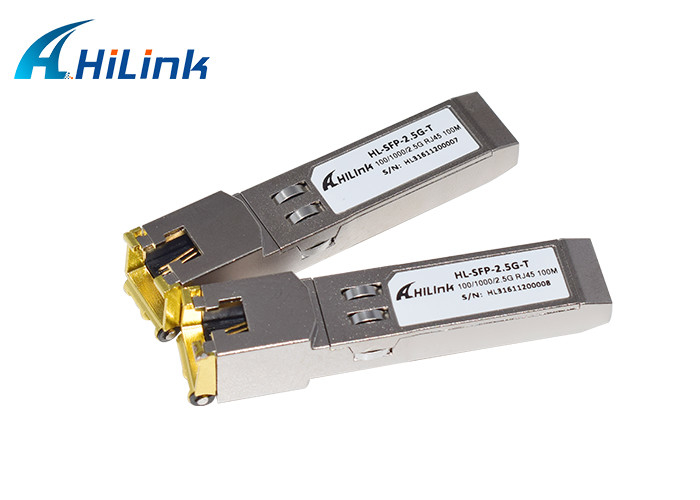

Real Picture



Hilink 2.5G SFP Transceiver RJ45 Copper 100M SFP Fiber Module 0

Warranty

We promise all the advertised optical transceivers are brand new with new components and parts.

We absolutely never use old and refurbished materials.

All the optical transceivers have been through functional test and aging test.

We provide 3 years warranty for all the optical transceivers from the date of shipment.Shipment



FAQ

1. Can I have a sample order? What is your MOQ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable, We do not have MOQ, even 1pc sample order is available.


2. What is the lead time?
For usual products. We keep stock, could ship 1-3 days after receiving payment. For big quantity and special products. Please check lead time with our sales representative.


3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

4. What is your payment terms?
Usually, our payment term: T/T, West Union or Paypal.



5. What is your warranty time
3 yearswarranty for all products shipped from us.



6. How to place an order?
Please send your inquires to sales or call our sales hotline: +86-159 1717 4650 Our sales representative will contact you within 24 hours.



7. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.
