Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-SFP28-LR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Product Name: | 25G SFP28 Transceiver LR | Data Rate: | 25Gbs |
|---|---|---|---|
| Distance: | 10KM | Package: | SFP28 |
| Transmitter: | DFB | Receiver: | PIN |
| Connector: | Duplex LC | Warranty: | 3 Years |
| High Light: | Duplex DDM Ethernet SFP Transceiver,25G SFP28 Optical Transceiver Module,LR 1310nm Optical Transceiver Module |
||
Product Description

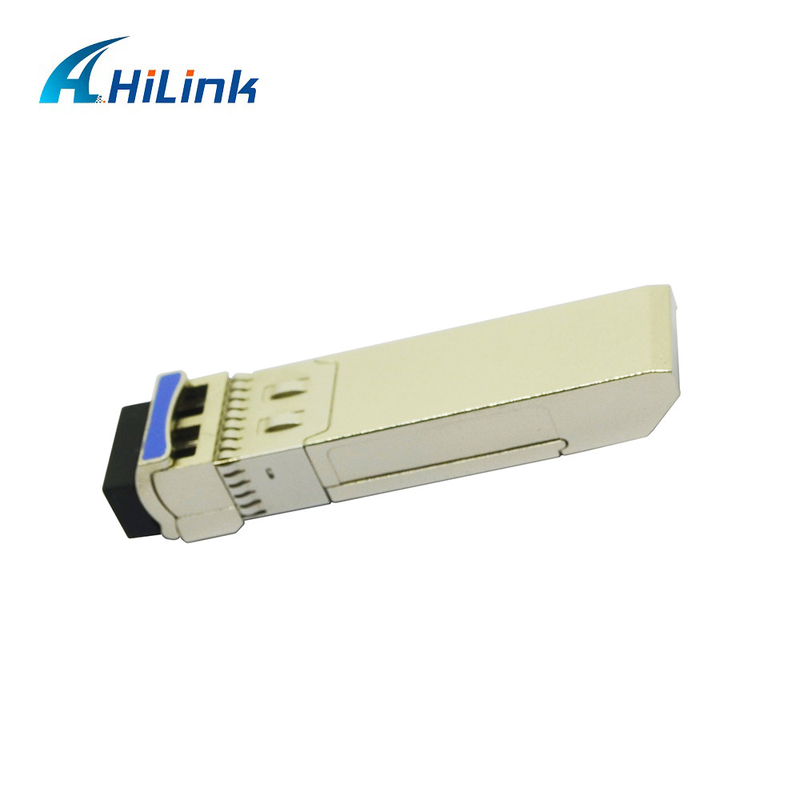

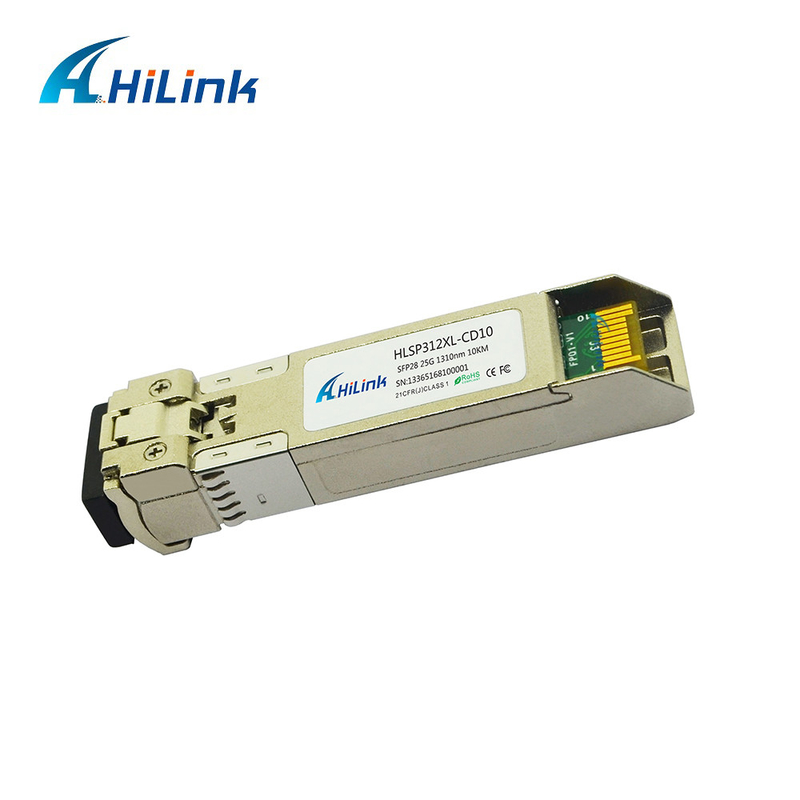

25G SFP28 LR 1310nm 10KM SMF LC Duplex DDM Ethernet SFP Transceiver
Hilink 25G SFP28 LR 10km optical transceivers are designed for 25GBASE-LR SFP28 Ethernet and CPRI/eCPRI links ,reach up to 20km over Single-Mode Fiber (SMF).
Features
Hot-pluggable SFP28 form factor
Full-duplex transceiver module
DFB laser and PIN receiver
Compliant with SFP28 MSA and CPRI/eCPRI
Data rate up to 25Gbps
Reach up to 20km on SMF
Low power consumption < 1.5W
Dual LC receptacles
Operating case temperature range: 0°C to +70°C
Single 3.3V power supply
RoHS compliant (lead free)
Specifications
| Item No. | HL-SFP28-LR | Vendor Name | Hilink |
| Form Type | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | 1310nm | Max Cable Distance | 20KM |
| Interface | LC duplex | Optical Components | DFB + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
eCPRI
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
