Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSFP-SR4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Product Name: | 40G QSFP+ SR4 | Data Rate: | 40Gbs |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100M |
| Package: | QSFP+ | Transmitter: | Vcsel |
| Receiver: | PIN | Connector: | MPO/PC (8-strand Or 12-strand, Type B, Female Connector) |
| High Light: | MPO DDM Optical Transceiver Module,40Gbs Optical Transceiver Module,Reach OM3 Optical Transceiver Module |
||
Product Description
40G QSFP+ SR4 850nm MMF 100M Reach OM3 MPO DDM Optical Transceiver Module
Hilink HL-QSFP-40G-SR4 adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters.
Features
QSFP+ MSA, SFF-8436 compatible
MPO Connector
Distance up to 150m over OM4 Fiber
VCSEL array transmitter and PIN array receiver
Electrically Hot-pluggable
Single 3.3V Power Supply
Power Dissipation< 1.5W
Digital Diagnostics Monitoring Interface
Operating Case Temperature: 0-70℃
Specifications
| Item No. | HL-QSFP-SR4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Cable Distance | 150M |
| Interface | MPO | Optical Components | VCSEL+ PIN |
| Cable Type | MMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Transmit Power (dBm) | -7.6 to +2.4 |
| Maximum Reciver Sensitivity (dBm) |
-5.4 |
| Overload Power (dBm) | 2.4 |
| Extinction Ratio (dB) | 3.0 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
Server-Server Clusters, Super-computing interconnections
40G Applications backplane
InfiniBand SDR, DDR and QDR applications

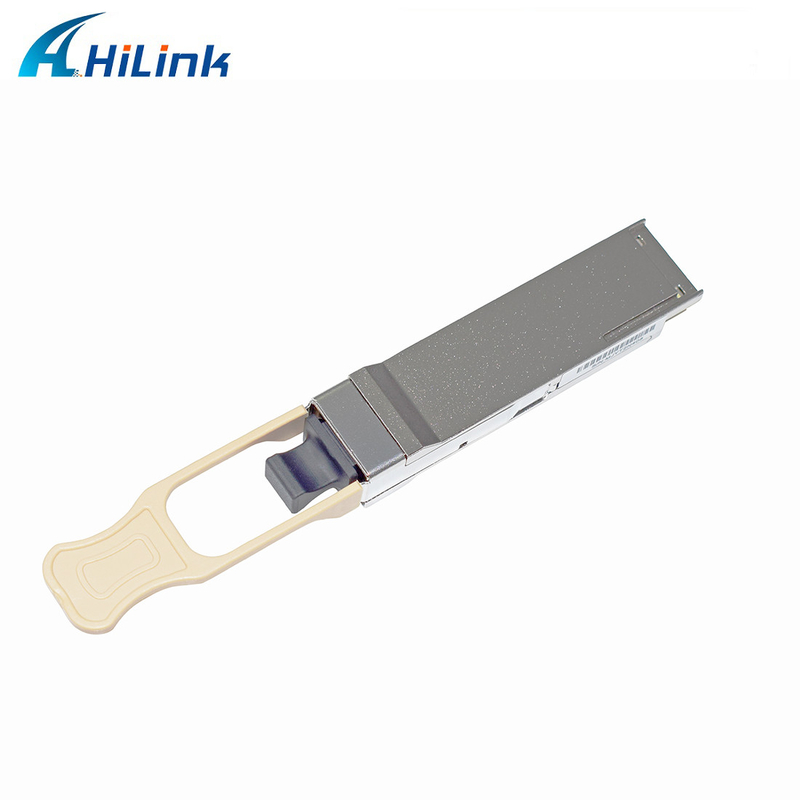

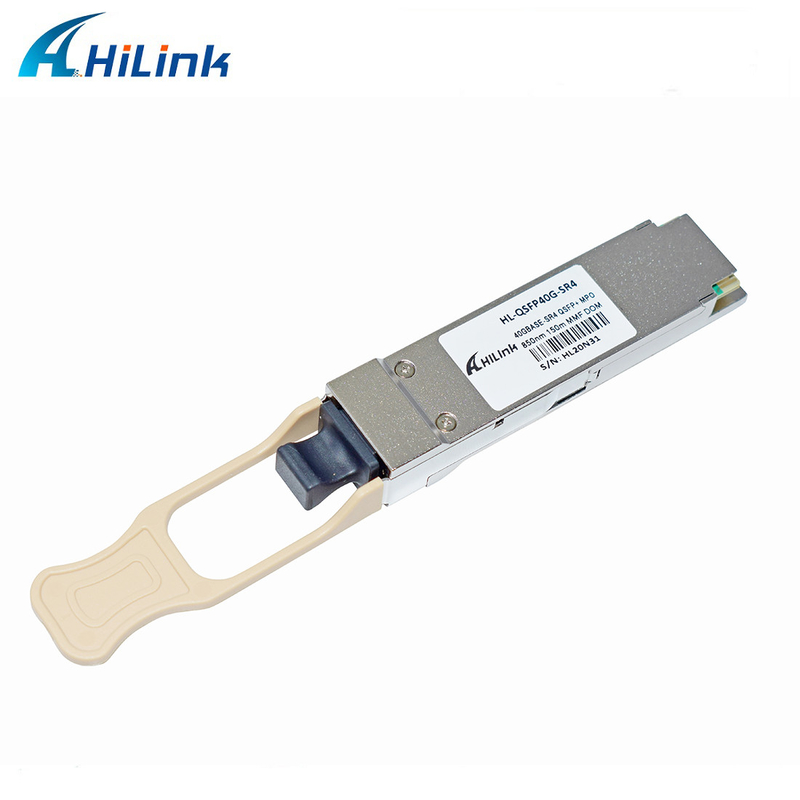

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
