| Product Name: | 40G QSFP+ SWDM4 Module | Package: | QSFP+ |
|---|---|---|---|
| Data Rate: | 40Gbs | Wavelength: | 850-940nm |
| Channels: | 4 Channels | Distance: | 240M OM3, 350M OM4 |
| Transmitter: | Vcsel-based SWDM | Connector: | Duplex LC |
| High Light: | LC Connector Optical Module,MMF 240M Optical Transceiver Module,40G OM3 Optical Transceiver Module |
||
Product Description

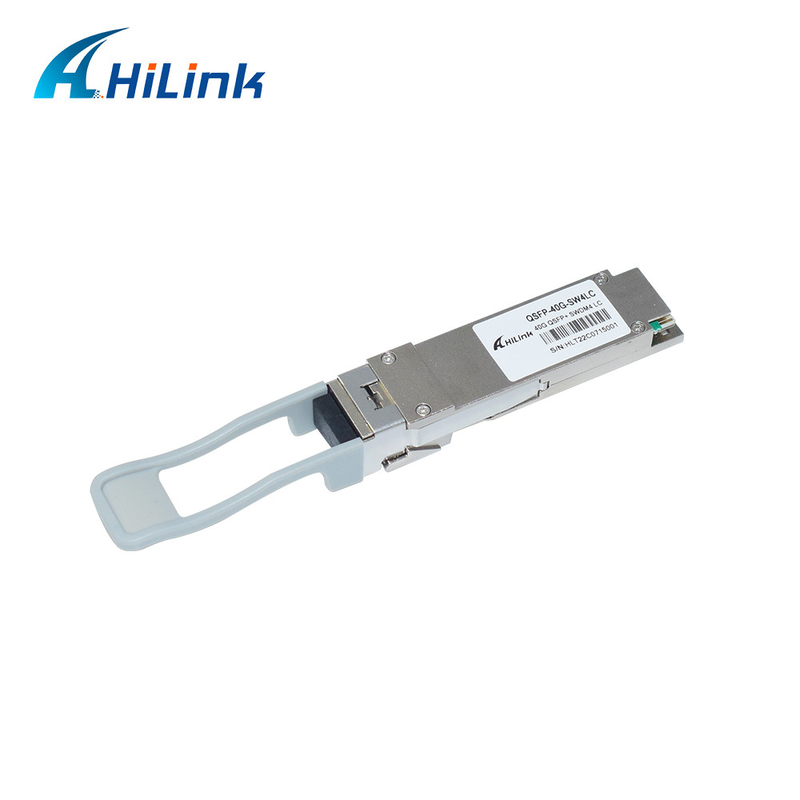

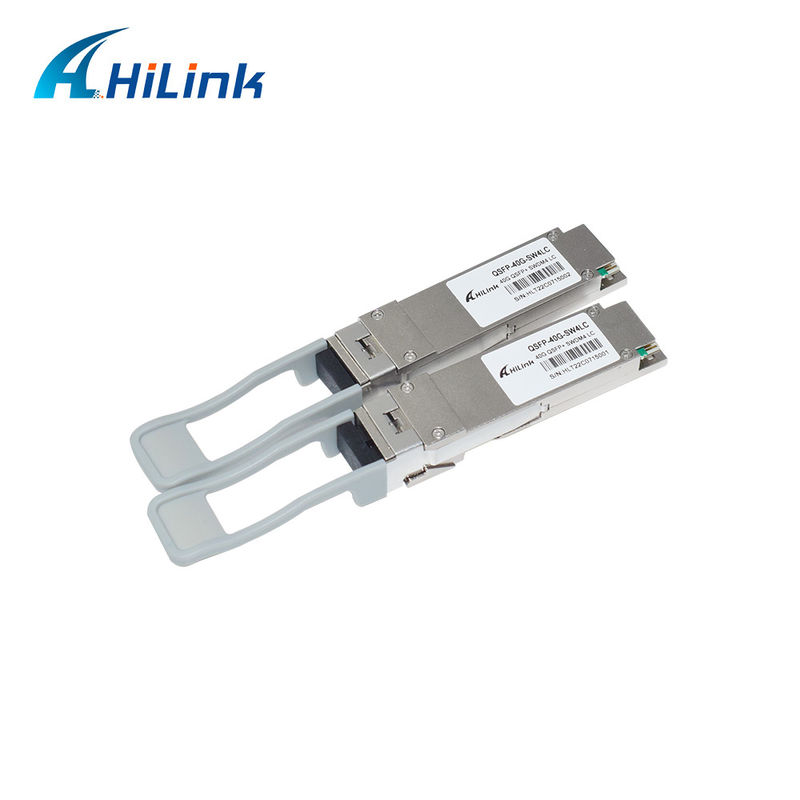

40G QSFP+ SWDM4 850-940nm MMF 240M OM3 LC Connector Optical Module
Hilink 40G QSFP+ SWDM4 transceiver modules are designed for use intransceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.
Features
Specifications
| Item No. | HL-QSFP-SWDM4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850-940nm | Max Cable Distance | 350M |
| Interface | LC Duplex | Optical Components | VCSEL |
| Cable Type | MMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Transmitter Parameter | Lane | Min | Typical | Max | Unit | Note |
| Signaling rate, each lane | 10.3125 , 9.953±100ppm | Gb/s | ||||
|
Lane Wavelength Range |
Lane0 Lane1 Lane2 Lane3 |
844 874 904 934 |
858 888 918 948 |
nm |
||
| Difference in launch power between any two lanes | 4.5 | dBm | ||||
| RMS Spectral width @850nm @880nm,910nm,940nm |
Lane0 Lane1,2,3 |
0.53 0.59 |
nm |
|||
| Optical Modulation Amplitude (OMA), each lane | -5.5 | 3 | dBm | |||
| Average Launch power per Lane | -7.5 | 3 | dBm | |||
|
Launch Power Tx OMA-TDP |
Lane0 Lane1 Lane2 Lane3 |
-6.4 -6.0 -6.5 -7.0 |
dBm |
|||
|
Transmitter and Dispersion Eye Closure |
Lane0 Lane1 Lane2 Lane3 |
3.7 4.0 4.5 5.0 |
dB |
|||
| Extinction Ratio | 2 | dB | ||||
| Optical Return Loss Tolerance | 12 | dB | ||||
| Average Launch Power per Lane @ TX Off State | -30 | dBm | ||||
| Encircled Flux |
>=86% at 19um <=30% at 4.5um |
|||||
|
Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} Hit ratio 5x10-5 hits per sample |
{0.23,0.34,0.43,0.27,0.35,0.4} |
|||||
| Receiver Parameter | Lane | Min | Typical | Max | Unit | Note |
| Signaling rate, each lane | 10.3125 , 9.953±100ppm | Gb/s | ||||
|
Lane Wavelength Range |
Lane0 | 844 | 858 |
nm |
||
| Lane1 | 874 | 888 | ||||
| Lane2 | 904 | 918 | ||||
| Lane3 | 934 | 948 | ||||
| Damage threshold, each lane | 3.8 | dBm | ||||
|
Average Receive Power, each lane |
-12.9 -12.5 -12.2 -11.9 |
2.4 |
dBm |
|||
| Receiver Power, each lane (OMA) | 3 | dBm | ||||
| Receiver sensitivity OMA, per lane | -9.1 | dB | ||||
|
Difference in receive power between any two lanes(OMA) |
5 | dB | ||||
| RX_Los_Assert | -30 | dBm | ||||
| RX_Los_De-ASSERT | -13 | dBm | ||||
| RX_Los_Hysteresis | 0.5 | dBm | ||||
| Return reflectance | -12 | dB | ||||
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
