Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC RoHS |
| Model Number: | HL-QSFP28-SRBD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Data Rate: | 100G | Package: | QSFP28 |
|---|---|---|---|
| Power Supply: | 3.3V | Connector: | LC Duplex |
| Reach Distance: | 100M OM4, 70M OM3 | Wavelength: | 850nm/900nm |
| DDM: | Supported | Transmitter: | VCSEL |
| High Light: | SR Bidi PAM4 Optical Transceiver,Dual LC Optical Transceiver,MMF 100M Optical Transceiver |
||
Product Description
QSFP28 100G SR Bidi PAM4 2x50G 850nm/900nm MMF 100M Dual LC Optical Transceiver
Hilink QSFP28 BiDi SR is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 100 Gigabit Ethernet Applications.
This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface. Link distances up to 70m using OM3 and 100m using OM4 optical fiber are supported.
| Item No. | HL-QSFP28-SRBD | Vendor Name | Hilink |
| Form Type | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 850/900nm | Max Cable Distance | 100M |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | MMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps
Applications
100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

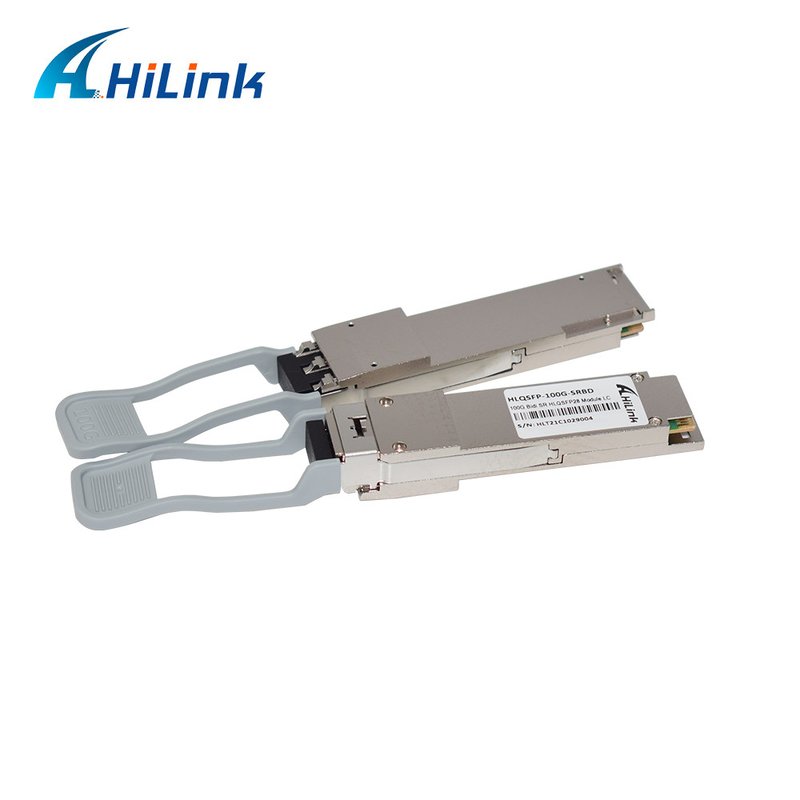

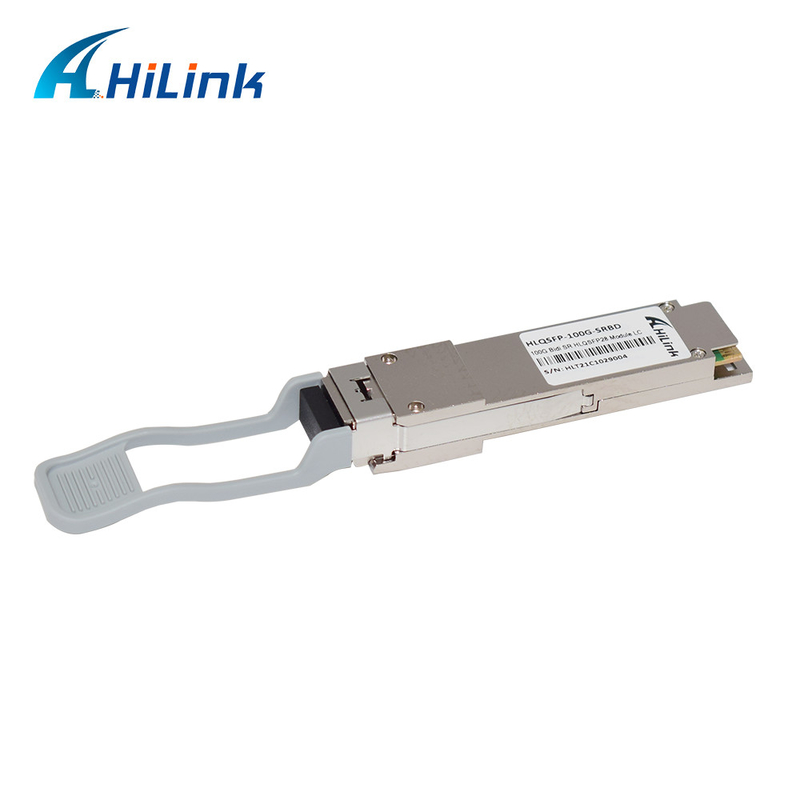

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
