Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE Rohs |
| Model Number: | 100G QSFP28 LR4 10KM COB |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pieces |
| Price: | Need to negotiate |
| Packaging Details: | Plastic box+Carton |
| Delivery Time: | 5-8 working day |
| Payment Terms: | T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance |
| Supply Ability: | 2000 Pieces/Week |
|
Detail Information |
|||
| Condition: | Brand New | Application: | 100G QSFP28 LR4 10KM COB |
|---|---|---|---|
| Connector Type:: | LC Connector | Distance: | 10km |
| Data Rate: | 100G | Wavelength: | 1310NM |
| High Light: | 1310NM Optical Transceiver Module,Unidirectional Compatible Optical Transceiver Module,LR4 10km Optical Transceiver Module |
||
Product Description
| Modle | HL-QSFP-100G-LR4 COB | Vendor Name | Hilink |
| Form Type | QSFP28 | Max Data Rate | 100G |
| Wavelength | 1310NM | Max Cable Distance | 10km |
| Interface | LC | Certificates | CE/Rohs |
| Product Name | 100G QSFP28 Transceiver | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 851779500 |
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard. 100G QSFP28 LR4 10KM converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 20km links and compliant to optical interface with 100GBASE-LR4 requirements specified in IEEE 802.3ba Clause 88.
Application
1.1 100GBASE-LR4 Ethernet Links
1.2 Infiniband QDR and DDR interconnects
1.3 Datacenter and Enterprise networking
1.1 Hot pluggable QSFP28 MSA form factor
1.2 Compliant to IEEE 802.3ba 100GBASE-LR4
1.3 Supports 103.1Gb/s aggregate bit rate
1.4 Up to 10km reach for G.652 SMF
1.5 Single +3.3V power supply
1.6 Operating case temperature: 0~70°C
1.7 Transmitter: cooled 4x25Gb/s LAN WDM DFB TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
1.8 Receiver: 4x25Gb/s PIN ROSA
1.9 4x25G electrical interface (OIF CEI-28G-VSR)
1.10 Maximum power consumption 4.0W
1.11 Duplex LC receptacle
RoHS-6 compliant

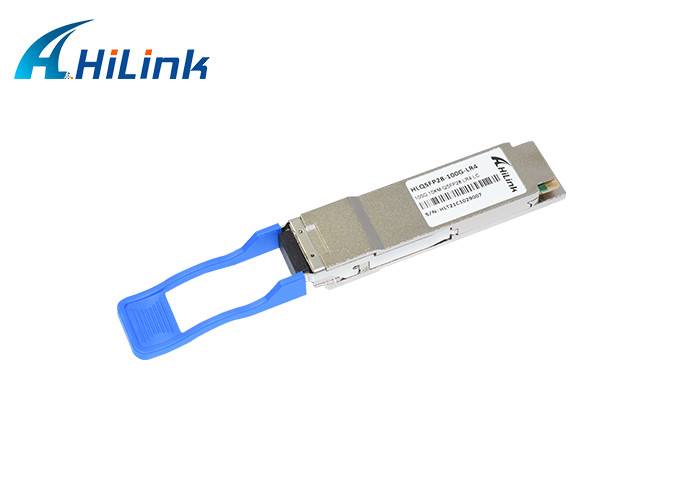

Real Picture
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
FAQ
Q: Do you provide samples? It is free or extra?
A: yes, we we provide sample, need to charge, if you have make bulk order next time, we will return sample fee.
Q: What is your MOQ and lead time?
A: MOQ 1 sample is avaliable.
Lead time, depends on the product quantity, actually sample lead time need1-3 days.
Q: What is yout term of payment?
A: We can accept T/T, Paypal,Wechat,.Alipay.other payment term, we can negotiate.
Q: Could i use our own logo and label?
A: Yes, we could provide OEM Service and make the products with your own label.
Hilink Advantage
--Hilink establish in 2007,Specialize in this field with around 10-year experience.
--Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
--We provide 3 years warranty for all our products from the date of shipment.
--We also provide DWDM CWDM Mux/Demux with optical solutions.
Company Information
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE certificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We also have related optical products and good solutions to satisfy customers' requirements.
New and old customers are warmly welcomed to visit our factory and office for further cooperation.
Hope to build up a business relation with you.
