QSFP28 100G LR4 Optical Transceiver Module LAN WDM 4x25G Channels 1310nm SMF Dual LC 10KM

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP28-LR4-10
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Product Name: QSFP28 100G LR4 10KM LC Transceiver Package: QSFP28
Data Rate: 100G Wavelength: 1296,1300,1305,1309 Nm
Reach Distance: 10KM Connector: LC Duplex
Power Supply: 3.3V DDM: Supported
High Light:

QSFP28 100G Optical Transceiver Module

,

LAN WDM Optical Transceiver Module

,

LR4 100G QSFP28 Transceiver

Product Description



Low Price QSFP28 100G LR4 LAN-WDM 4*25G Channels 1310nm SMF Dual LC 10KM Optical Transceiver



The Hilink’s 100G QSFP28 LR4 is a 4x25G single-mode fiber, hot pluggable optical transceiver. It enables the integration of 4 transmitters, 4 receivers and an optical MUX/ DeMUX into a small form factor package that delivers up to 112 Gbps data link in a compact QSFP28 footprint.

The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 25GB/s LAN-WDM channels, whose wavelengths are in the 1300nm range. The QSFP28 LR4 transceiver is designed for applications with a reach up to 10Km.

The Hilink’s QSFP28 transceiver is based on PLC technology, using surface mounted optoelectronic devices with no free space elements. The unique design of the optical engine facilitates unparalleled compactness while maintaining Telcordia robustness.



Item No. HL-QSFP28-LR4 Vendor Name Hilink
Form Type QSFP28 Max Data Rate 100Gbps
Wavelength 1296,1300,1305,1309 nm Max Cable Distance 10KM
Interface LC Duplex DOM Support Yes
Cable Type SMF Commercial Temperature Range 0 to 70°C (32 to 158°F)



Features



  •  Compliant with the QSFP28 MSA Technical Specifications
  •  Supports operation for a data rate of103.1Gb/s
  •  Maximum link length of 10km on Single Mode Fiber (SMF)
  •  Optical specifications are compliant with IEEE802.3ba 100GBASE-LR4
  •  Low speed electrical signal is compliantwith SFF-8679
  •  High speed electrical signal is compliant with 802.3bm CAUI-4
  •  Digital diagnostic functions are available via the I2C interface, as specified by SFF-8636
  •  4x25Gb/s DFB-based LAN-WDM transmitter with central wavelengths of 4 channels 1295.56,1300.05, 1304.58 and 1309.14 nm
  •  Supports operation for a case temperature of 0°C to +70°C
  •  Duplex LC receptacles
  •  Power Dissipation < 4.0W
  •  Single 3.3V Power Supply
  •  RoHS Compliant





Applications



  •  100GBASE-LR4 Ethernet links





Compatibility



  • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.







Details Photos

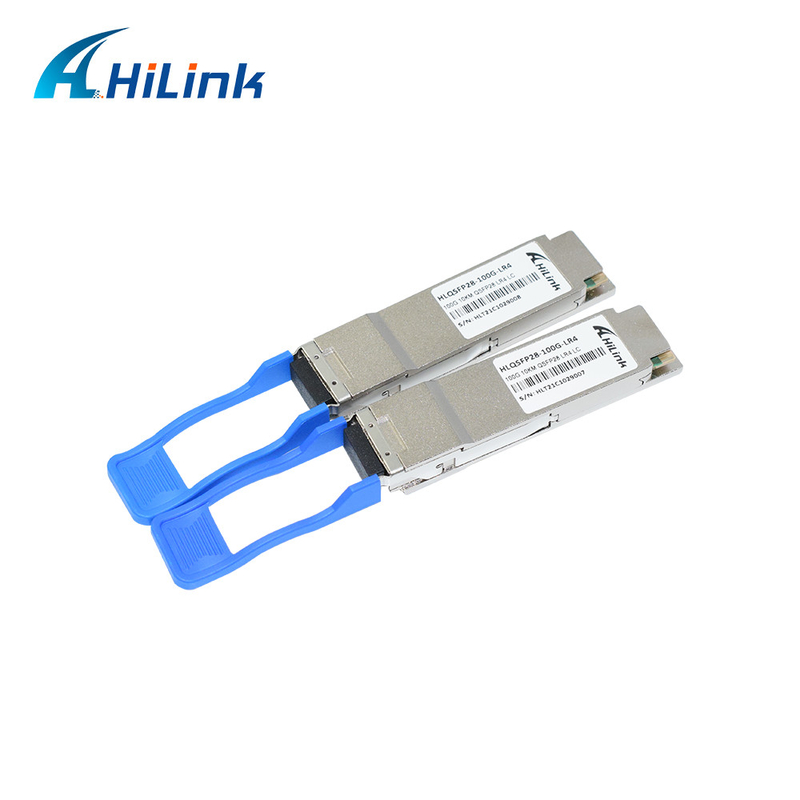

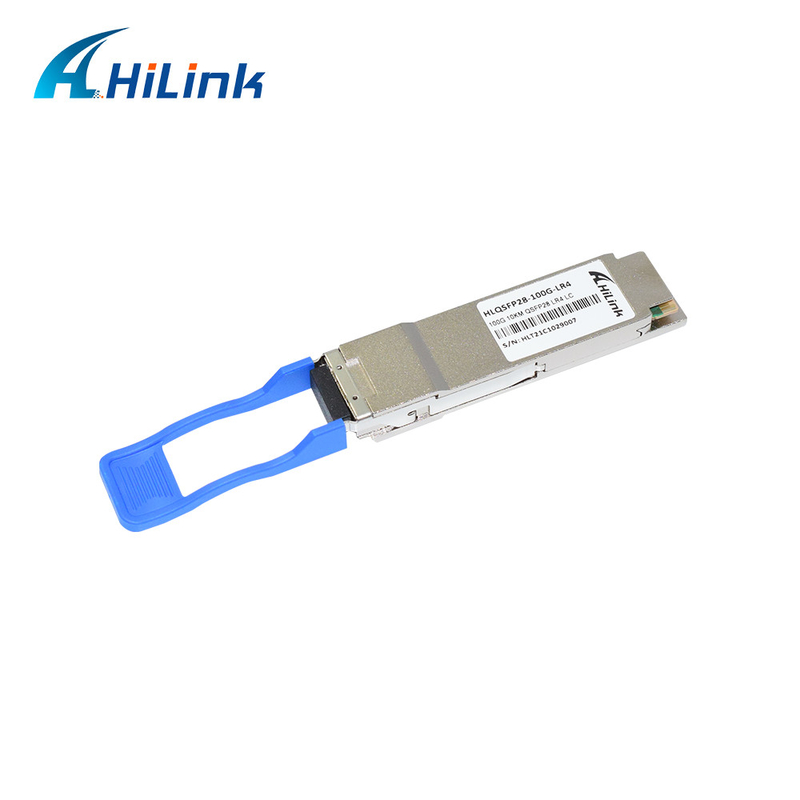

QSFP28 100G LR4 Optical Transceiver Module LAN WDM 4x25G Channels 1310nm SMF Dual LC 10KM 0QSFP28 100G LR4 Optical Transceiver Module LAN WDM 4x25G Channels 1310nm SMF Dual LC 10KM 1

QSFP28 100G LR4 Optical Transceiver Module LAN WDM 4x25G Channels 1310nm SMF Dual LC 10KM 2











Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.




FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
