Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC RoHS |
| Model Number: | HL-100G-CFP-LR4-10 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Product Name: | CFP 100G LR4 10KM Transceiver | Package: | CFP |
|---|---|---|---|
| Data Rate: | 100G | Wavelength: | 1296,1300,1305,1309 Nm |
| Reach Distance: | 10KM | Transmitter: | Lan-WDM EML |
| Receiver: | PIN | Connector: | LC Duplex |
| Power Consumption: | ≤ 12W | Power Supply: | 3.3V |
| High Light: | 10KM 100G Optical Transceiver,CFP 100G Optical Transceiver,Dual LC 100G LR4 Transceiver |
||
Product Description

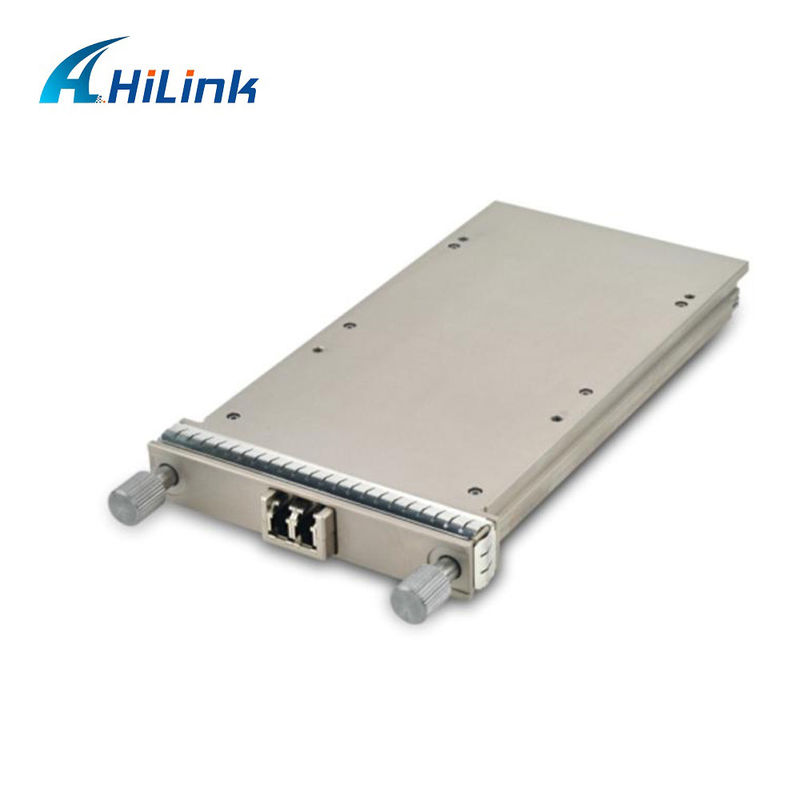

Hot Pluggable 100G 10KM CFP LR4 LAN-WDM SMF Dual LC Single mode Optical Transceiver
HiLink's CFP 100G LR4 transceivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.
The transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
| Item No. | HL-100G-CFP-LR4-10 | Vendor Name | Hilink |
| Form Type | CFP | Max Data Rate | 100Gbps |
| Wavelength | 1296,1300,1305,1309 nm | Max Cable Distance | 10KM |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | SMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
CFP-MSA-HW-Spec-rev1-40 compliant
Up to 10km for G.652 SMF
Receiver: 4-lane×25Gb/s PIN ROSA
Transmitter: 4-lane×25Gb/s LAN-WDM EML TOSA(1295.56,1300.05,1304.58,1309.14nm)
10x10G Electrical Serial Interface (CAUI/ OTL4.10)
MDIO management interface with Digital Diagnostic
Power consumption less than 12W
Compact size: 144.75×82×13.6 mm
Operating case temperature: 0 to +70 ℃
Duplex SC or LC Receptacle
RoHS compliant
Applications
ITU-T OTU4
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
