400G-QSFP-DD-LR4 Singlemode Optical Module DDM 1310nm 10KM QSFP-DD LR4

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DQ4CNL-N00
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
  • Detail Information
  • Product Description

Detail Information

Data Rate: 400GBASE Ethernet Distance: 10KM
Wavelength: 1310nm Connector: Dual LC Connector
Package: QSFPDD CE CC RoHS: Support
High Light:

QSFP-DD LR4 Optical Transceiver Module

,

Singlemode Optical Module DDM

,

1310nm Optical Transceiver Module

Product Description

400G-QSFP-DD-LR4 1310nm 10KM QSFP-DD LR4 10km Singlemode Optical Module DDM


GENERAL
         This product is a 400Gb/s Quad Small Form Factor Pluggable double density (QSFP DD) optical module designed for 10km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

          The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission.

           The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


PRODUCT FEATURES

QSFP-DD MSA compliant

4 CWDM lanes MUX/DEMUX design

100G Lambda MSA 400G-LR4 Specification compliant

Up to 10km transmission on single mode fiber (SMF) with FEC

Operating case temperature: 0 to 70℃

8x53.125Gb/s electrical interface(400GAUI-8)

Data Rate 106.25Gbps (PAM4) per channel.

Maximum power consumption 12W

Duplex LC Connector

RoHS Compliant


APPLICATIONS
Data Center Interconnect
400G Ethernet
Infiniband interconnects
Enterprise networking

RELATED PRODUCT
QSFPDD-400G-SR4 400GBASE-SR4 850nm 100M MPO
QSFPDD-100G-DR4 400GBASE-LR4 1310nm 500M MPO
QSFPDD-100G-LR4 400GBASE-ER 1310nm 10KM LC



PRODUCT PICTURE SHOW

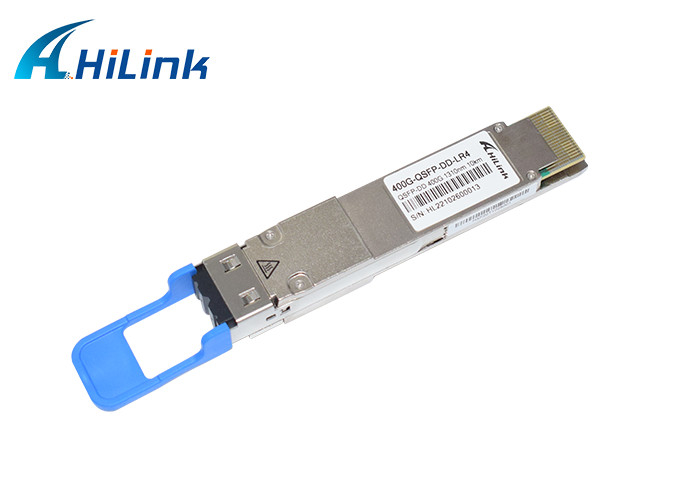

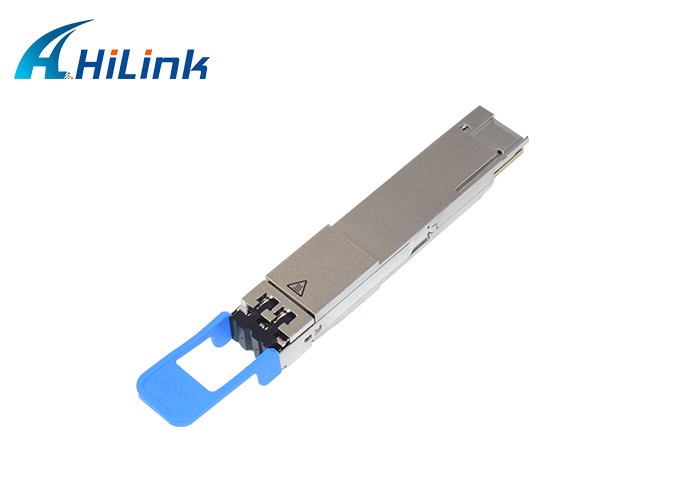

400G-QSFP-DD-LR4 Singlemode Optical Module DDM 1310nm 10KM QSFP-DD LR4 0400G-QSFP-DD-LR4 Singlemode Optical Module DDM 1310nm 10KM QSFP-DD LR4 1
