DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4)
DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4)
DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4) DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4)

DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4)

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-200G-CFP2-DCO
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Contact Now
  • Detail Information
  • Product Description

Detail Information
Data Rate: 200GBASE Ethernet Product Name: 200G CFP2 DCO MR Module
Case Temperature Range: -10~70℃ Connector: LC/UPC Connector
Package: CFP CE CC RoHS: Support
High Light:

DWDM System Optical Transceiver Module

,

200G Ethernet Optical Transceiver Module

,

CFP2 DCO Optical Transceiver Module

Product Description


DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4)


GENERAL
          This document describes the product specifications for coherent 200G CFP2 DCO modules based on dual polarization quadrature amplitude modulation (DP-16QAM) supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The module can accommodate various client signals such as 100 Giga-bit Ethernet (100GbE ) and Optical Transport channel Uint-4(OUT4).

PRODUCT FEATURES
Support Flex-grid channel spacing DWDM infrastructure
Support Flexible client-side interfaces:100GbE, OTU4
Support OpenROADM(oFEC) line-side FEC types for 200G(31.57GBaud at DP-16QAM)
Framed PRBS generator/checker on the host and network side interfaces
Network and client loopback at the near-endian and far-endian point
CFP MSA IEEE802.3 Clause 45 compliant MDIO
104pin CFP2 MSA compliant connector
Hot Swappable
RoHS compliant
Compliant to OIF-CFP2-DCO-01.0, October 17, 2018
Compliant to CFP MSA Management Interface Specification


APPLICATIONS
Used on the system's motherboard
Up to 2000 km in MAN DWDM application
Used from short haul (ZR) to Metro (MR)
Data Center Interconnection (DCI)

ORDERING INFORMATION
Module model Description
COT2-DCO-200G-C Supports 100G/200G rates,Supports100G PM-QPSK,200G PM-16QAM
COT2-DCO-200G-S Supports 100G/200G rates,Supports100G PM-QPSK,200G PM-16QAM
COT2-DCO-400G-L Supports 200G/400G rates,Supports 200G PM-QPSK,200G PM-16QAM,200G PM-16QAM PS,400G PM-16QAM

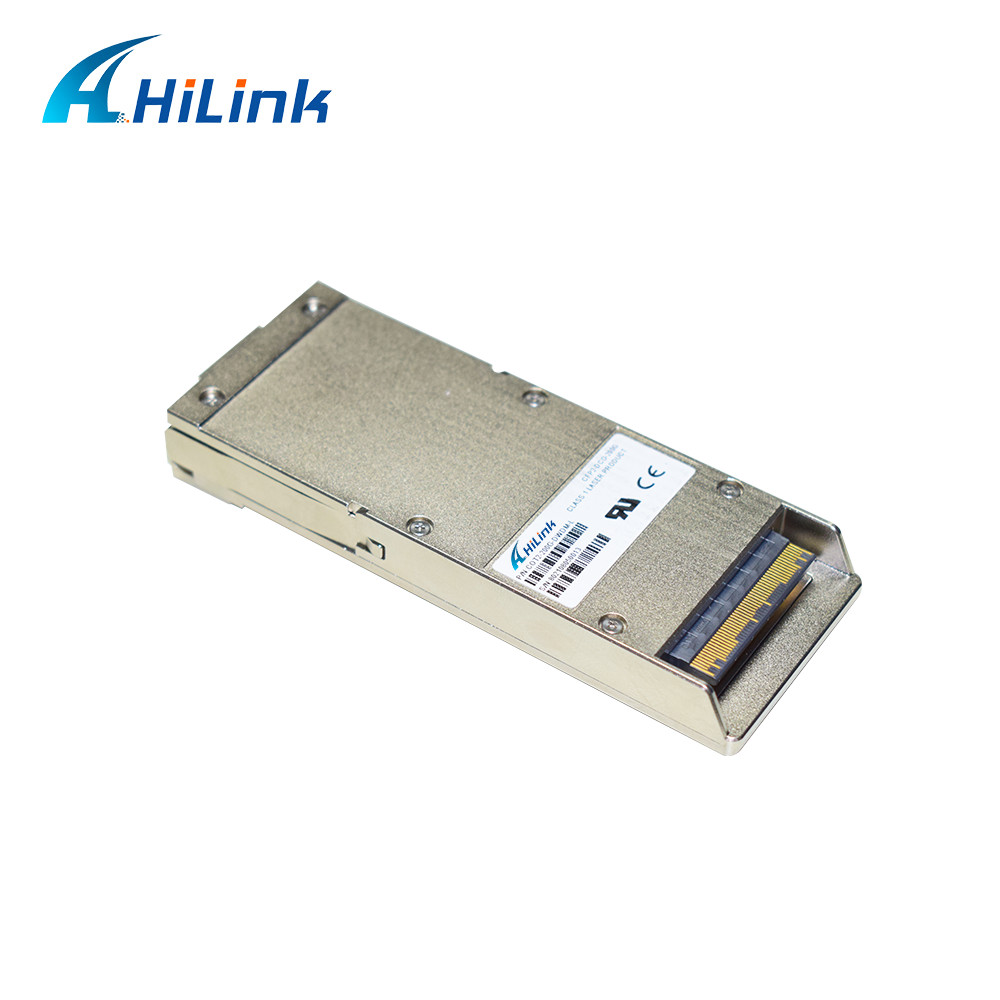

PRODUCT PICTURE SHOW

DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4) 0DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4) 1



COMPANY INFORMATION

DWDM System 200G Ethernet CFP2 200G CFP2 DCO MR Module For Uint-4(OUT4) 2

FAQ

Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.





As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
