100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC
100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP28-eZR4-100
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: QSFP28 100G EZR4 100KM LC Module Wavelength: 1296,1300,1305,1309 Nm
Reach Distance: 100KM Connector: LC Duplex
Transmitter: LWDM EML Output Power: +3.0~ +6.5dBm
Receiver: SOA+PIN Sensitivity: < -30dBm
FEC: Supported DDM: Supported
High Light:

100G eZR4 QSFP28 Transceiver Module

,

100KM SMF QSFP28 Transceiver Module

,

FEC 100G QSFP28 Transceiver

Product Description





Brands Compatible QSFP28 100G eZR4 100KM on SMF With FEC Dual LC QSFP Transceivers



Hilink QSFP28 ZR4 modules are designed for 100 Gigabit Ethernet over single mode fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4+.

Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. QSFP28 are compliant with RoHS.



100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 0




Features



  • Compliant with QSFP28 MSA
  • 4 cooled 25Gb/s channels LAN WDM EML TOSA
  • 4 channels SOA PIN photo detector
  • Single +3.3V power supply
  • Class 1 laser safety certified
  • Commercial operating temperature: 0℃ to +70℃
  • Up to 100km on SMF with FEC
  • Duplex LC connector
  • RoHS 6/6 Compliant





Optical Characteristics



Transmitter:

Parameter Symbol Minimum Typical Maximum Unit Notes
Launch Optical Power per lane Po +3.0 - +6.5 dBm 1
Total Launch Optical Power Po - - +12.5 dBm 1
Center Wavelength Range L1 1294.53 1295.56 1296.59 nm -
L2 1299.02 1300.05 1301.09 nm -
L3 1303.54 1304.58 1305.63 nm -
L4 1308.09 1309.14 1310.19 nm -
Extinction Ratio EX 8.0 - - dB 2
Spectral width(-20dB) Δλ - - 1 nm -
Side Mode Suppression Ratio SMSR 30 - - dB -
Optical Return Loss Tolerance ORLT - - 20 dB -
Pout @TX-Disable Asserted Poff - - -30 dBm 1
Eye Mask {X1, X2, X3, Y1, Y2, Y3} {0.25, 0.4, 0.45, 0.25, 0.28, 0.4}



Notes:

  • The optical power is launched into SMF.
  • Measured with a PRBS 231-1 test pattern @25.78125Gbps.



Receiver:

Parameter Symbol Minimum Typical Maximum Unit Notes
Center Wavelength L1 1294.53 1295.56 1296.59 nm -
L2 1299.02 1300.05 1301.09 nm -
L3 1303.54 1304.58 1305.63 nm -
L4 1308.09 1309.14 1310.19 nm -
Sensitivity per Channel (average optical power) S - - -30.0 dBm 1
Overload (each channel) POL +4.5 - - dBm 1
Damage Threshold(each channel) Pdamage +5.5 - - dBm -
Receiver Reflectance Rf - - -26 dB -
LOS De-Assert LOSD - - -29.0 dBm -
LOS Assert LOSA - - -32.0 dBm -
LOS Hysteresis - 0.5 - 5.0 dB -



Notes:

  • Measured with PRBS 231-1 test pattern, 25.78125Gb/s, BER 5.0E-5;





Applications



  • 100GBASE-ZR4 Ethernet links
  • Data center





Compatibility



  • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.







Details Photos

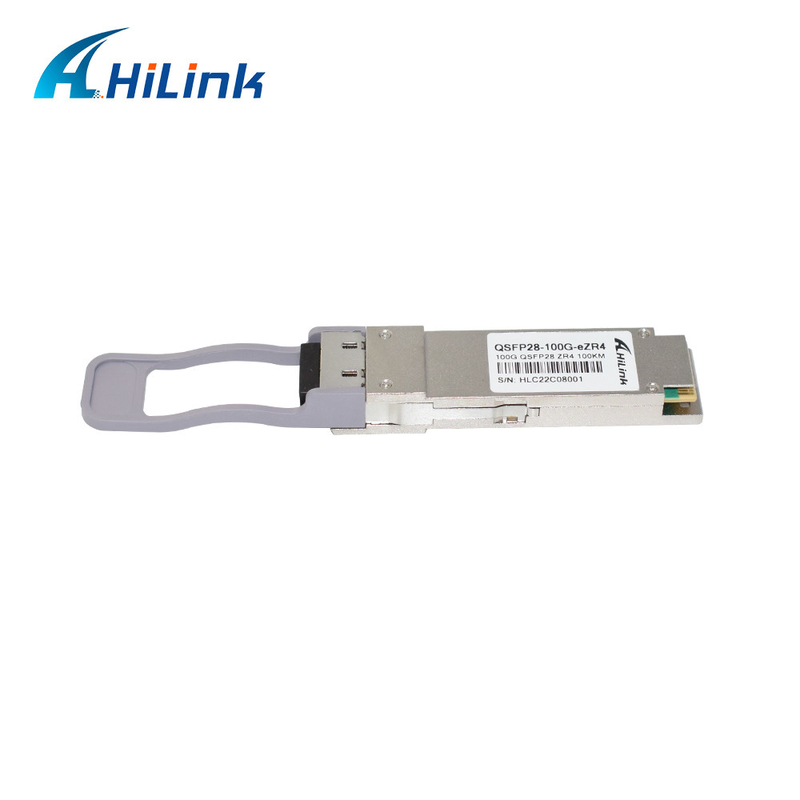

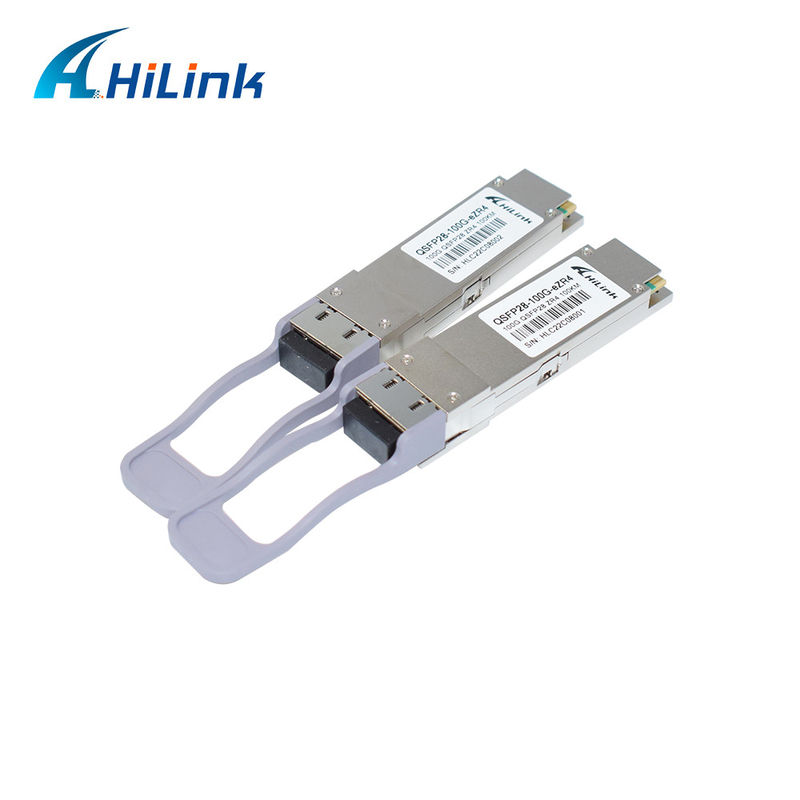

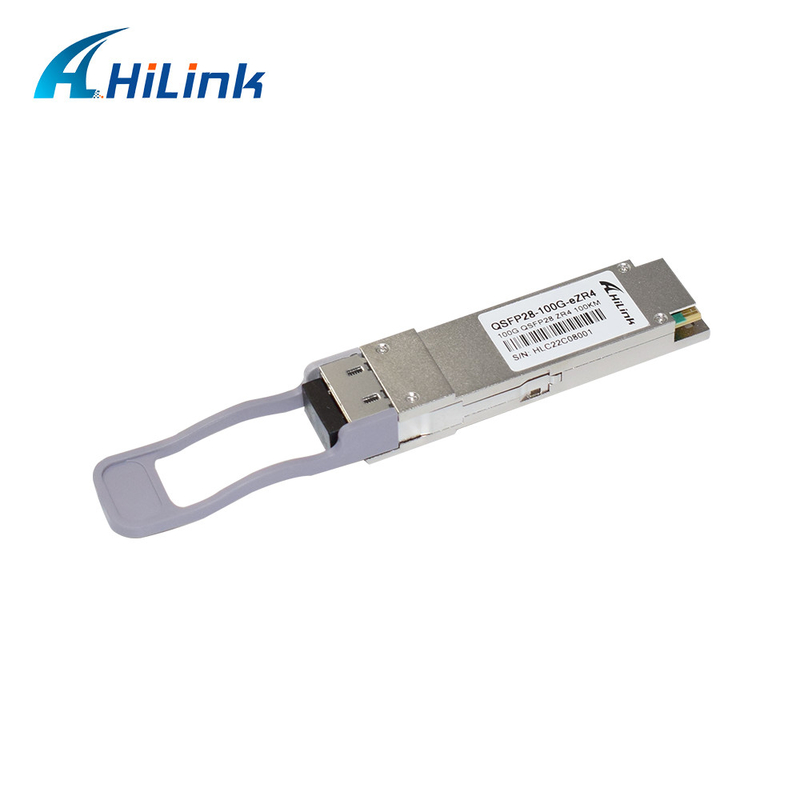

100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 1100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 2100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC 3









Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
