Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP28-DW-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Product Name: QSFP28 100G DWDM 80KM Dual CS Module Modulation Technology: PAM4
Transmitter: Cooled EML Output Power: +1~ +4dBm
Receiver: PIN-PD Sensitivity: < -12.5dBm
Connector: Dual CS FEC: Integrated SFEC
High Light:

80KM 100G QSFP28 Transceiver

,

Dual CS 100G QSFP28 Transceiver

,

Integrated SFEC QSFP28 Transceiver Module

Product Description





Hilink 100G QSFP28 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter Transceiver





Hilink QSFP28 100G PAM4 Optical Transceiver module supports up to 40ch 100G links up to 80km(with EDFA/TDCM) over single-mode fiber (SMF) via a CS duplex connector.

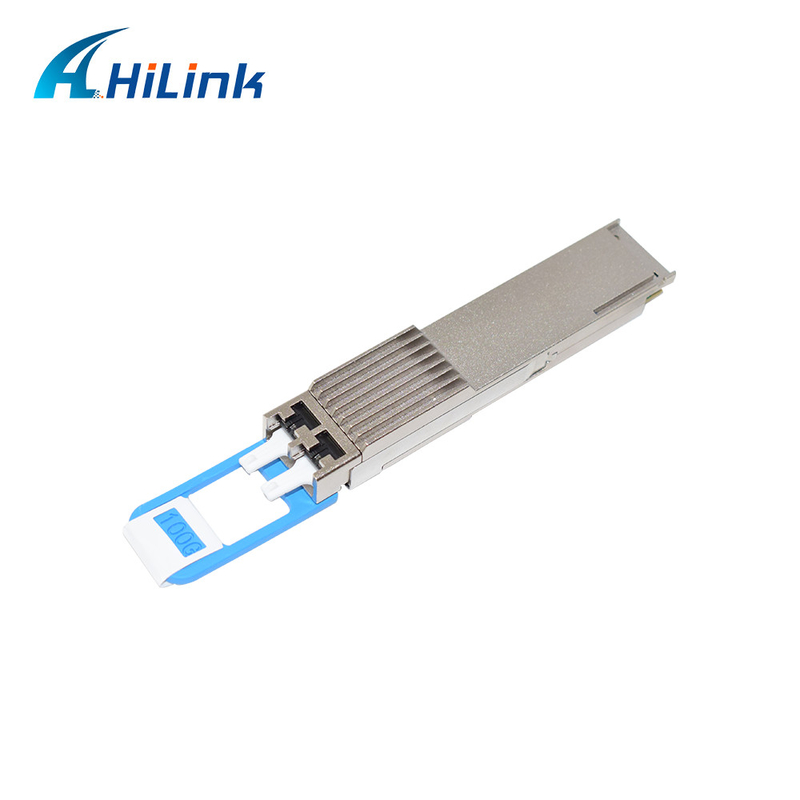

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 0




Features



  • Hot pluggable QSFP28 MSA form factor
  • Up to 80km reach for G.652 SMF with transport white box
  • Single +3.3V power supply
  • Temperature Range 0 to 70°C
  • Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
  • Receiver: 2*27.5Gbaud/s Pin-PD ROSA
  • 4*25G CAUI4 electrical interface
  • Integrated SFEC with high coding gain
  • PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
  • Dual CS adaptor
  • Compatible with RoHS6



Wavelength Table



TX1 TX2
Ch. No.

Frequency

(THz)

Center Wavelength(nm) Ch. No.

Frequency

(THz)

Center Wavelength(nm)
C13 191.30 1567.13 C14 191.40 1566.31
C13+ 191.35 1566.72 C14+ 191.45 1565.90
C15 191.50 1565.50 C16 191.60 1564.68
C15+ 191.55 1565.09 C16+ 191.65 1564.27
C17 191.70 1563.86 C18 191.80 1563.05
C17+ 191.75 1563.45 C18+ 191.85 1562.64
C19 191.90 1562.23 C20 192.00 1561.42
C19+ 191.95 1561.83 C20+ 192.05 1561.01
C21 192.10 1560.61 C22 192.20 1559.79
C21+ 192.15 1560.20 C22+ 192.25 1559.39
C23 192.30 1558.98 C24 192.40 1558.17
C23+ 192.35 1558.58 C24+ 192.45 1557.77
C25 192.50 1557.36 C26 192.60 1556.55
C25+ 192.55 1556.96 C26+ 192.65 1556.15
C27 192.70 1555.75 C28 192.80 1554.94
C27+ 192.75 1555.34 C28+ 192.85 1554.54
C29 192.90 1554.13 C30 193.00 1553.33
C29+ 192.95 1553.73 C30+ 193.05 1552.93
C31 193.10 1552.52 C32 193.20 1551.72
C31+ 193.15 1552.12 C32+ 193.25 1551.32
C33 193.30 1550.92 C34 193.40 1550.12
C33+ 193.35 1550.52 C34+ 193.45 1549.72
C35 193.50 1549.32 C36 193.60 1548.51
C35+ 193.55 1548.91 C36+ 193.65 1548.11
C37 193.70 1547.72 C38 193.80 1546.92
C37+ 193.75 1547.32 C38+ 193.85 1546.52
C39 193.90 1546.12 C40 194.00 1545.32
C39+ 193.95 1545.72 C40+ 194.05 1544.92
C41 194.10 1544.53 C42 194.20 1543.73
C41+ 194.15 1544.13 C42+ 194.25 1543.33
C43 194.30 1542.94 C44 194.40 1542.14
C43+ 194.35 1542.54 C44+ 194.45 1541.75
C45 194.50 1541.35 C46 194.60 1540.56
C45+ 194.55 1540.95 C46+ 194.65 1540.16
C47 194.70 1539.77 C48 194.80 1538.98
C47+ 194.75 1539.37 C48+ 194.85 1538.58
C49 194.90 1538.19 C50 195.00 1537.40
C49+ 194.95 1537.79 C50+ 195.05 1537.00
C51 195.10 1536.61 C52 195.20 1535.82
C51+ 195.15 1536.22 C52+ 195.25 1535.43
C53 195.30 1535.04 C54 195.40 1534.25
C53+ 195.35 1534.64 C54+ 195.45 1533.86
C55 195.50 1533.47 C56 195.60 1532.68
C55+ 195.55 1533.07 C56+ 195.65 1532.29
C57 195.70 1531.90 C58 195.80 1531.12
C57+ 195.75 1531.51 C58+ 195.85 1530.72
C59 195.90 1530.33 C60 196.00 1529.55
C59+ 195.95 1529.94 C60+ 196.05 1529.16




100G QSFP28 DWDM Solutions



  • Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution

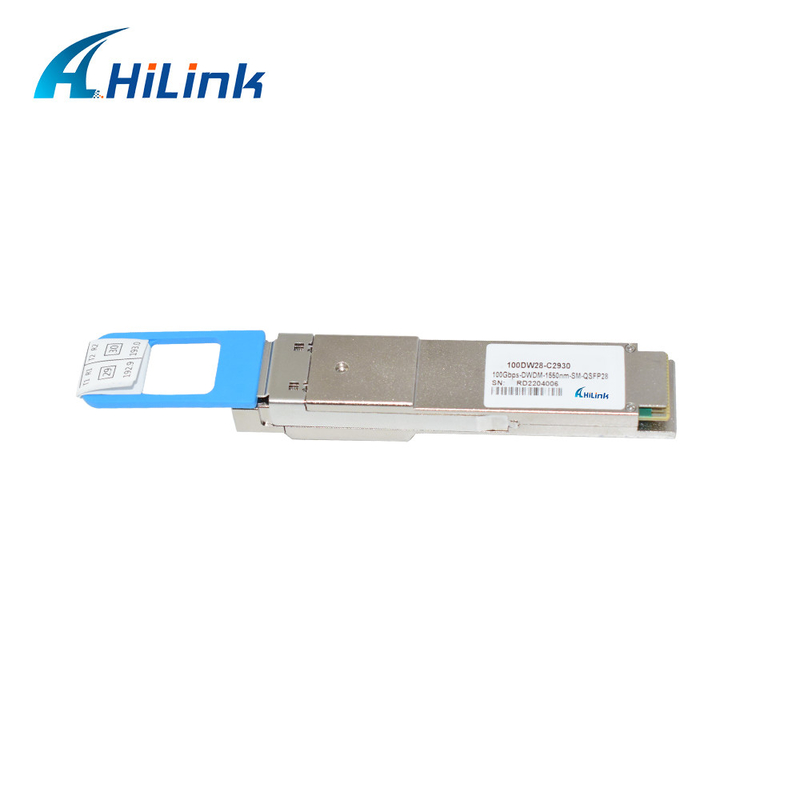

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 1





  • Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution

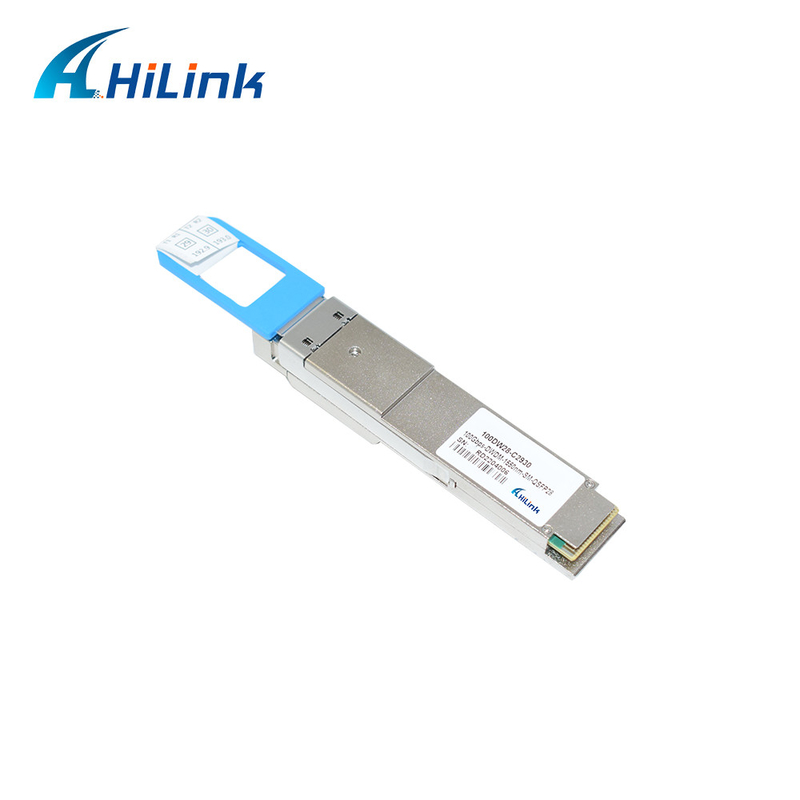

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 2



  • Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 3





Compatibility



  • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





Details Photos



Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 4Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 5Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 6









Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
