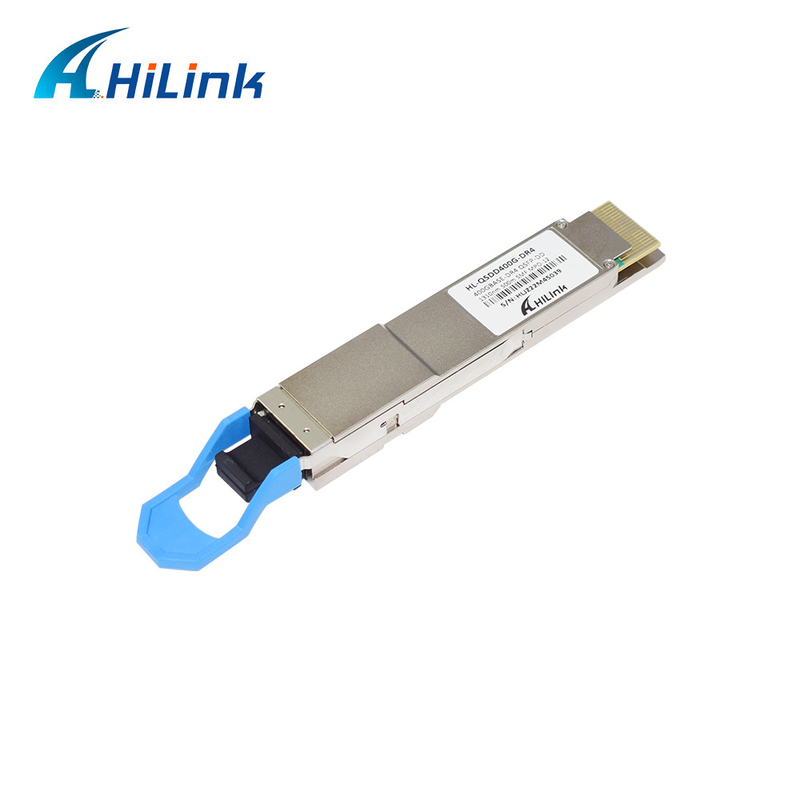

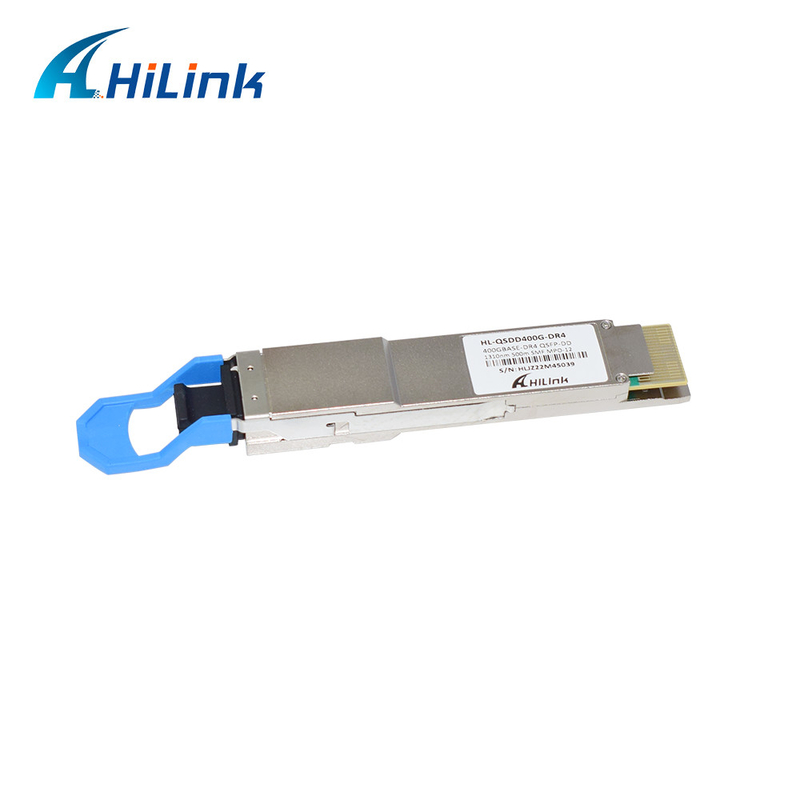

QSFP DD 400G DR4 PAM4 Fiber Optic Transceiver 500M SMF 1310nm MPO-12
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 500M optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
Features
-
QSFP-DD MSA compliant
-
Compliant to 802.3bs
-
400G DR4 Specification compliant
-
Non-hermetic package design
-
8x53.125Gb/s PAM4 electrical interface (400GAUI-8)
-
Maximum power consumption 12W
-
MPO connector
-
Supports 425Gb/s aggregate bit rate
-
Up to 500m transmission on single mode fiber with FEC
-
Operating case temperature: 0~+70℃
-
Single 3.3V power supply
-
RoHS-2 compliant
Optical Characteristics
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
| Transmitter |
|
Data Rate, each Lane
|
|
|
53.125±100 ppm
|
|
GBd |
|
|
Modulation Format
|
|
|
PAM4 |
|
|
|
|
Line wavelengths
|
λ
|
1304.5
|
1311 |
1317.5
|
nm |
|
|
Average Launch Power, each Lane
|
|
-2.9 |
|
4 |
dBm |
|
|
Optical Modulation Amplitude(OMA), each Lane
|
|
-0.8 |
|
4.2 |
dBm |
|
|
Side-mode Suppression Ratio
|
SMSR |
30 |
|
|
dB |
|
|
Launch power in OMA minus TDECQ,
each lane
|
TDECQ |
-2.2 |
|
|
dBm |
|
|
Extinction ratio
|
ER |
3.5 |
|
|
dB |
|
|
Transmitter and Dispersion Eye Clouser for
PAM4, each Lane
|
|
|
|
3.4 |
dB |
|
|
Optical return loss tolerance
|
|
|
|
-26 |
dB |
|
|
Average Launch Power of
OFF Transmitter, each Lane
|
|
|
|
-15 |
dBm |
|
| Receiver |
| Line Wavelengths |
λ |
1304.5 |
|
1317.5 |
nm |
|
| Damage Threshold,
each lane
|
THd |
5 |
|
|
dBm |
|
|
Average receiver power, each lane
|
|
-5.9 |
|
4 |
dBm |
|
|
Receive Power, each lane (OMA)
|
|
|
|
4.2 |
dBm |
|
|
Receiver Sensitivity (OMAouter) e,ach lane(max)
|
|
|
|
-4.4 |
dBm |
|
|
Stressed receiver Sensitivity (OMAouter) ,
each lane(max)
|
|
|
|
-1.9 |
dBm |
|
|
LOS De-Assert
|
LOSD |
|
|
-8.4 |
dBm |
|
|
LOS Assert
|
LOSA |
-15 |
|
|
dBm |
|
|
LOS Hysteresis
|
|
0.5 |
|
|
dB |
|
|
Conditions of Stressed Receiver Sensitivity
|
|
|
Stressed eye closure for PAM4 (SECQ),
lane under test
|
|
0.9 |
|
3.4 |
dB |
|
|
OMAouter of each aggressor lane
|
|
|
|
4.2 |
dBm |
|
Note
1. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.
2. Receiver sensitivity is informative and is defined for a transmitter with a value of SECQ up to 4.9 dB.
3. Equation 3: RS= Max (-6, SECQ-7.9) (dBm), where
RS is the receiver sensitivity, SECQ is the SECQ of the transmitter used to measure the receiver sensitivity
4. Measured with conformance test signal at TP3 for the BER of 2.4 E-4
