Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSDD-100G-ZR+ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Data Rate: | 100GBASE Ethernet | Wavelength: | DWDM C-brand |
|---|---|---|---|
| Connector: | Dual LC Connector | Package: | QSFPDD |
| CE CC RoHS: | Support | Operating Case Temperature: | 0 To 75℃ |
| High Light: | QSFP Coherent Optical Transceiver Module,100G DD DCO Optical Transceiver Module,SMF LC DDM Optical Transceiver Module |
||
Product Description

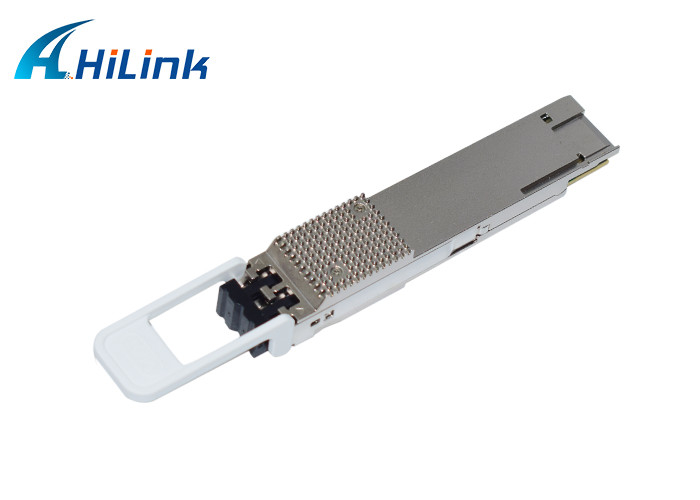

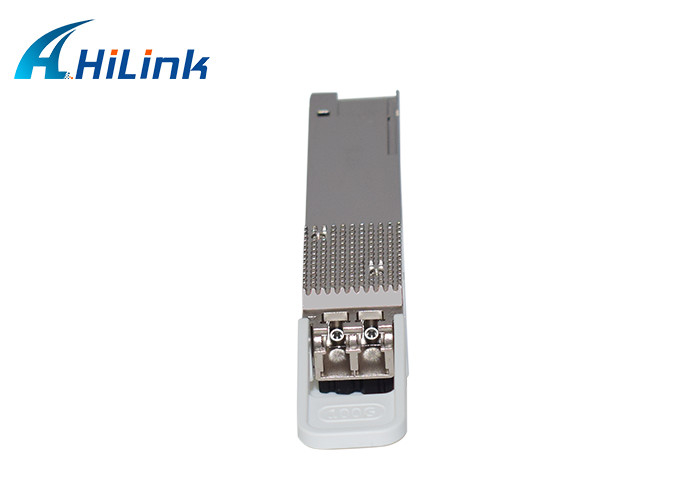

This document describes the product specifications for 100G OpenZR+ QSFP-DD DCO modules based on DP-QPSK supporting extended C -band, polarization diversity coherent detection and advanced electronic link equalization. Chromatic dispersion compensation can be applied to the receive side of the demodulator. This module is managed utilizing the Two Wire Interface that is specified in the Common Management Interface Specification (CMIS).
The module uses a 76-pin QSFP-DD MSA QSFP-DD Hardware Specification connector for all electrical interfaces with the host card, whereas the optical interfaces on the line side are provided through the optical receptacles on the QSFP-DD. The module can be portioned into three functional parts: TX path, RX path and Control & Power block.
The host interface is comprised of a total of 8 high speed SerDes lanes. This allows module to support one interfaces for 100G application: Lane 1 - 4 is assigned.

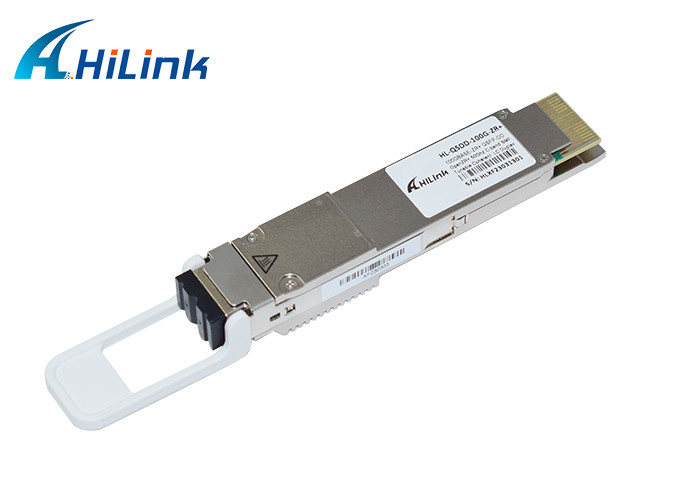

| HL-QSDD-100G-ZR+ |
Single rate 100Gb/s OpenZR+, single channel tunable coherent QSFP-DD with OFEC, 0~75℃ |
MECHANICAL DRAWINGS
