Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Certification: | CE Rohs |
| Model Number: | HL-GLC-TC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pieces |
| Price: | Send Inquiry know latest price |
| Packaging Details: | Plastic box+Carton |
| Delivery Time: | 5-8 working day |
| Payment Terms: | T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance |
| Supply Ability: | 2000 Pieces/Week |
|
Detail Information |
|||
| Brand Name: | Hilink | Product Name: | 1000 Base Copper SFP RJ45 |
|---|---|---|---|
| Data Rate: | 1.25Gb/s | Reach: | 100m |
| Fiber Connector: | RJ45 Copper | Operating Temperature: | 0 To 70℃ |
| High Light: | 1000BASE-T SFP Transceiver,Hot Pluggable SFP Transceiver,1.25Gb/s 100m SFP Transceiver |
||
Product Description
Description:

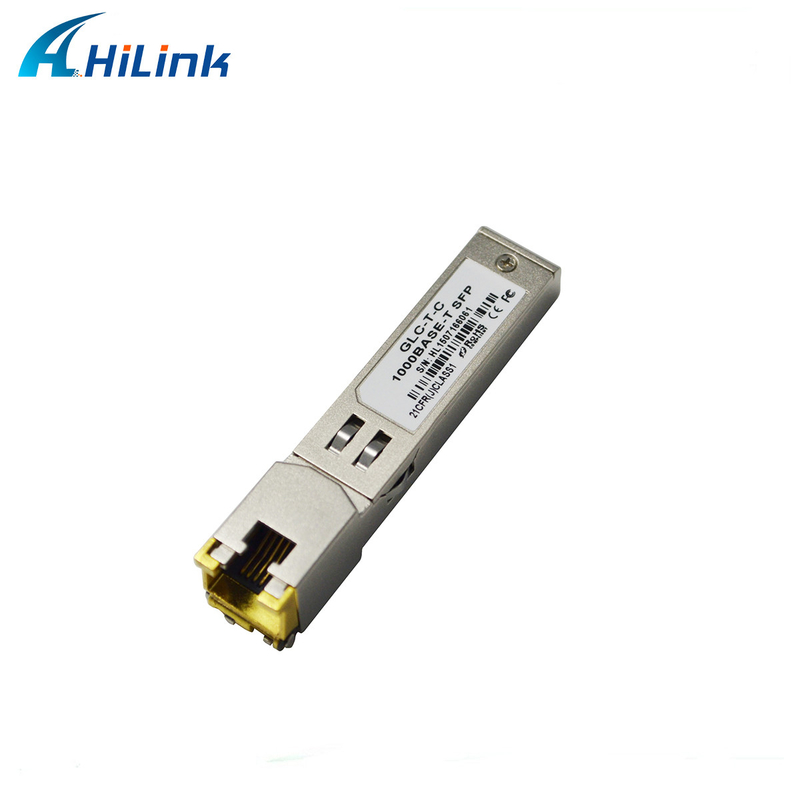

Hilink HL-GLC-TC 1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The product supports 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The product provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Features:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (-40°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Detailed product information in EEPROM
+3.3V single power supply
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS Compliant Products
Real Photo Show:
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
