Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-GLC-T-C |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | 10-16 |
| Packaging Details: | Static bag, Plastic bag, Retail box,Carton or by required |
| Payment Terms: | L/C, D/A, T/T, Western Union,Paypal |
| Supply Ability: | 999/pcs/month |
|
Detail Information |
|||
| Name: | GLC-T-C | Transmission Rate: | 100Base |
|---|---|---|---|
| Port: | Rj45 | Warranty: | 3 Years |
| CE FCC: | Support | DOM: | Yes |
| High Light: | 100M Copper Transceiver,100BASE-T SFP Copper Transceiver |
||
Product Description
General

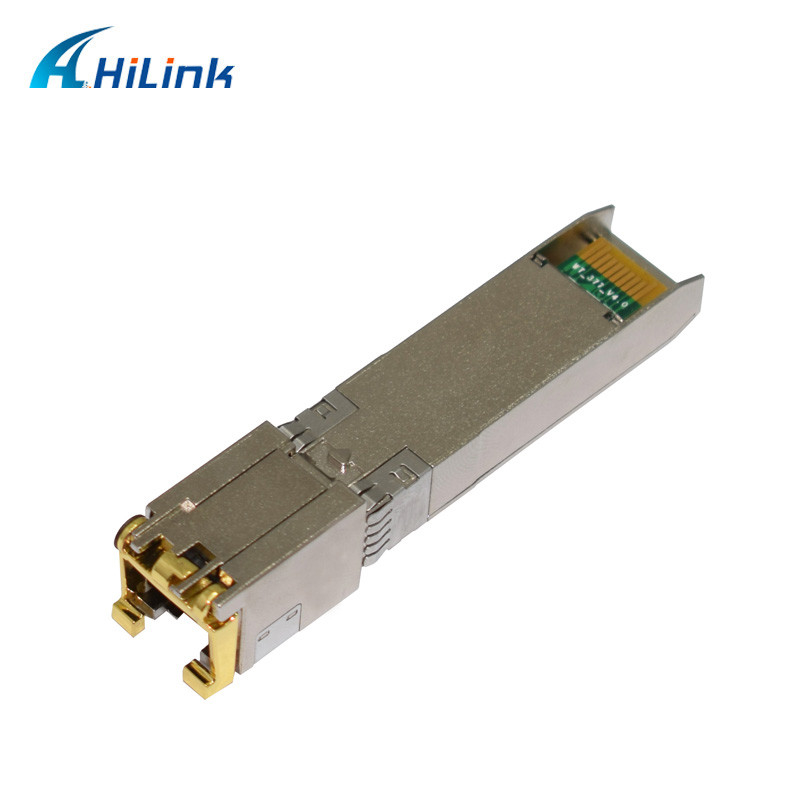

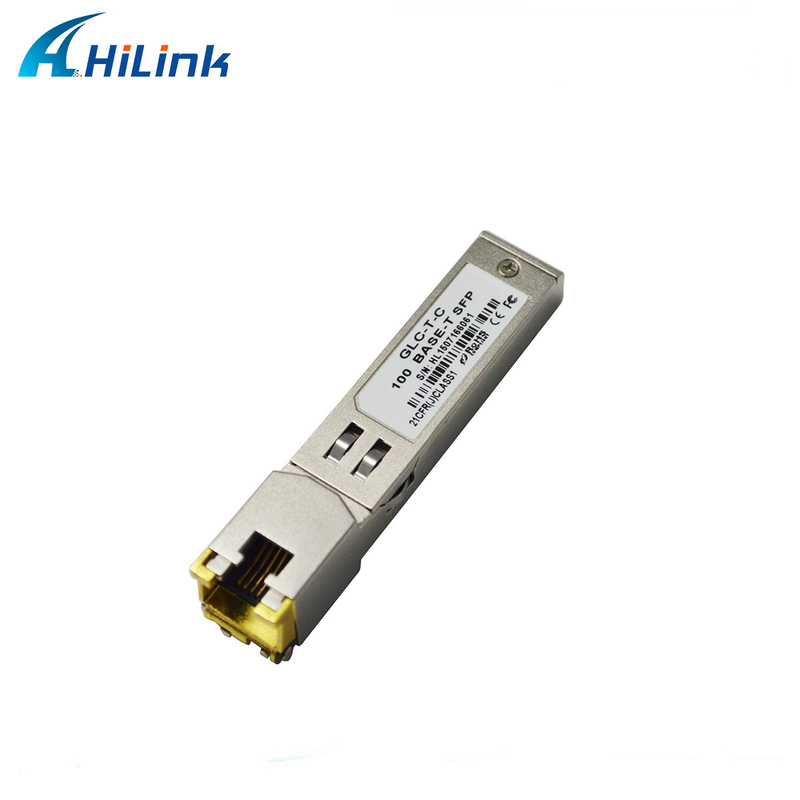

HILINK`s HL-SFP-FE-TCopper Small FormPluggable (SFP)transceiver module is specificallydesigned for converting100Base-FX NRZI port interfaceto 10/100Base-TX interface withRJ45 connector. The transceivermodule is compliant with the SFPMultiSource Agreement (MSA)and IEEE802.3u. With the hotpluggability, the module offers aflexible and easy way to beinstalled into SFP MSA compliantports at any time without theinterruption of the hostequipments operating online.
The Copper SFP transceiversuse an integrated RJ-45 connectorwith transformer and PHY IC
Features
Hot-pluggable SFP footprint
Extended case temperature range (0°C to +70°C )
Fully metallic enclosure for low EMI
Compact RJ-45 connector assembly
It supports RX_LOS(Loss of Signal) function
Compatible with IEEE802.3u
Access to physical layer IC via 2-wire serial bus
A 10/100BASE-TX/ 100BASE-FX converter
OEM and ODM
This 100Base-TX Copper SFP Transceiver supportsthe SFP based switch100Base-FX ports that
accept standard100Base-FX optics SFP
Gigabit Ethernet SFP Transceiver
| Cisco Part Number | Description |
| GLC-T= | 1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector |
| GLC-SX-MM= | 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector |
| GLC-LH-SM= | 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector |
| GLC-ZX-SM= | 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector |
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
