QSFP DD 400GBASE DWDM ZR 80KM QDD-400G-ZR-S DWDM Tunable SMF LC
400G QSFPDD-ZR DWDM Tunable 80KM
General:
This document describes the product specifications for 400G ZR and OpenZR+ QSFP-DD DCO modules based on DP-16QAM supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. Chromatic dispersion compensation can be applied to the receive side of the demodulator. This module is managed utilizing the Two Wire Interface that is specified in the Common Management Interface Specification (CMIS).
Features:
Support Flex-grid channel spacing DWDM in C-band
Support Client-side Interfaces: 1*400GAUI-8 for 400G ZR, 1*400GAUI-8/4*100GAUI-2 for 400G OpenZR+
Support Line-side: DP-16QAM with CFEC(ZR), DP-16QAM with oFEC(OpenZR+)
High TX Power up to +3dBm
Integrated TOF is optional
76pin QSFP-DD MSA compliant connector
Compliant to CMIS 5.0
Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1 9.
OIF-400ZR-02.0
OIF OpenZRplus_2p0
RoHS compliant
Applications
Data Center Interconnect
400G Ethernet
Infiniband interconnects
Enterprise networking

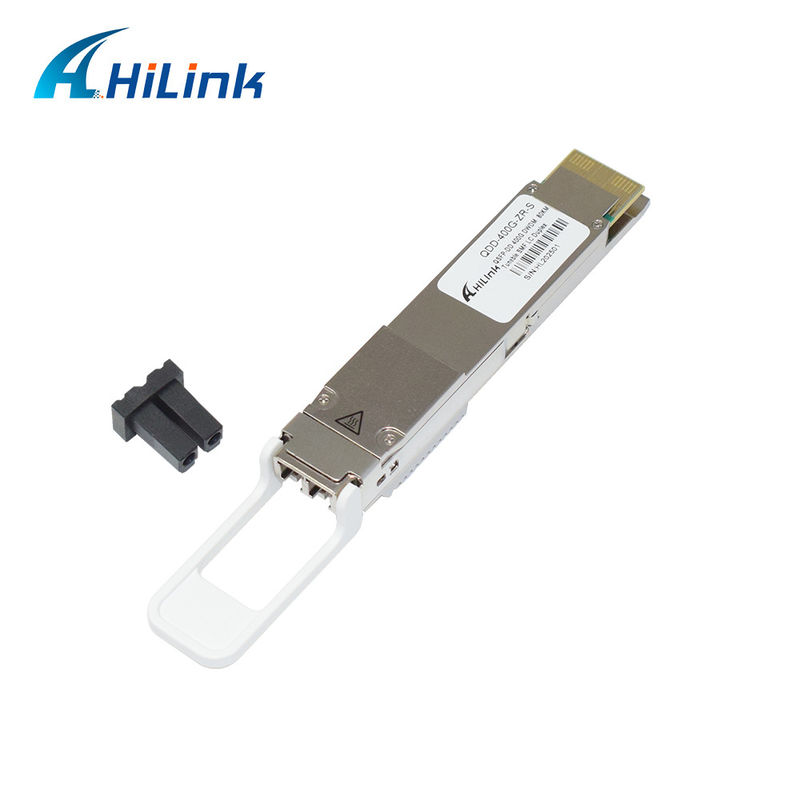

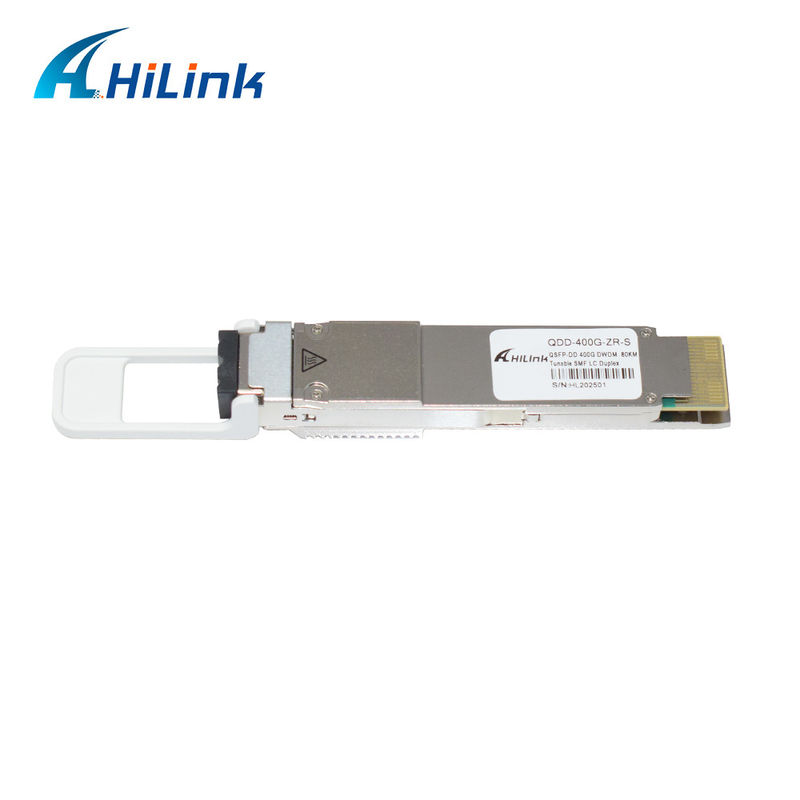

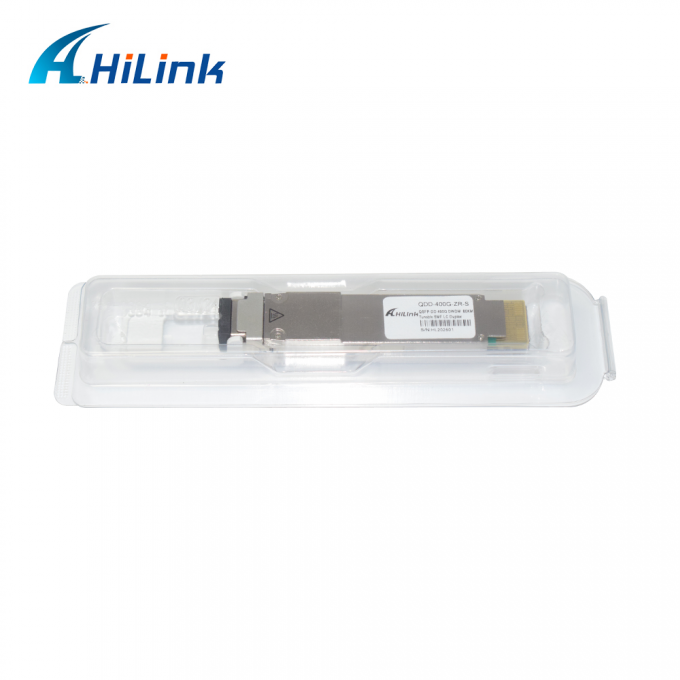

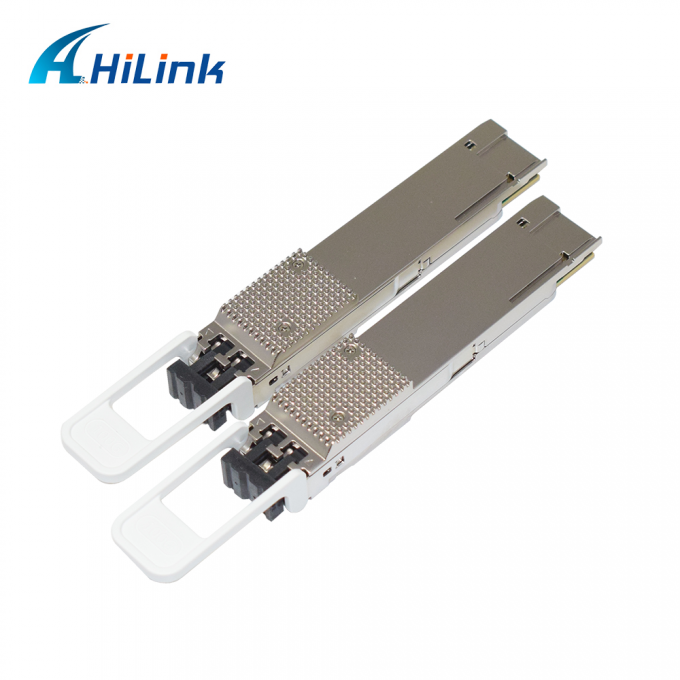

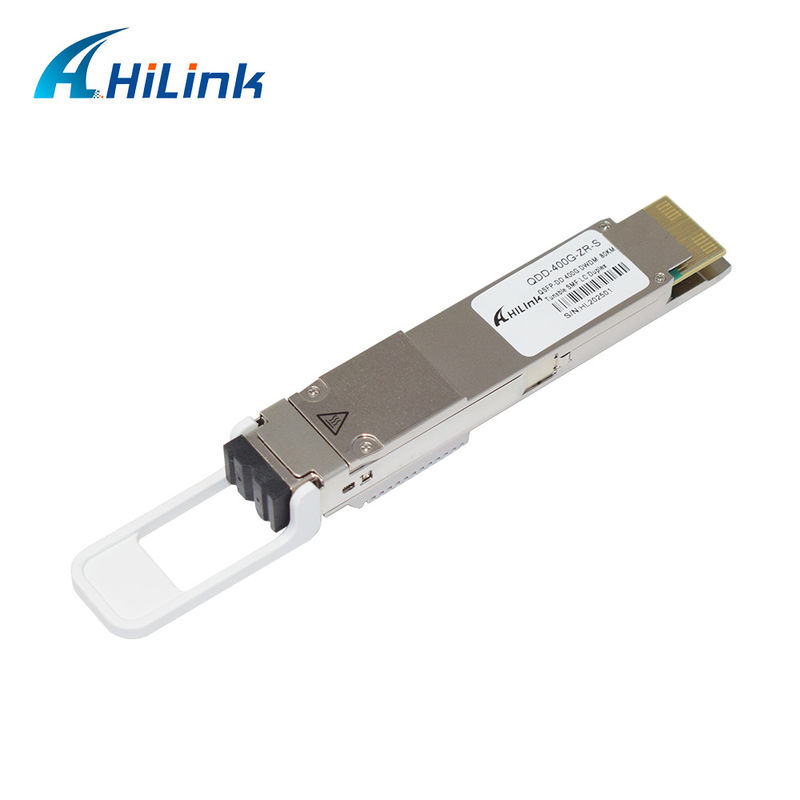

Product Picture show:

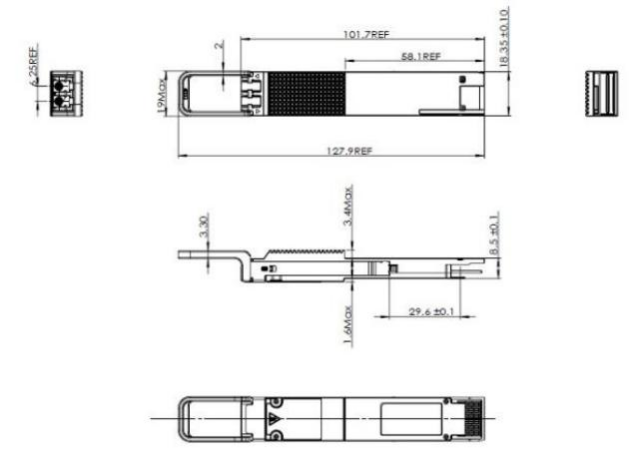

Mechanical Drawings
