25Gb/s SFP28 BIDI 60km DDM Transceiver

25Gb/s SFP28 BIDI 60km DDM Transceiver

25Gb/s SFP28 transceiver with DDM

BIDI optical transceiver 60km

SFP28 transceiver module with warranty

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

25G-BXU/D-60

Contact Us
Request A Quote
25Gb/s SFP28 BIDI 60km DDM Transceiver 25Gb/s SFP28 BIDI 60km DDM Transceiver 25Gb/s SFP28 BIDI 60km DDM Transceiver 25Gb/s SFP28 BIDI 60km DDM Transceiver 25Gb/s SFP28 BIDI 60km DDM Transceiver 25Gb/s SFP28 BIDI 60km DDM Transceiver
Product Details
Product Name:
25G-BXU/D-60
Data Rate:
25G
Reach:
60KM
Operating Temperature:
0 To 70℃
Payment & Shipping Terms
Minimum Order Quantity
1 pieces
Price
Send Inquiry know latest price
Packaging Details
Plastic box+Carton
Delivery Time
5-8 working day
Payment Terms
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability
2000 Pieces/Week
RELATED PRODUCTS
Good price 100G QSFP28 SWDM4 Optical Transceiver 150m OM5 MMF LC RoHS online

100G QSFP28 SWDM4 Optical Transceiver 150m OM5 MMF LC RoHS

Get Best Price
Good price 155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver online

155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver

Get Best Price
Good price 800G OSFP112 DR8+ Transceiver Dual MPO-12 APC Interface 1310nm 2km OSFP online Video

800G OSFP112 DR8+ Transceiver Dual MPO-12 APC Interface 1310nm 2km OSFP

Get Best Price
Good price 800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m online

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

Get Best Price
Contact Us
+86 15917174650
sales05@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
25Gb/s SFP28 BIDI 60km DDM Transceiver
Product Specifications
Product Name 25G-BXU/D-60
Data Rate 25G
Reach 60KM
Operating Temperature 0 to 70℃
Key Features
  • Supports data rates up to 25.78125Gb/s
  • Hot-pluggable SFP footprint with single LC connector
  • Up to 60km reach for G.652 SMF
  • EML transmitter and integrated APD receiver
  • Temperature range: Commercial (0°C to 70°C) / Industrial (-40°C to 85°C)
  • Power consumption: Commercial (1.5W) / Industrial (1.8W)
  • RoHS 6 compliant
  • Compliant with IEEE 802.3cc, SFF-8472, and SFF-8419 standards
  • Meets EU Directive 2015/863/EU requirements
Applications
  • 25G Ethernet networks
  • CPRI option 10 implementations
Product Description

The SFP28-25G-UD-60 series is a small form factor pluggable transceiver module designed for duplex optical data communications over single mode fiber. Operating at nominal wavelengths of 1295.56nm or 1309.14nm, this module features a multiple quantum well EML transmitter that is Class 1 laser compliant per IEC-60825 safety standards.

The electrical interface complies with SFI specifications, featuring 100 Ohms differential impedance for both transmitter input and receiver output. Internal AC coupling of data lines, differential termination, and reduced differential-to-common mode conversion ensure superior signal quality and low EMI.

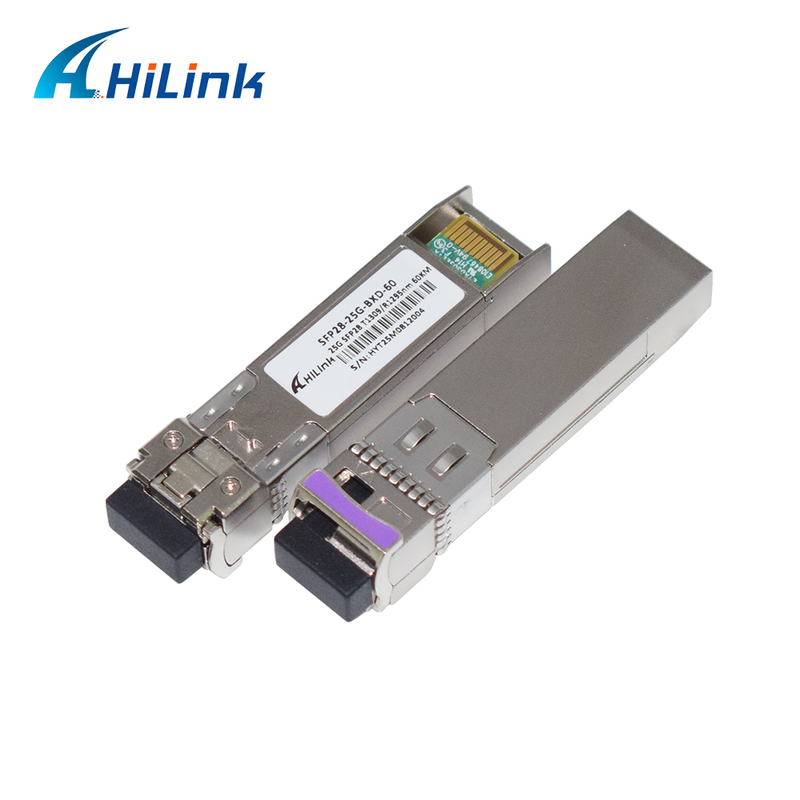

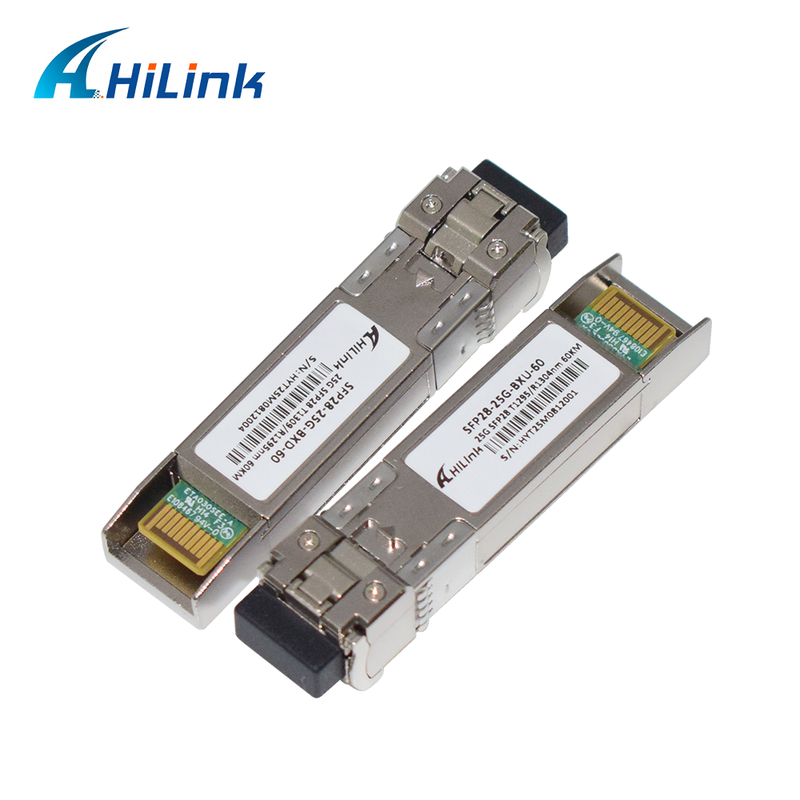

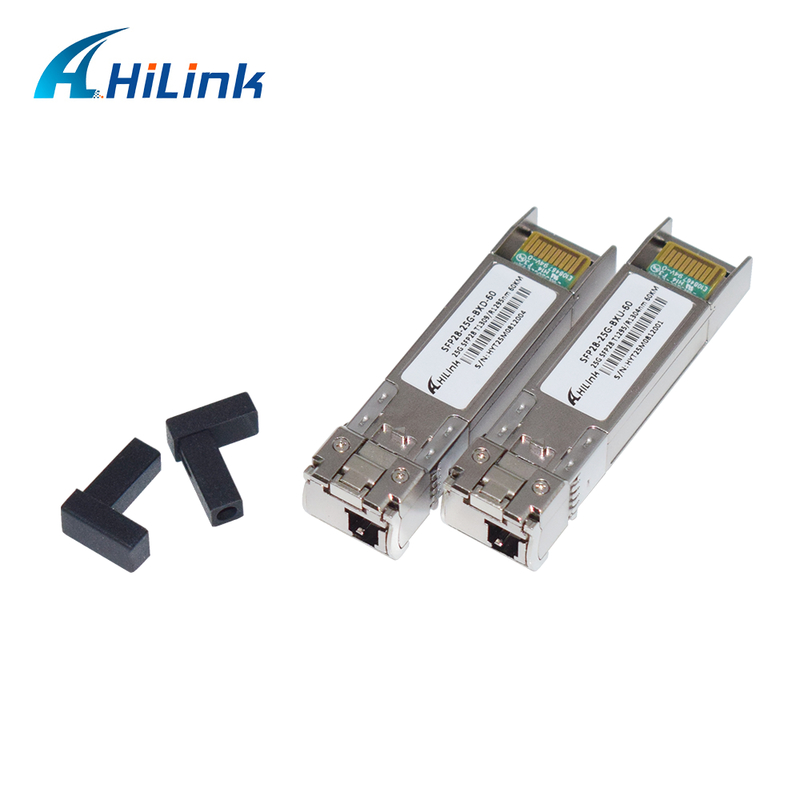

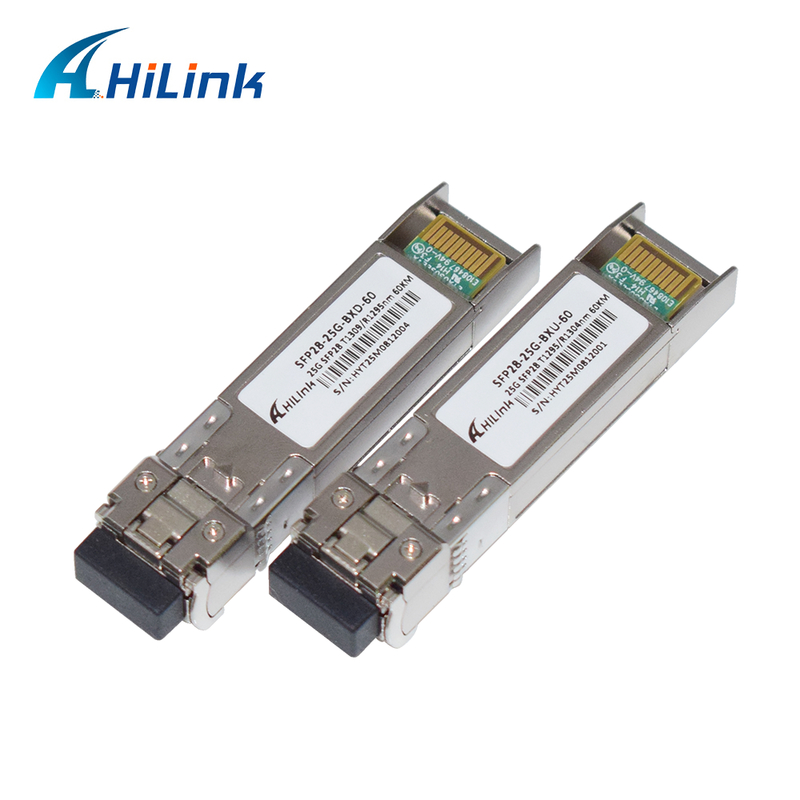

Product Images
25Gb/s SFP28 BIDI 60km DDM Transceiver 0 25Gb/s SFP28 BIDI 60km DDM Transceiver 1 25Gb/s SFP28 BIDI 60km DDM Transceiver 2 25Gb/s SFP28 BIDI 60km DDM Transceiver 3
Our Service

OEM/ODM orders available - All optical modules are brand new with no refurbished components. Each unit undergoes rigorous functional and aging tests.

3-year warranty - Coverage begins from shipment date for all optical transceivers.
