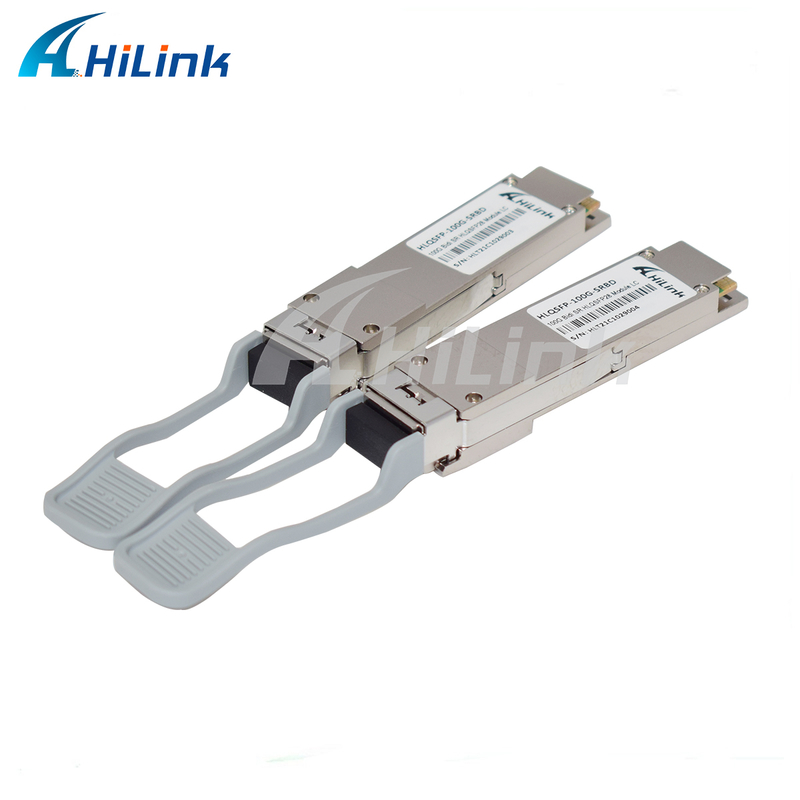

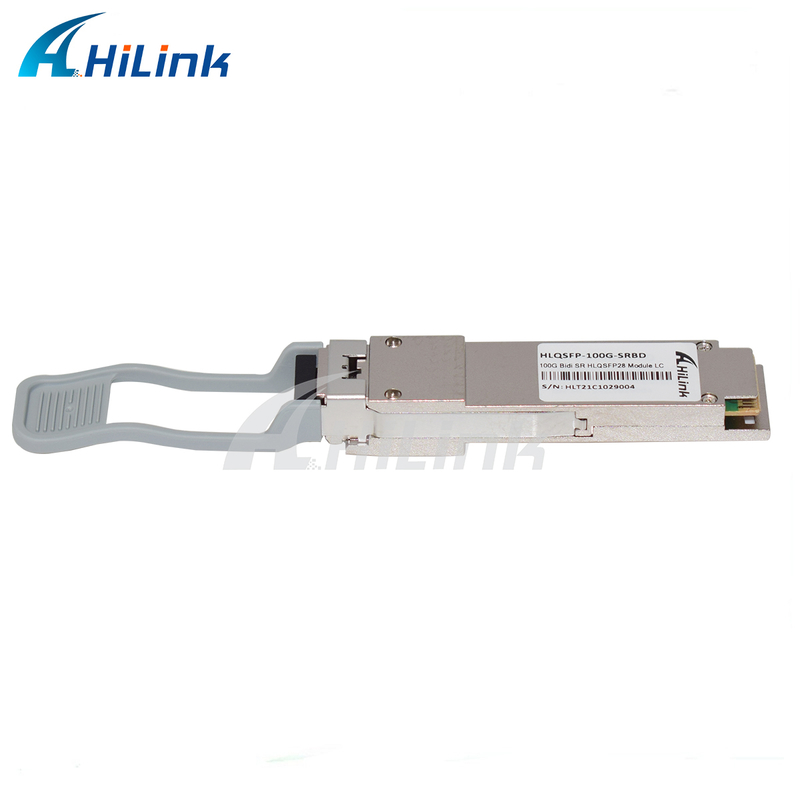

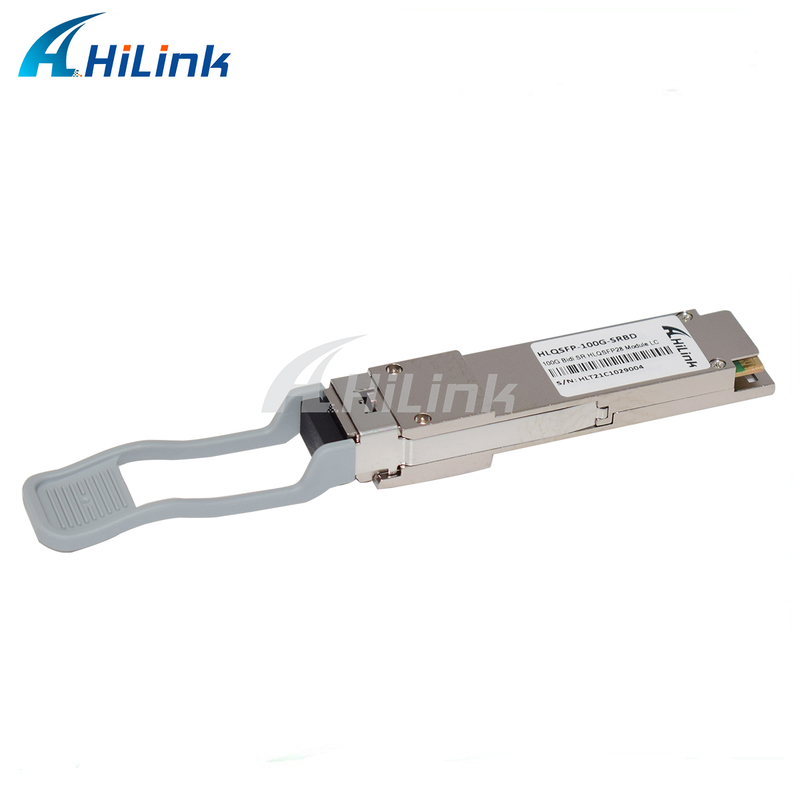

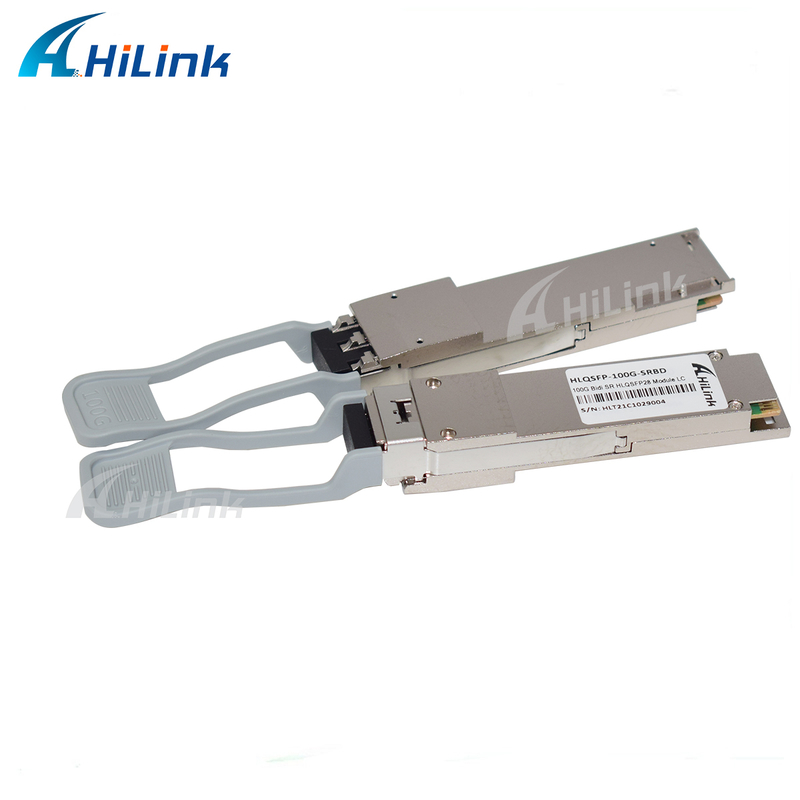

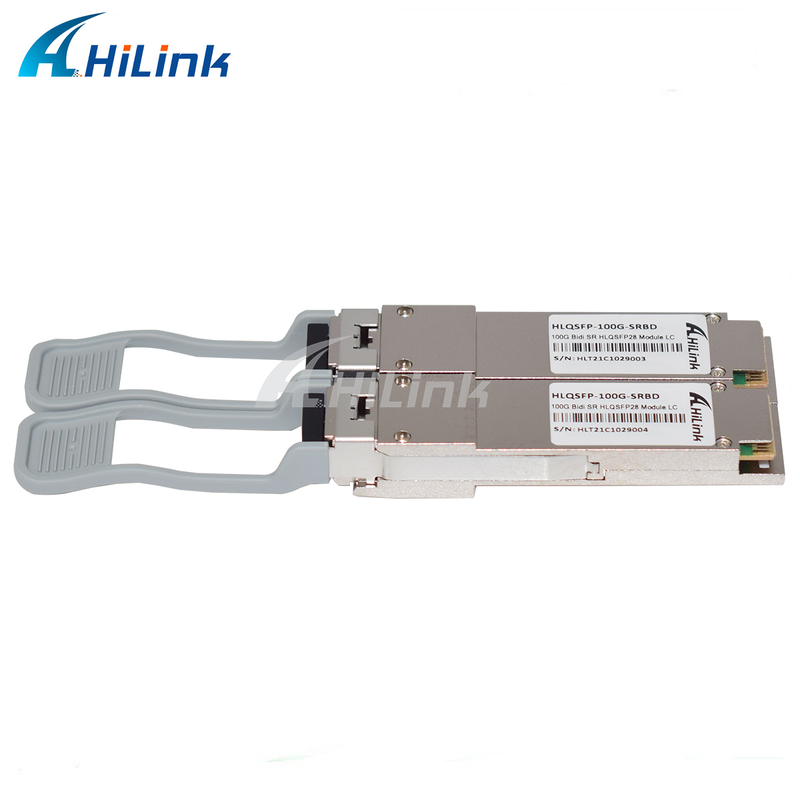

Name: 100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP28-100G-SRBD
Price: 425.00 USD
Availability: InStock

Home > products > Optical Transceiver Module >

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

QSFP28 SRBD optical transceiver

100G Bi-Di duplex LC module

PAM4 multimode transceiver 850/900nm

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-QSFP28-100G-SRBD

Request A Quote

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Product Details

Product Name:

QSFP28 100G SRBD 100M

Data Rate:

100G

Distance:

100m

Connector:

+3.3VC

Tem:

0 To 70°C

Warranty:

3 Years

Certification:

CE RoHS

Delivery Time:

3-7workingdays

OEM:

Support

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

EXW: 400USD/PCS~450USD/PCS

Packaging Details

Normal Package Or OEM

Delivery Time

5-8 Working days

Payment Terms

L/C,T/T,Western Union

25G SFP28 BIDI Optic Module Fiber Connector LC 0 to 70C 3km/10km/40km/60km

Get Best Price

Video

25Gb/s SFP28 BIDI 60km DDM Transceiver

Get Best Price

25G SFP28 BIDI 50km 1270/1310nm Module

Get Best Price

100G QSFP28 SWDM4 Optical Transceiver 150m OM5 MMF LC RoHS

Get Best Price

86-755-8317-6243

Contact Now

Product Description

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Features

Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps

Applications

100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

Description

It is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface.

The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.
