OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector

OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector

800G optical transceiver MPO connector

OSFP800 fiber optic transceiver 12V

2xSR4 optical transceiver module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-OSFP-800G-RR8

Contact Us
Request A Quote
OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector
OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector
Product Details
Data Rate:
800Gb/s
Distance:
50M
Connector:
MPO12(APC)
Warranty:
3 Years
Package:
OSFP
CE FCC:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C,T/T,Western Union.Paypal
Supply Ability
100/PCS/MONTH
RELATED PRODUCTS
Good price Hilink 25G SFP28 Optical Transceiver with 100M Distance 3 Years Warranty and CE RoHs Certified online

Hilink 25G SFP28 Optical Transceiver with 100M Distance 3 Years Warranty and CE RoHs Certified

Get Best Price
Good price HL-QSFP200G-SR4 200G QSFP56 SR4 Optical Transceiver online Video

HL-QSFP200G-SR4 200G QSFP56 SR4 Optical Transceiver

Get Best Price
Good price 800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m online Video

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

Get Best Price
Good price 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module 400G QSFPDD 850nm 100m SR4 MPO Generic Compatible online Video

400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module 400G QSFPDD 850nm 100m SR4 MPO Generic Compatible

Get Best Price
Contact Us
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector
This product is a 800Gb/s OSFP800 2xSR4 optical module designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.
On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data. An optical fiber cable with dual MPO12-APC connectors can be plugged into the OSFP 800G 2xSR4 module receptacle. Host FEC is required to support up to 100m fiber transmission.
Key Features
  • Up to 106.25 Gb/s data rate per channel by PAM4 modulation
  • Support 800GAUI-8 electrical interface
  • Integrated 850nm VCSEL array and PD array
  • DDM function implemented
  • Hot-pluggable
  • Single +3.3V power supply
Technical Specifications
Compliance OSFP MSA 5.0, CMIS 4.0
Electrical Interface 8x106.25Gb/s (800GAUI-8)
Maximum Power Consumption 15W
Power Supply Single +3.3V
Operating Temperature 0°C to +70°C
Environmental Compliance RoHS 2.0 compliant
Applications
  • Data Center Interconnect
  • 800G Ethernet
  • Infiniband interconnects
  • Enterprise networking
Product Images

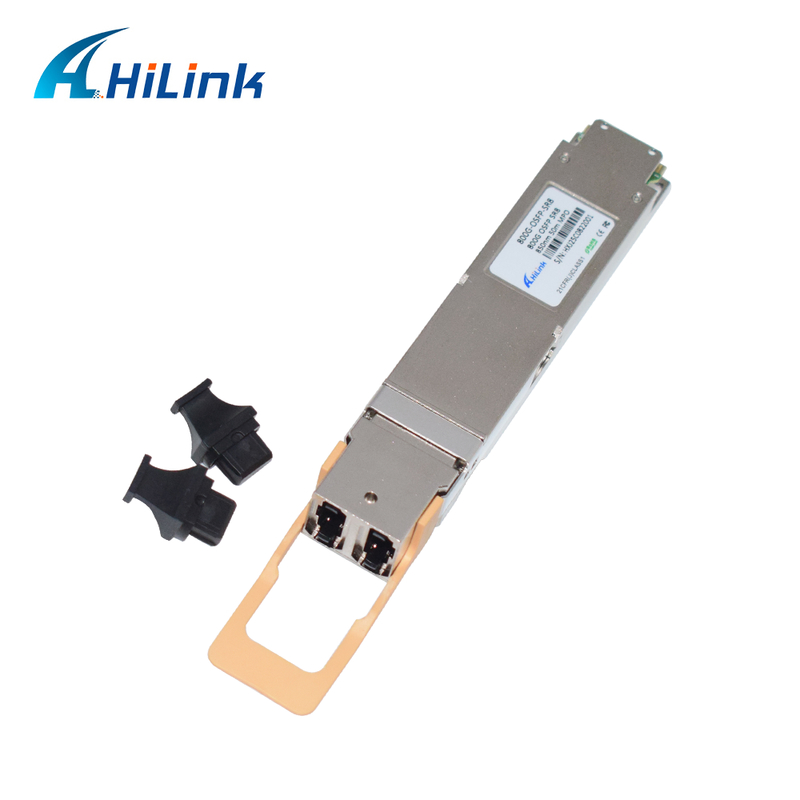

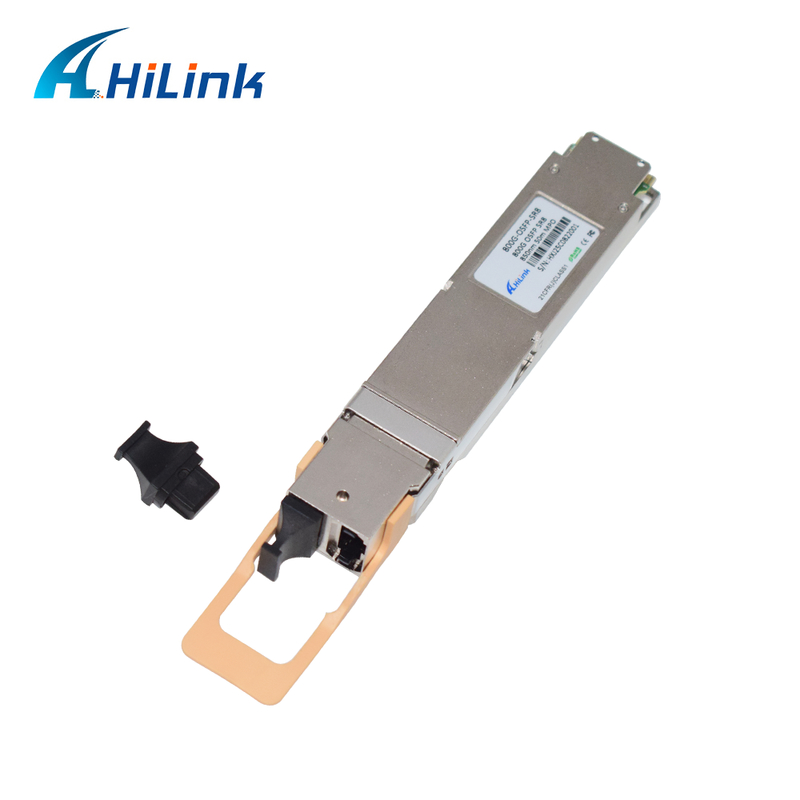

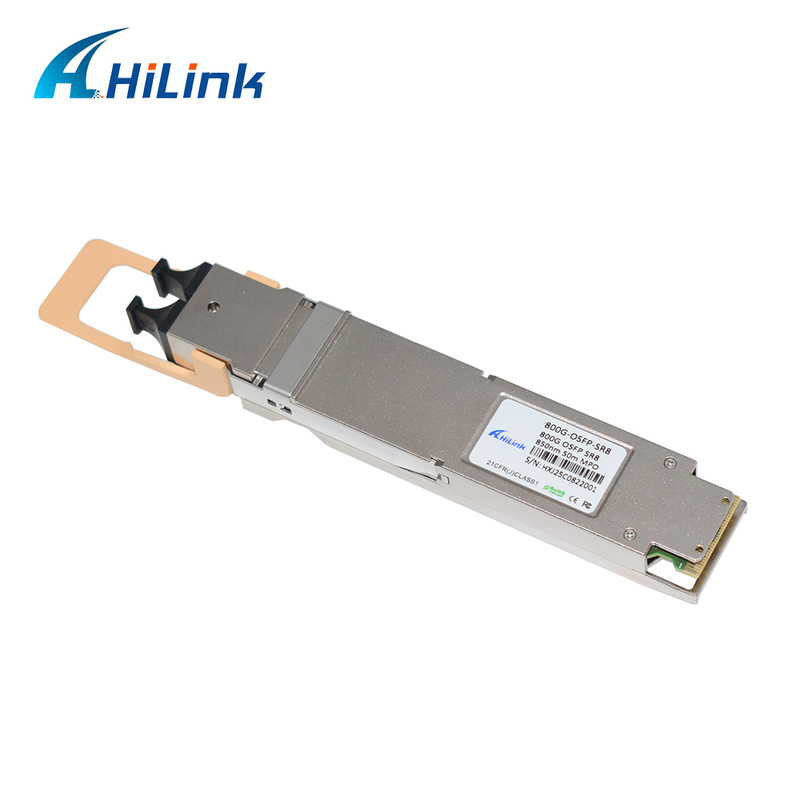

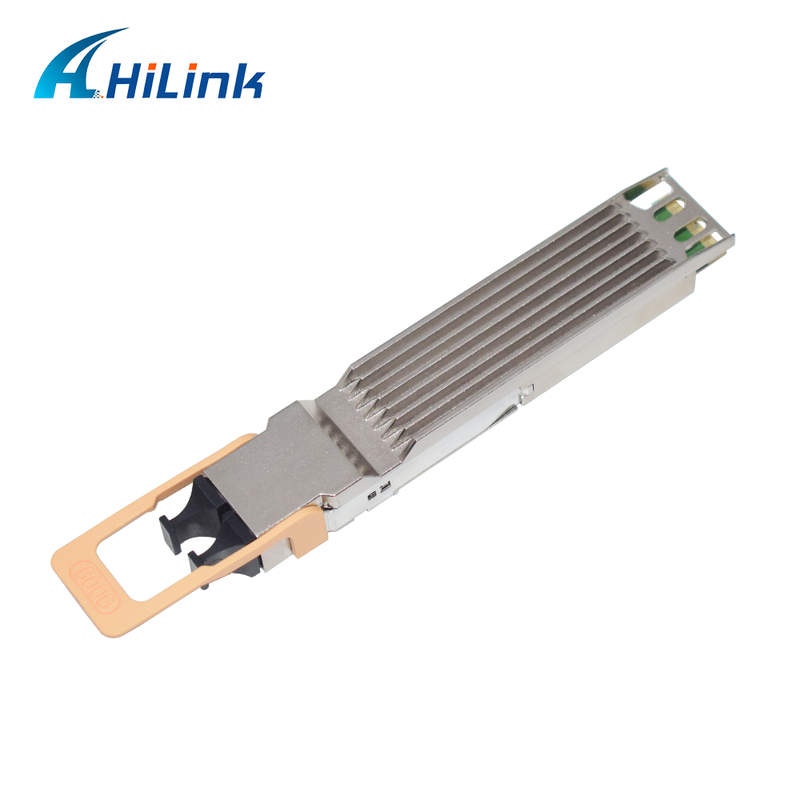

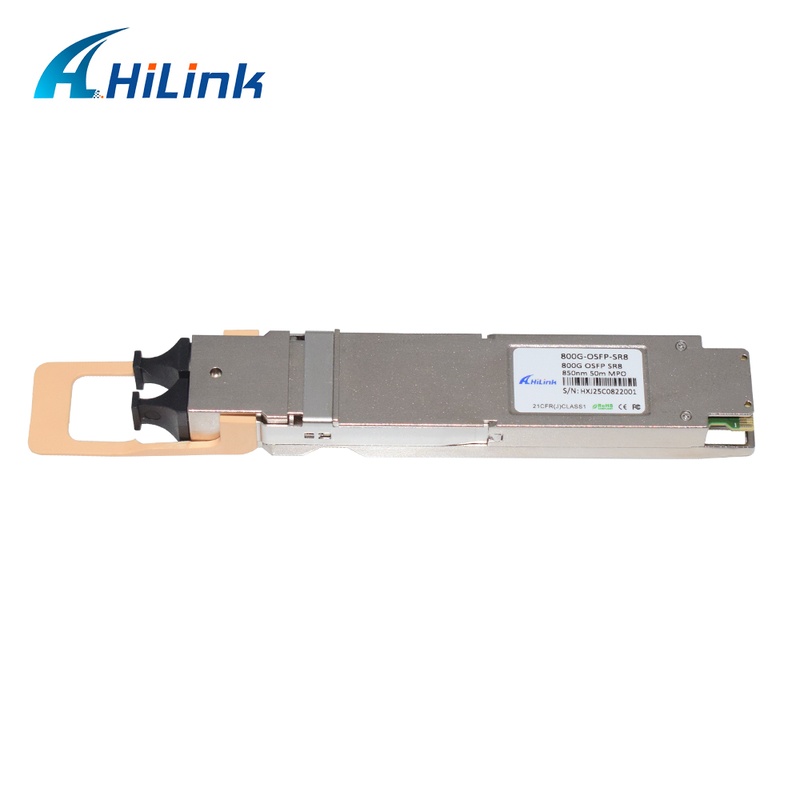

OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector 0 OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector 1 OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector 2 OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector 3
Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, we never use second-hand components.
What payment terms do you accept?
T/T, Paypal, Western Union are acceptable.
What are the shipping ways can you offer?
Our usual shipping ways are DHL, FedEX, TNT, UPS, EMS etc. It will take 3-7 days.
Do your products come with warranty?
Yes, We provide 3 years warranty for all our products from the date of shipment.
How to place an order?
  1. Order details confirmed, please tell us the model and quantity you need.
  2. Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
  3. Confirm and ship the goods, then tracking number will be sent to you promptly.
  4. We will help to track your goods until you receive them safely.
As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will follow up shortly.
