400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

400G-QSFPDD-ZR

Contact Us
Request A Quote
400G QSFP-DD ZR Coherent Transceiver 0-75℃
Product Details
Product Name:
400G-QSFPDD-ZR
Data Rate:
400G
Operating Temperature:
0 To 75℃
Payment & Shipping Terms
Minimum Order Quantity
1 pieces
Price
Send Inquiry know latest price
Packaging Details
Plastic box+Carton
Delivery Time
5-8 working day
Payment Terms
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability
2000 Pieces/Week
RELATED PRODUCTS
Good price 100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver online

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Get Best Price
Good price OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector online Video

OSFP800 800G 2xSR4 Optical Transceiver 12V Fiber Optic Transceiver MPO Connector

Get Best Price
Good price 100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode online

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Get Best Price
Good price 25G SFP28 BIDI Optic Module Fiber Connector LC 0 to 70C 3km/10km/40km/60km online

25G SFP28 BIDI Optic Module Fiber Connector LC 0 to 70C 3km/10km/40km/60km

Get Best Price
Contact Us
+86 15917174650
sales05@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
400G QSFP-DD ZR Coherent Transceiver 0-75℃
Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features
  • QSFP-DD MSA compliant type 2B package
  • Up to 120Km transmission distance
  • Client signal 400GbE or 4x100GbE
  • Line Modulation format 400G DP-16QAM
  • C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
  • TX power -13dBm~-9dBm tunable
  • Support ingress LF hold-off time configure
  • Support hitless firmware upgrade
  • Compact size (18.35 mm × 93.26 mm × 8.50 mm)
  • Duplex LC Receptacle
  • Operating case temperature: 0℃ to 75°C
  • Maximum power consumption 18W (400GbE)
  • Single 3.3 V power supply
  • RoHS 2 compliant
Applications
  • Edge DCI 400GBASE-ZR application
  • 30~40Km unamplified 400GbE P2P link
  • Up to 120Km P2P link with amplification
Product Images

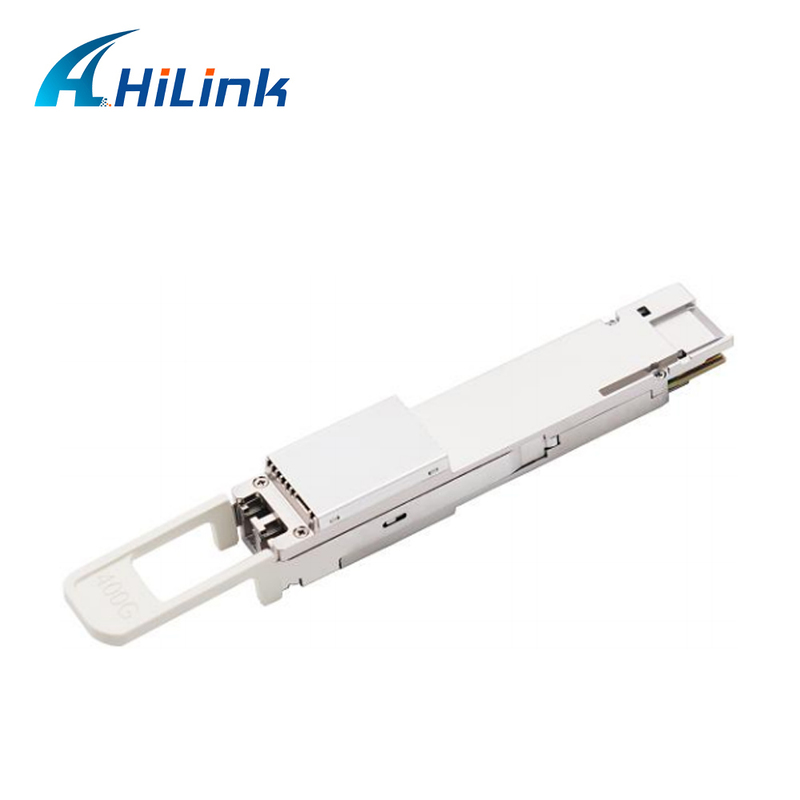

400G QSFP-DD ZR Coherent Transceiver 0-75℃ 0
Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
