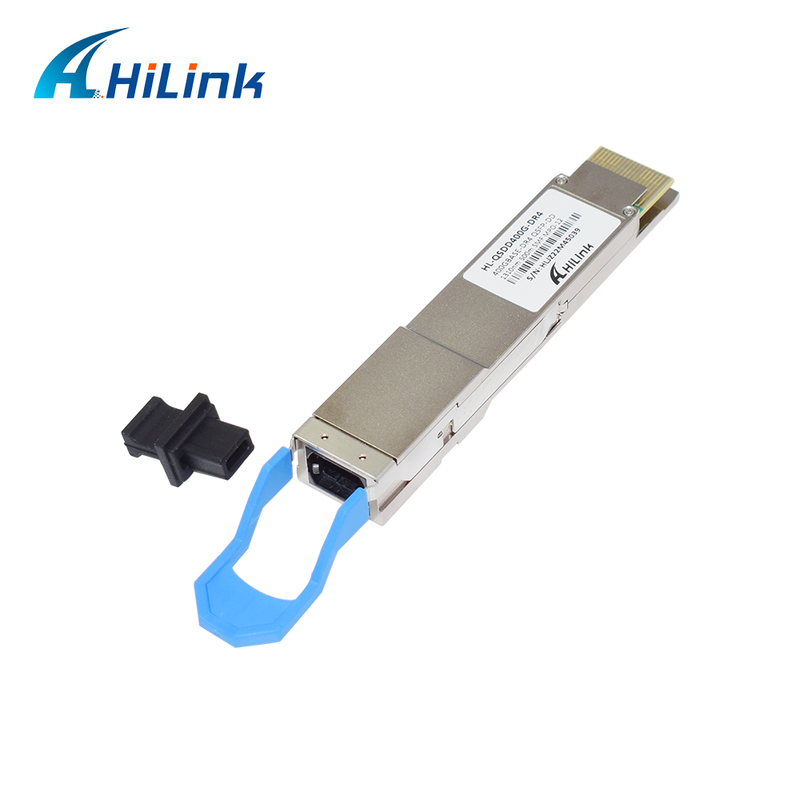

Name: QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFPDD-400G-DR4
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFPDD-400G-DR4

Request A Quote

QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver

Product Details

Data Rate:

400G

Distance:

500M

Connector:

MPO-12 Connector

Wavelength:

1310nm

Package:

Fiber Optic

Application:

Telecommunication

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Payment Terms

L/C, T/T, Western Union.Paypal

Supply Ability

100/PCS/MONTH

400GBASE-ER4 QSFPDD 1310NM 40KM 400G Ethernet Transceiver LC SMF DOM

Get Best Price

25G SFP28 SR MMF Fiber Optic Module 850nm 100m GBIC Optical Transceiver Industrial Temperature

Get Best Price

QSFP28 100G Optical Transceiver Module with 40km Reach, Low Power Consumption (<4.5W), and RoHS 6/6 Compliance for Data Centers

Get Best Price

Video

10Gbps 850nm 300m Multimode SFP+ Module Hot-pluggable Fiber Optic Transceiver with DDM Function

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver

General:

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP DD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant edge type connector.

Features:

QSFP-DD MSA compliant

Parallel 4 Optical lanes

IEEE 802.3bs 400GBASE-DR4 Specification Compliant

Up to 500m transmission on single mode fiber(SMF) with FEC

Operating case temperature: 0 to 70℃

8x53.125Gb/s electrical interface (400GAUI-8)

Data Rate 106.25Gbps (PAM4) per channel.

Maximum power consumption 12W

MPO-12 connector

RoHS Compliant

Applications

400GBASE-DR4 Ethernet links

Data centers

Telecom networking

Related Product:

QSFP28-100G-SR4	100GBASE-SR4 850nm 100M LC
QSFP28-100G-LR4	100GBASE-LR4 1310nm 10KM LC
QSFP28-100G-ER4	100GBASE-ER 1310nm 40KM LC
QSFP28-100G-ZR4	100GBASE-ZR 1310nm 80KM LC
QSFP56-200G-SR4	200GBASE-SR4 850nm 100M MPO
QSFP56-200G-FR4	200GBASE-DR4 1310nm 2KM MPO
QSFPDD-400G-SR8	400GBASE-SR8 850nm 100M MPO
QSFPDD-400G-DR4	400GBASE-DR4 1310nm 500M MPO

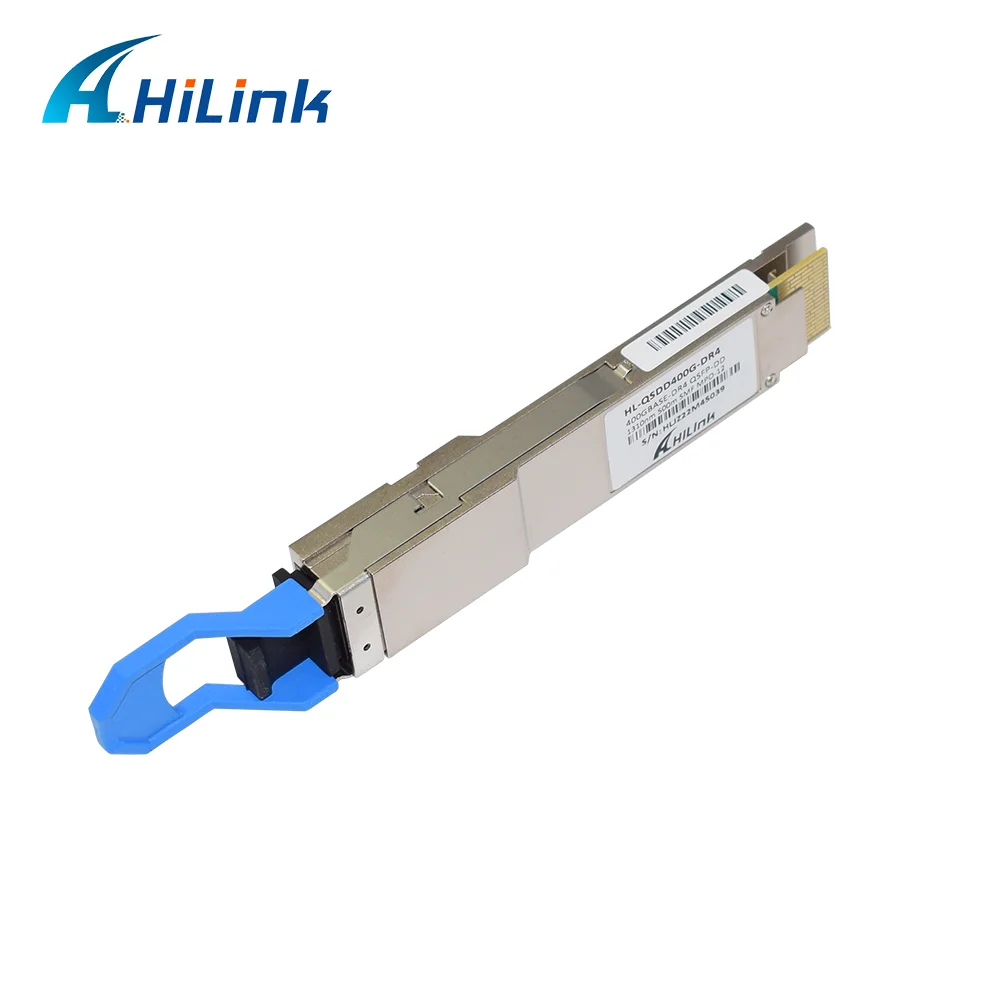

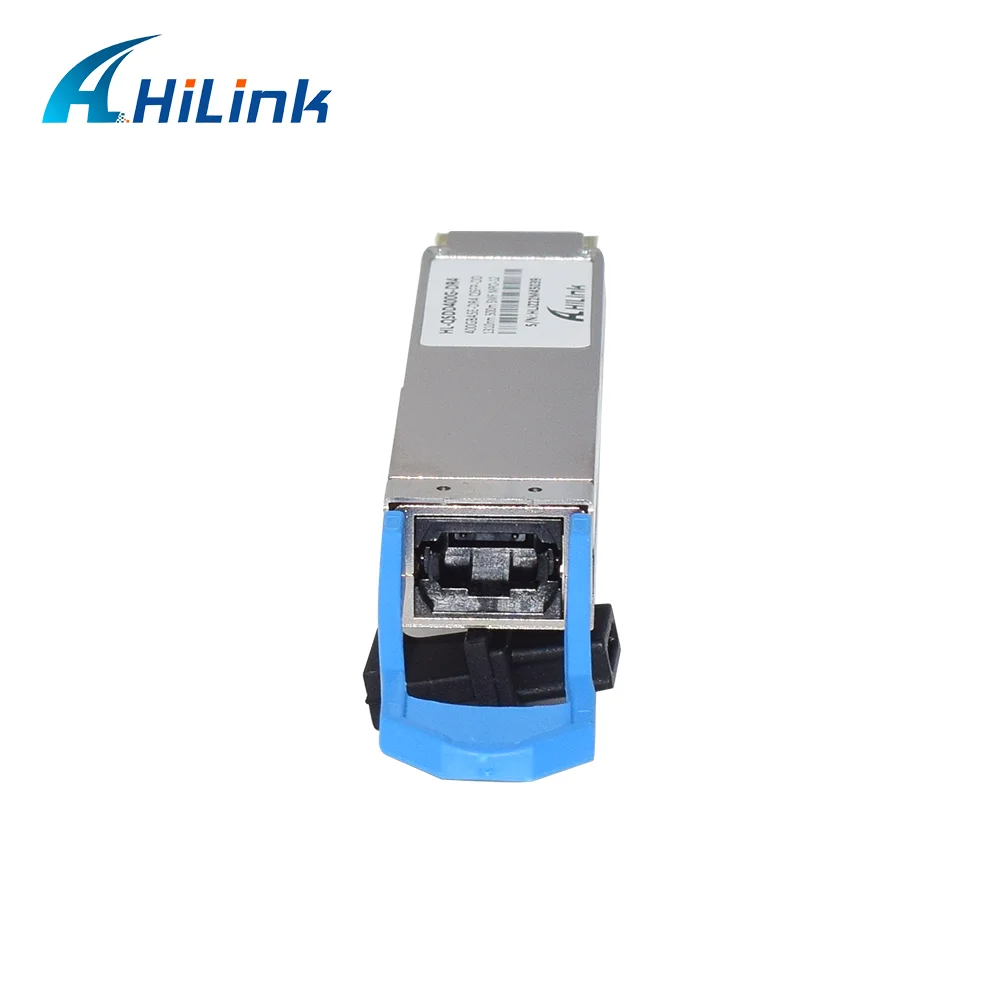

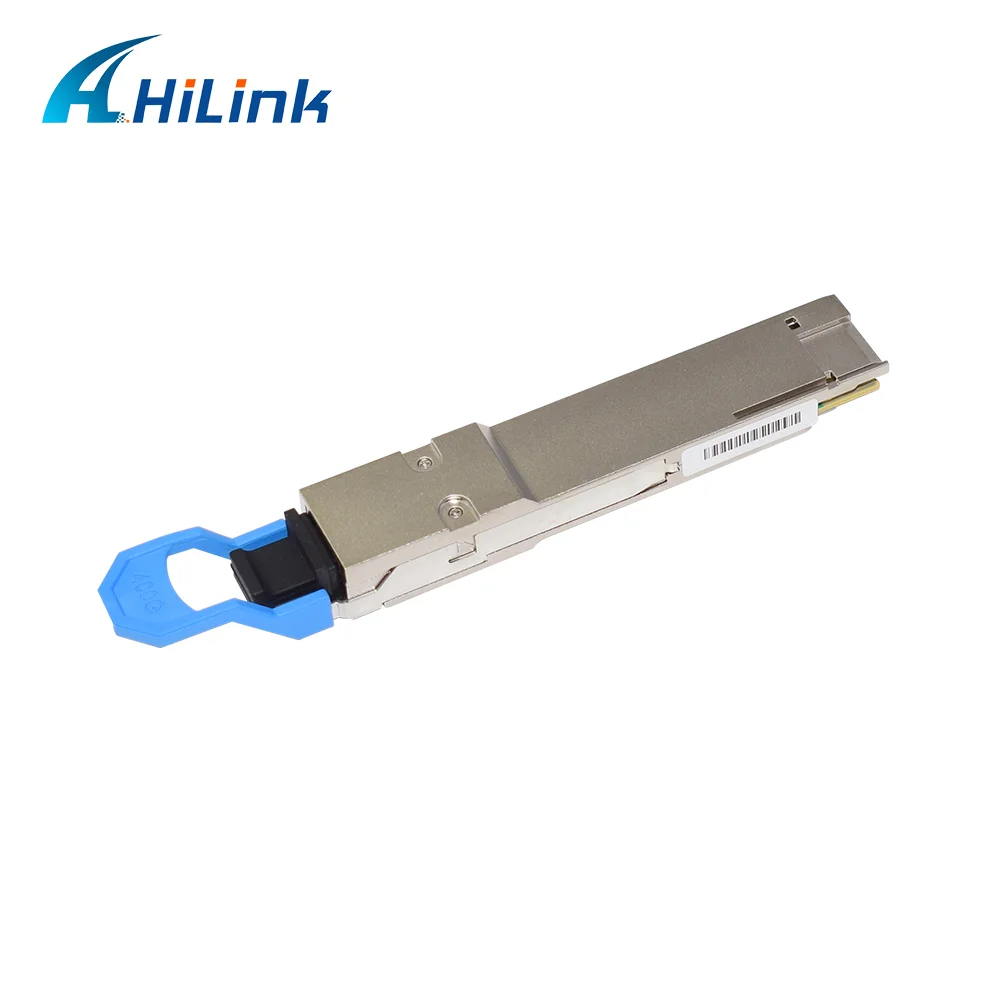

Product picture shows:

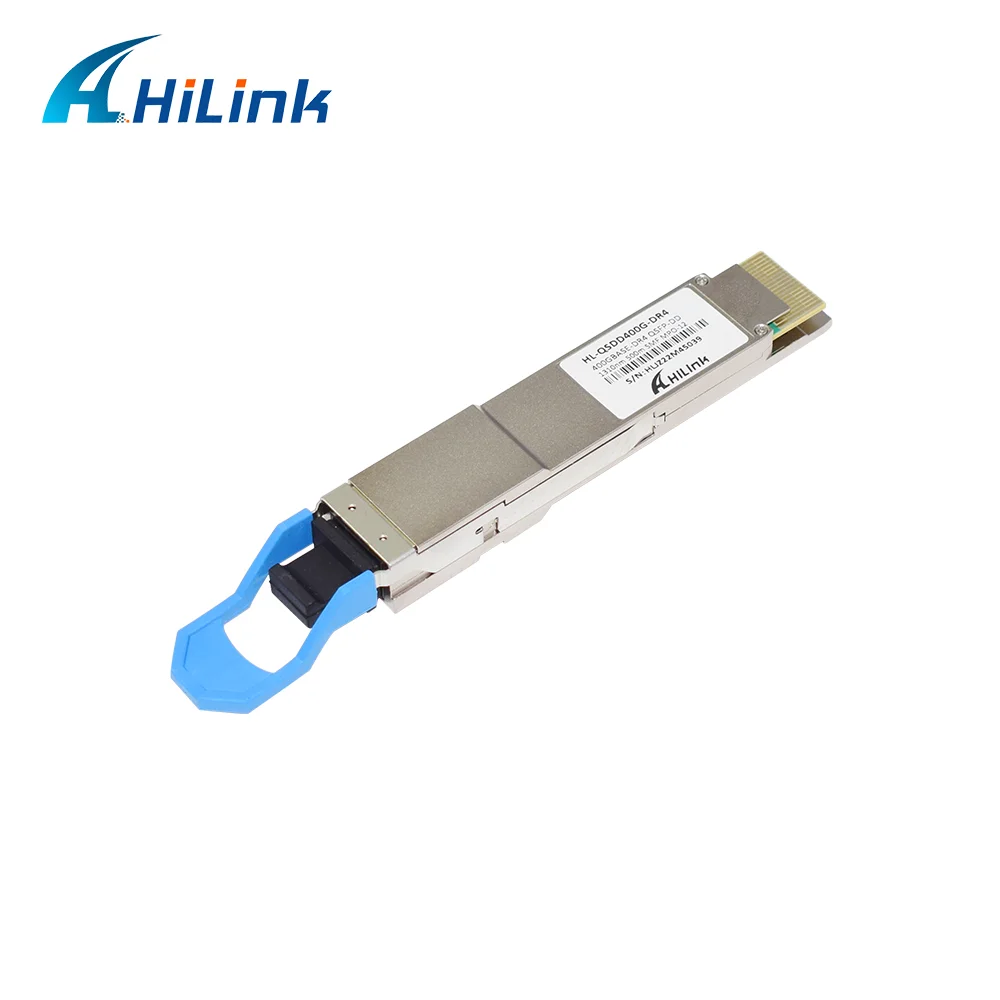

QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver 0

Mechanical Drawings

QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver 4

Application

FAQ:

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
