400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

400G OSFP transceiver module

1310nm EML laser transceiver

500m transmission OSFP module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

OSFP-400G-DR4

Contact Us
Request A Quote
400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission
400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission
Product Details
Product Name:
400G OSFP 1310nm 500m DR4
Data Rate:
400GBASE OSFP
Reach:
500m
Transmitter:
EML
Fiber Connector:
MPO-12
Operating Temperature:
0 To 70℃
Payment & Shipping Terms
Minimum Order Quantity
1 pieces
Price
Send Inquiry know latest price
Packaging Details
Plastic box+Carton
Delivery Time
6-12 working day
Payment Terms
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability
10 Pieces/Week
RELATED PRODUCTS
Good price Hilink Customized MTP/MPO Patchcord Cables online

Hilink Customized MTP/MPO Patchcord Cables

Get Best Price
Good price Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver online

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Get Best Price
Good price Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial online

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial

Get Best Price
Good price Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module online

Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

Get Best Price
CONTACT US
+86 15917174650
sales05@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission
Product Overview

OSFP-400G-DR4 transceiver is engineered for 400Gb/s network applications with a maximum transmission distance of 500 meters. This fully integrated optical transceiver utilizes 4-level pulse amplitude modulation (PAM4) format, transmitting and receiving optical signals at an aggregated data rate of 425Gbps over four 1310nm lanes, each operating at 106.25Gbps. Compliant with OSFP Module Specification and RoHS standards, it efficiently uses only four electrical channels.

Key Features
  • Compliant with IEEE Std 802.3bs on 400Gb/s Optical interfaces
  • Compliant with IEEE Std 802.3ck on 400Gb/s Electrical interfaces
  • Compliant with OSFP Module Specification
  • Compliant with CMIS5.0 Management interface specifications
  • MPO-12 receptacle
  • 1310nm EML laser
  • 4*53.125GBd PAM4 electrical interface
  • Transmission distance up to 500m SMF
  • Single +3.3V power supply
  • Commercial operating temperature: 0°C to +70°C
  • RoHS Compliant
Applications
  • 400G BASE-DR4 Ethernet
  • Data Center infrastructure

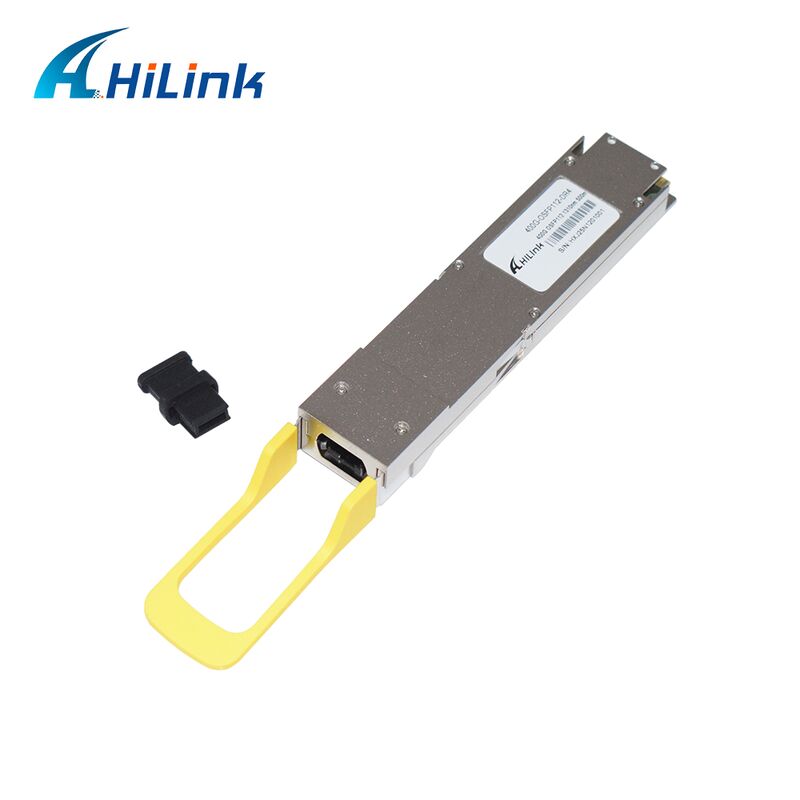

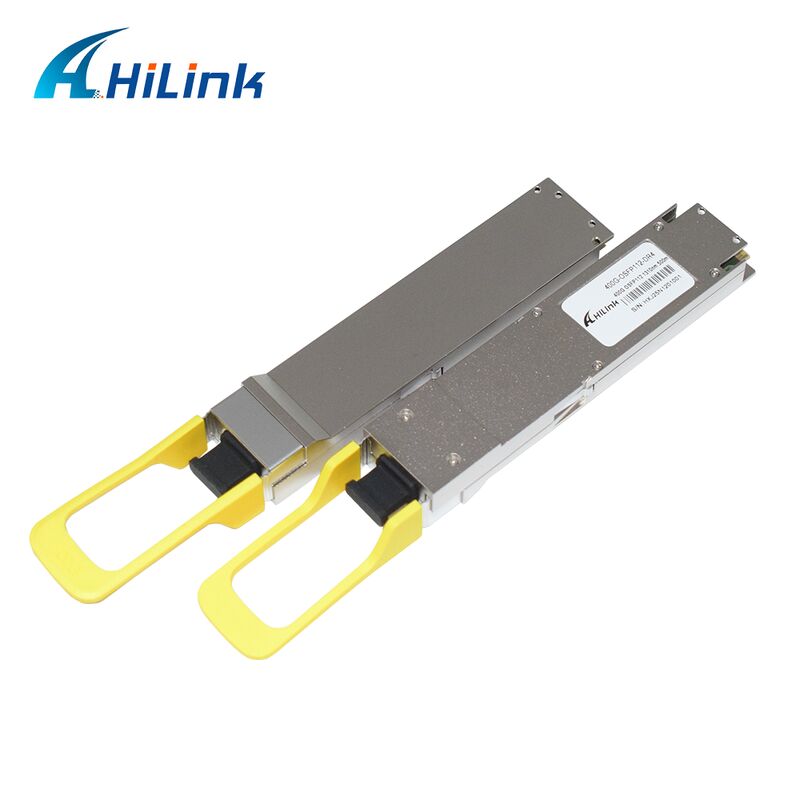

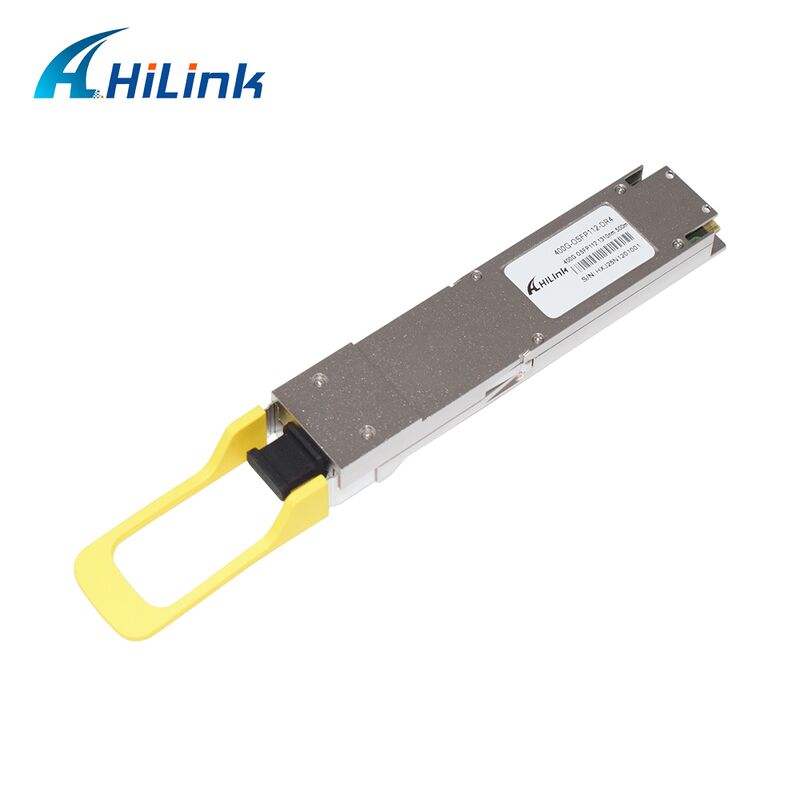

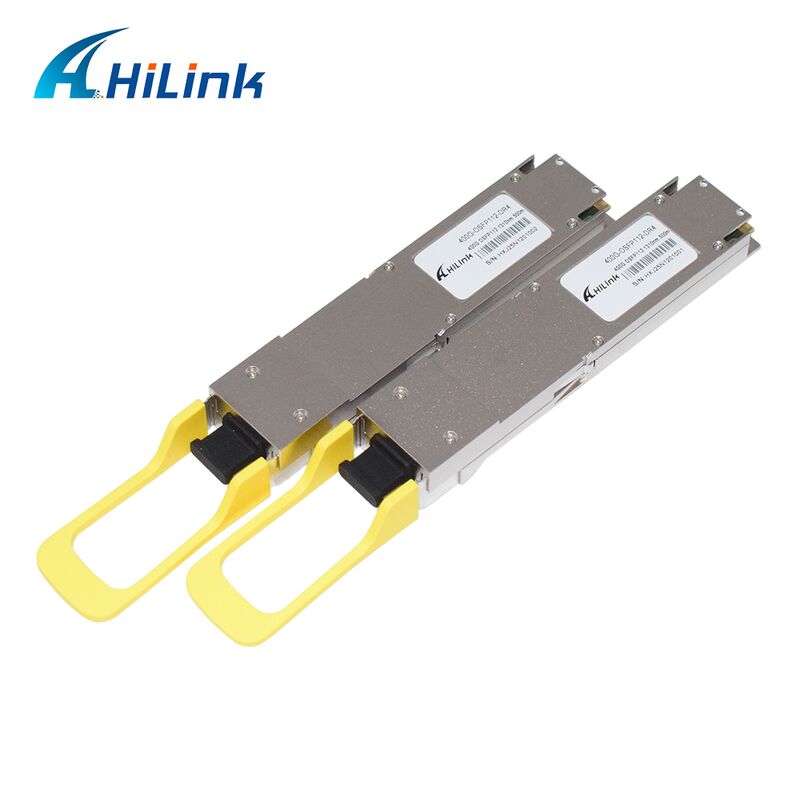

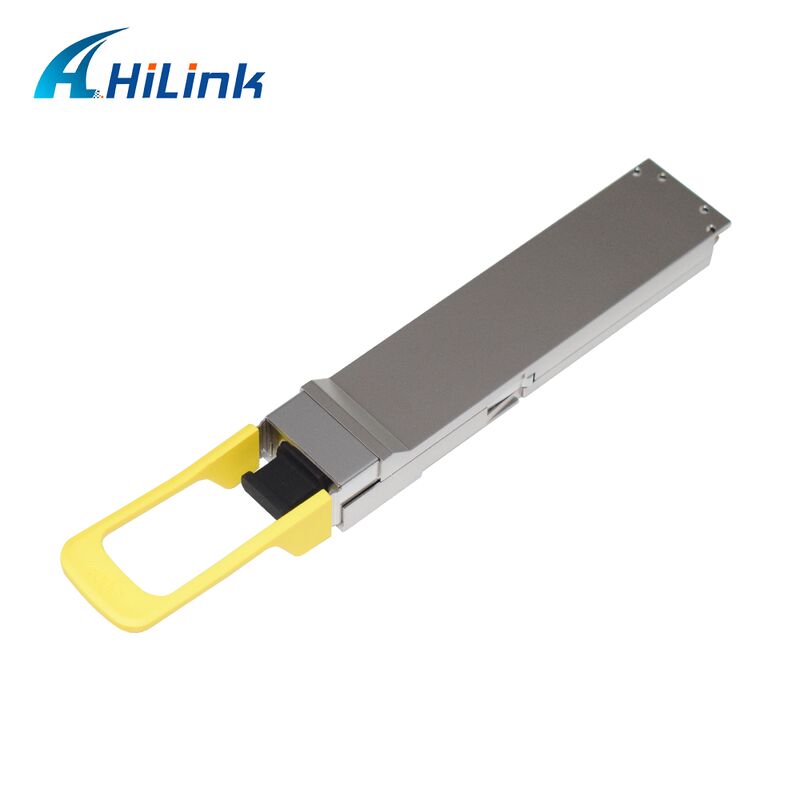

Product Images
400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 0 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 1 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission 2
Quality & Service

OEM/ODM orders are available. All optical modules are manufactured with premium materials and undergo rigorous functional and aging tests to ensure reliability. We provide a comprehensive 3-year warranty from the date of shipment for all optical transceivers.
