OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function

OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function

800G OSFP optical transceiver

OSFP800 SR4 transceiver with DDM

850nm 100m optical transceiver module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-OSFP800G-2xSR4

Contact Us
Request A Quote

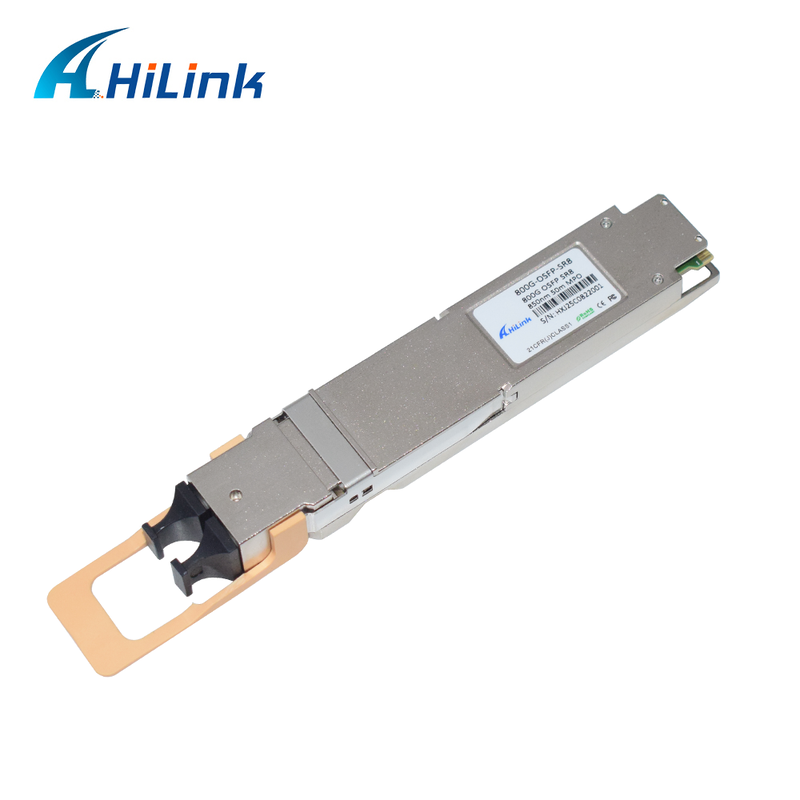

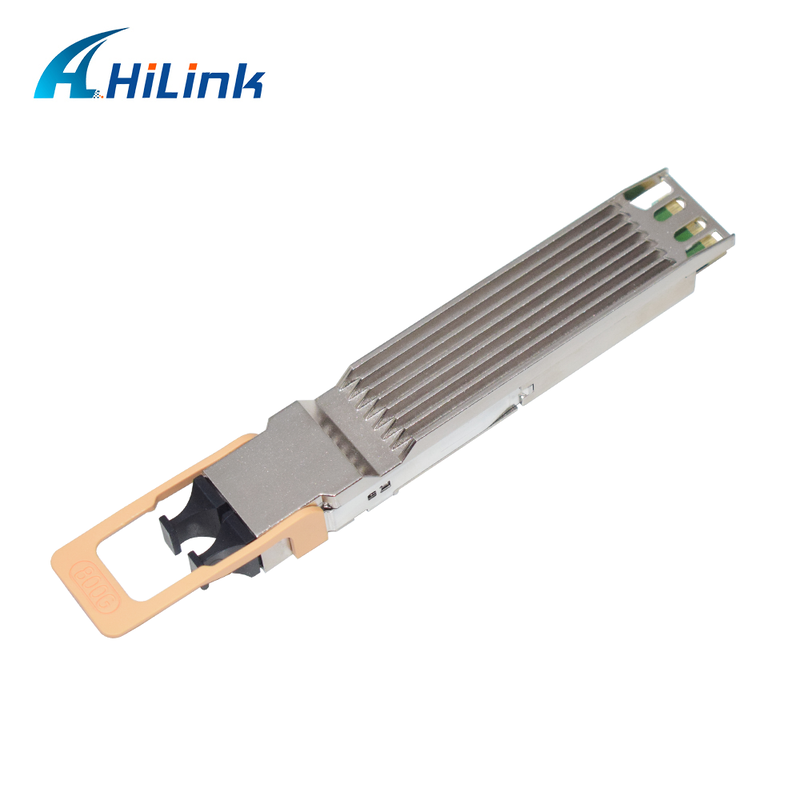

OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function
Product Details
Product Name:
OSFP800G-2xSR4
Data Rate:
800G
Distance:
100m
Tem:
0 To 70°C
Warranty:
3 Years
Certification:
RoHS 2.0
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price 100G QSFP28 SWDM4 Optical Transceiver with 150m Distance OM5 MMF and Digital Diagnostics for Ethernet Links online

100G QSFP28 SWDM4 Optical Transceiver with 150m Distance OM5 MMF and Digital Diagnostics for Ethernet Links

Get Best Price
Good price 400G QSFP-DD ZR Pro Coherent Transceiver 0-75℃ online

400G QSFP-DD ZR Pro Coherent Transceiver 0-75℃

Get Best Price
Good price OSFP-400G-DR4 400GBASE-DR4EML PIN 1310nm 500M MPO-12 OSFP Transceiver online

OSFP-400G-DR4 400GBASE-DR4EML PIN 1310nm 500M MPO-12 OSFP Transceiver

Get Best Price
Good price 400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission online

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

Get Best Price
CONTACT US
Contact Now
Product Description
OSFP800 800G 2xSR4 Optical Transceiver 850nm 100m DDM Function
This 800Gb/s OSFP800 2xSR4 optical module is designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.
On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data.
An optical fiber cable with dual MPO12-APC connectors can be plugged into the OSFP 800G 2xSR4 module receptacle. Host FEC is required to support up to 100m fiber transmission.
Key Features
  • Up to 106.25 Gb/s data rate per channel by PAM4 modulation
  • Support 800GAUI-8 electrical interface
  • Integrated 850nm VCSEL array and PD array
  • DDM function implemented
  • Hot-pluggable design
  • Single +3.3V power supply
Technical Standards
  • Compliant to OSFP MSA 5.0
  • Compliant with CMIS 4.0
  • 8x106.25Gb/s electrical interface (800GAUI-8)
  • Maximum power consumption: 15W
  • Single +3.3V power supply
  • Case temperature range: 0°C to +70°C
  • RoHS 2.0 compliant
Applications
  • Data centers
  • Cloud networks
Product Images

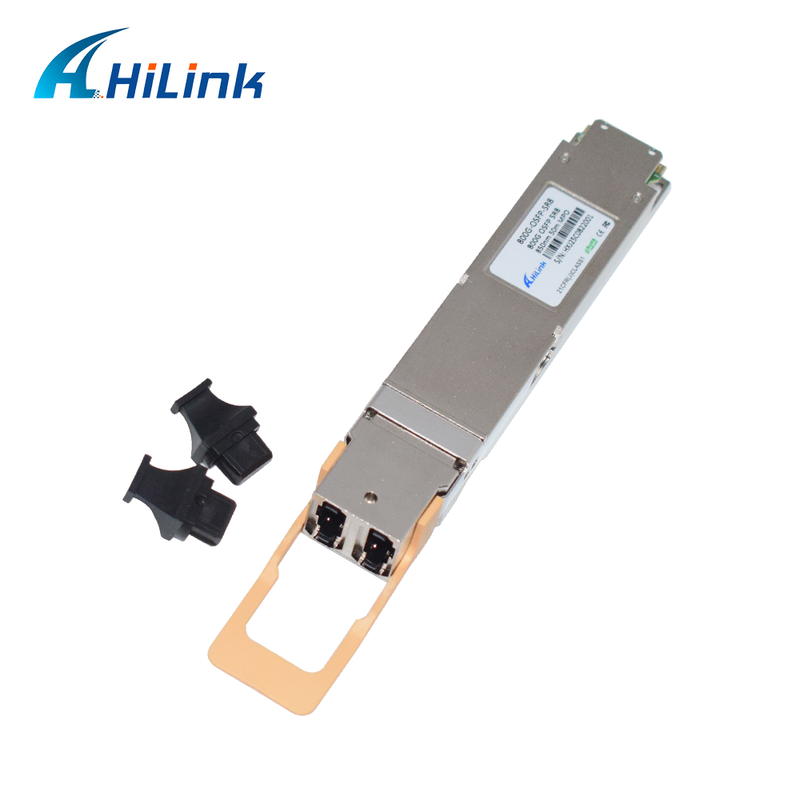

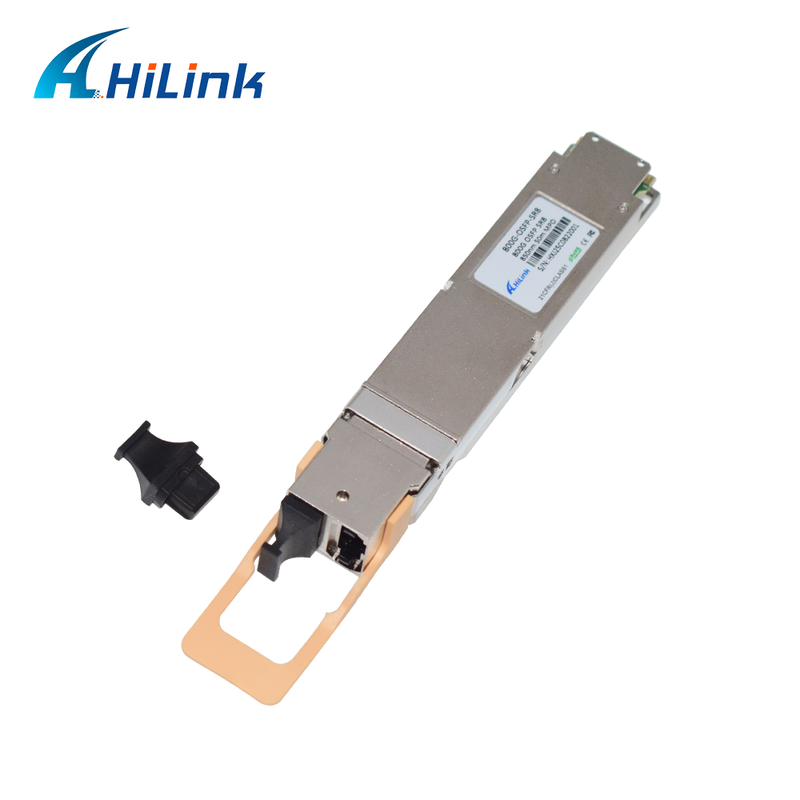

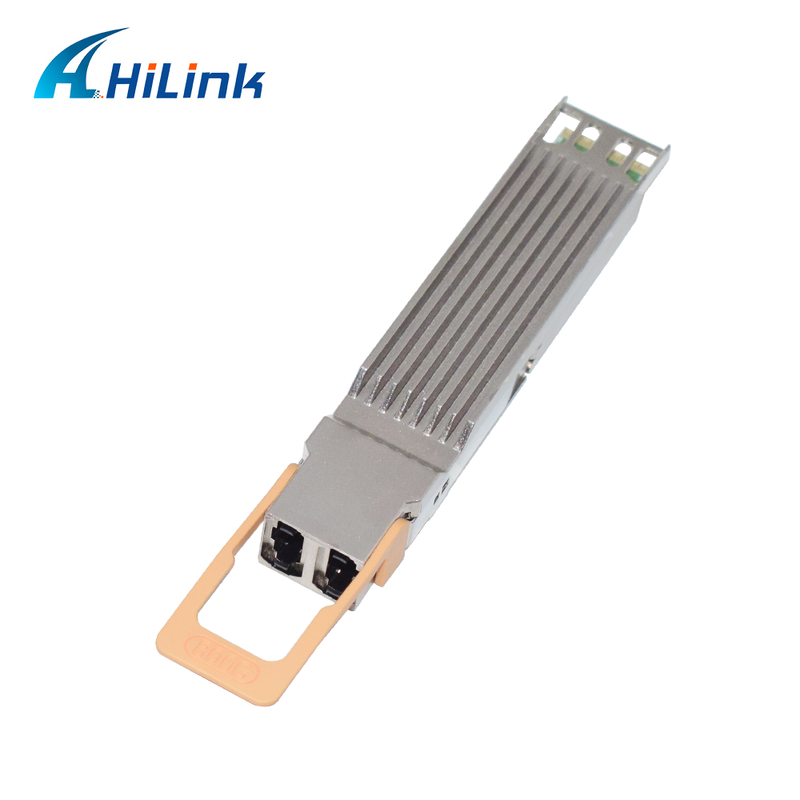

OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function 0 OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function 1 OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function 2 OSFP800 800G 2xSR4 Optical transceiver 850nm 100m DDM function 3
Company Information
OEM/ODM orders are available.
Quality Guarantee
We promise all advertised optical transceivers are brand new with new components and parts, absolutely never using old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
Product Range
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most brands. For more details, please contact us.
Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, and we never use second-hand components.
What payment terms do you accept?
T/T, PayPal, and Western Union are acceptable.
What are the shipping methods you offer?
Our usual shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
Do your products come with warranty?
Yes, we provide a 3-year warranty for all our products from the date of shipment.
What devices are your products compatible with?
Our products are compatible with mainstream switches.
How to place an order?
1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help track your goods until you receive them safely.
