QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver

QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver

QSFP-DD DR4 transceiver 400Gb/s

1310nm MPOFiber optic transceiver

QSFP-DD transceiver with 500M range

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFPDD-400G-DR4

Contact Us
Request A Quote
QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver
Product Details
Data Rate:
QSFPDD 400G
Distance:
500M
Connector:
MPO-12 Connector
Wavelength:
1310nm
Package:
Fiber Optic
Application:
Telecommunication
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
100/PCS/MONTH
RELATED PRODUCTS
Good price Hilink Customized MTP/MPO Patchcord Cables online

Hilink Customized MTP/MPO Patchcord Cables

Get Best Price
Good price Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver online

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Get Best Price
Good price Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial online

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial

Get Best Price
Good price Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module online

Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

Get Best Price
CONTACT US
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPO Fiber Optic Transceiver
Product Overview

The QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPO Fiber Optic Transceiver Module is designed for 500m optical communication applications and is compliant with the 100G Lambda MSA standard. This module converts 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals.

Key Features
  • Up to 50Gbps data rate per channel by PAM4 modulation
  • 4 channels transmitters and PIN receivers
  • 8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
  • Maximum power consumption: 9 W
  • MPO-12 connector
  • Up to 500m transmission on single mode fiber
  • Operating case temperature: 0°C to 70°C
  • Single 3.3 V power supply
  • QSFP-DD MSA compliant rev4.0 compliant
  • Compliant to IEEE 802.3cu
Applications
  • Data Center 400GE 500m SMF links
  • 4:1 breakout with 100GBASE-DR
  • Upgrading 100G PSM4 to 400G
  • Switch/Router interconnections
Standards Compliance
  • 400G BASE-DR4 Ethernet
  • Data Center standards
Order Information
Part No. Package Data Rate Laser Optical Power Detector Sensitivity Temperature Reach Other Application
HL-400G-QDD-DR4 QSFP-DD 400G EML -2.9~4dBm PIN Max (-3.9, SECQ - 5.3) 0~70℃ 500m DDM 400G Ethernet

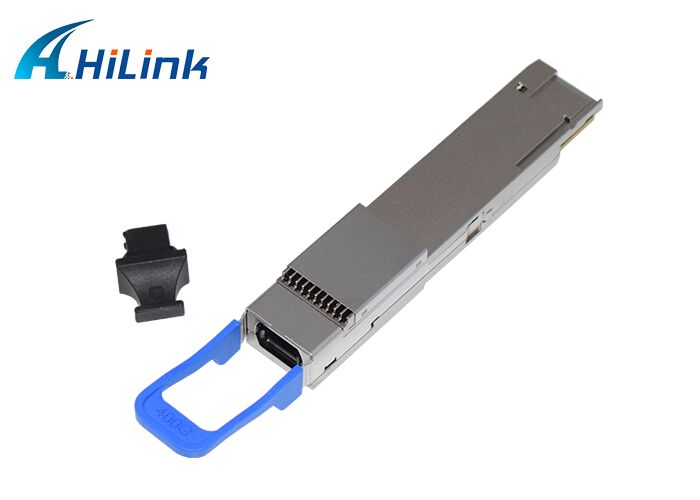

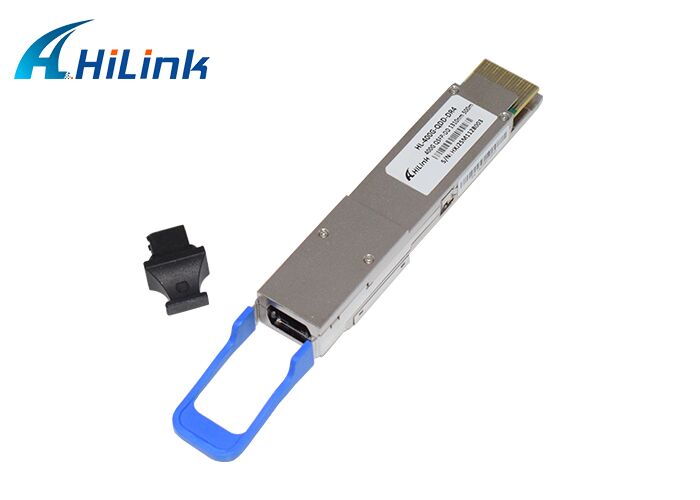

Product Images
QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 0 QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 1 QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 2 QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 3
Mechanical Dimensions
QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 4
Company Information

Shenzhen Hilink Technology Co., Ltd. specializes in manufacturing and marketing fiber optic products and was founded in 2007.

RoHS, ISO & CE certified, we are a golden supplier with 10+ years of experience in this field, offering superior quality, competitive pricing, and effective solutions.

Our core competencies include fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, and solutions for DWDM, CWDM, WDM, MPO, AAWG, etc.

We maintain an independent Research & Development Department with 8 skilled engineers, equipped with advanced testing equipment including switches and routers for comprehensive testing procedures.

We welcome new and existing customers to visit our factory and office for further cooperation opportunities.

QSFP-DD 400Gb/s 1310nm 500M QSFP-DD DR4 PAM4 MPOFiber Optic Transceiver 5
Frequently Asked Questions
Q: Do you sell second-hand products?
A: No. All our products are brand new, and we never use second-hand components.
Q: What payment terms do you accept?
A: T/T, PayPal, and Western Union are acceptable.
Q: What shipping methods do you offer?
A: Our usual shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
Q: Do your products come with warranty?
A: Yes, we provide a 3-year warranty for all our products from the date of shipment.
Q: How to place an order?
A:
  1. Confirm order details - provide the model and quantity you need
  2. Confirm Proforma Invoice - order will be arranged upon receipt of payment
  3. We confirm and ship the goods, then provide tracking number promptly
  4. We help track your goods until safe receipt
As we have various kinds of products, if you can't find the correct item you need, please send us an inquiry. We will follow up shortly.
