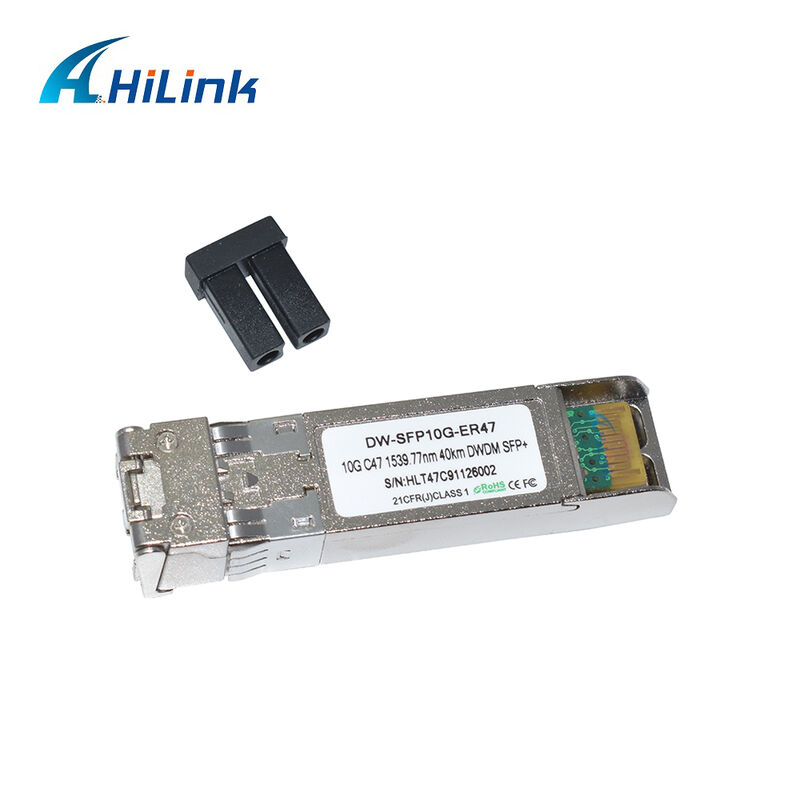

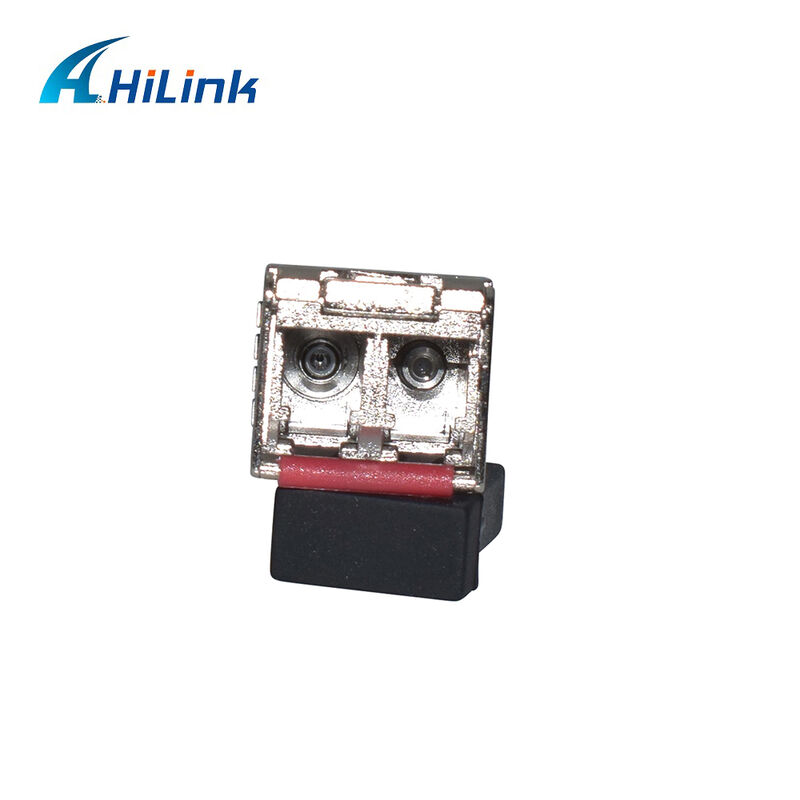

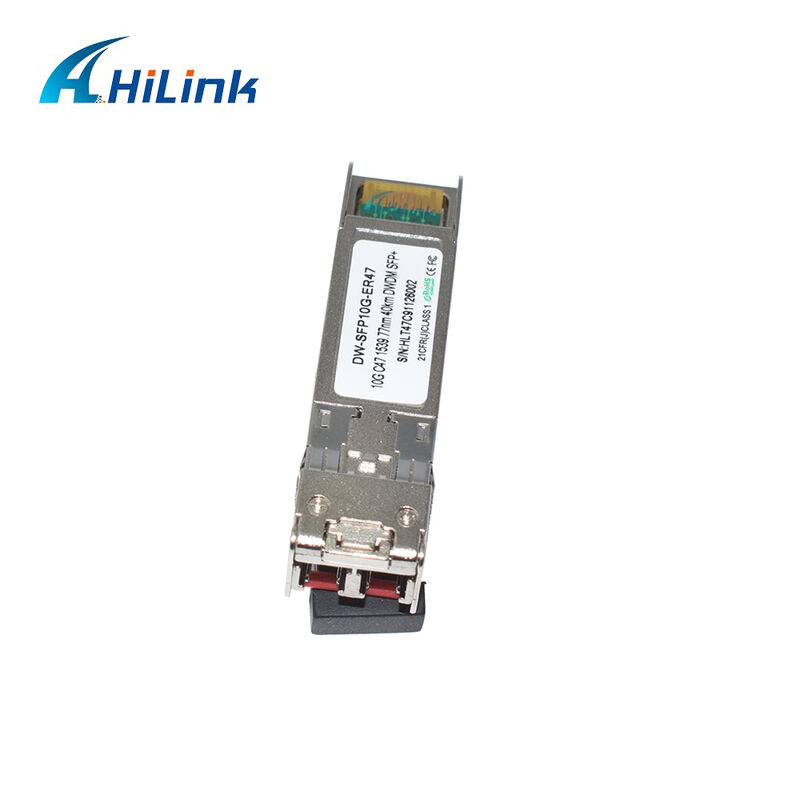

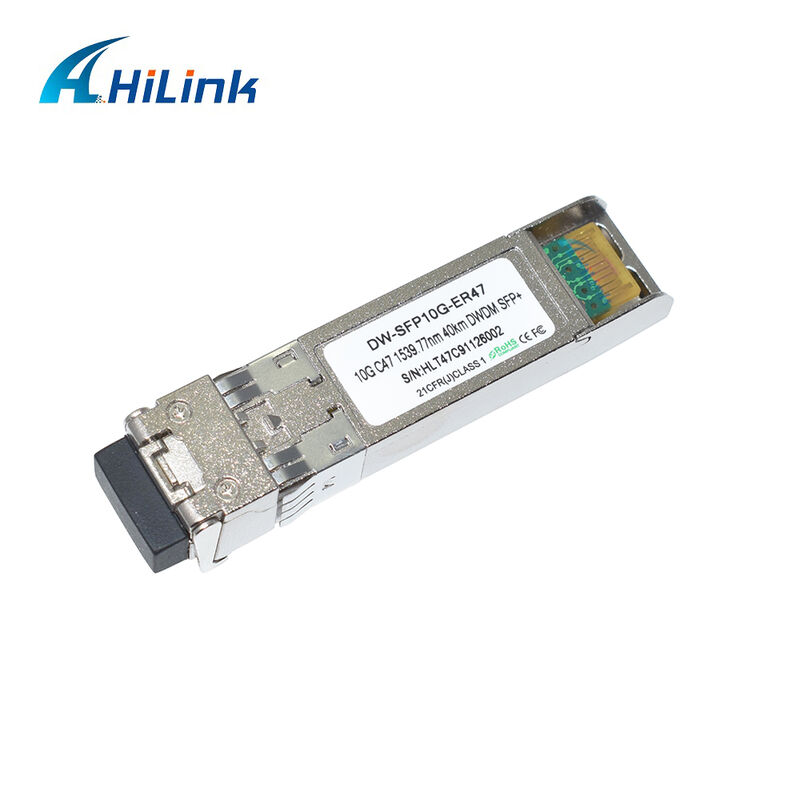

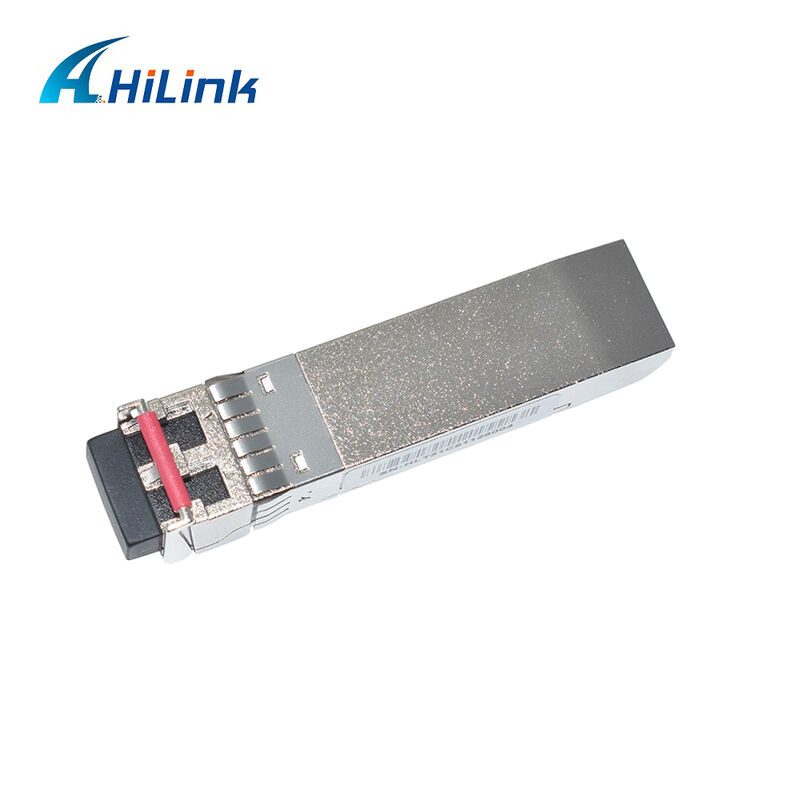

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-DWSFP10G-ER

Contact Us
Request A Quote
10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Product Details
Product Name:
10G DWDM SFP+ 40KM
Data Rate:
10G
Wavelength:
CH17~61
Distance:
40km
Warranty:
3 Years
Certification:
RoHS
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price 10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature online

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

Get Best Price
Good price 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength online

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Get Best Price
Good price Hilink Customized MTP/MPO Harness Cables online

Hilink Customized MTP/MPO Harness Cables

Get Best Price
Good price Hilink Customized MTP/MPO Patchcord Cables online

Hilink Customized MTP/MPO Patchcord Cables

Get Best Price
CONTACT US
Contact Now
Product Description
10G SFP+ DWDM Optical Transceiver Module
HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.
Product Overview
This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.
Key Features
  • Supports 9.95 to 11.3 Gb/s bit rates
  • Duplex LC connector
  • Hot pluggable SFP+ footprint
  • Cooled EML transmitter and PIN-TIA receiver
  • 40km Single Mode Fiber connection capability
  • Low power consumption < 1.2W
  • 100 GHz channel spacing
  • Digital Diagnostic Monitor Interface
  • Optical interface compliant to ITU-T 694.1 & G.698.1
  • Electrical interface compliant to SFF-8431 & SFF-8432
  • Operating case temperature options:
    • Commercial: 0°C to 70°C
    • Industrial: -5°C to 80°C
Applications
  • 10G Ethernet
  • 2x, 4x, 8x Fiber Channel
  • ITU-T G.698.1 compliant systems
  • Other optical link applications
10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 0 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 1 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength 2
Channel Selection Specifications
Channel Frequency (THz) Center Wavelength (nm)
17191.71563.86
18191.81563.05
19191.91562.23
20192.01561.42
21192.11560.61
22192.21559.79
23192.31558.98
24192.41558.17
25192.51557.36
26192.61556.55
27192.71555.75
28192.81554.94
29192.91554.13
30193.01553.33
31193.11552.52
32193.21551.72
33193.31550.92
34193.41550.12
35193.51549.32
36193.61548.51
37193.71547.72
38193.81546.92
39193.91546.12
40194.01545.32
41194.11544.53
42194.21543.73
43194.31542.94
44194.41542.14
45194.51541.35
46194.61540.56
47194.71539.77
48194.81538.98
49194.91538.19
50195.01537.40
51195.11536.61
52195.21535.82
53195.31535.04
54195.41534.25
55195.51533.47
56195.61532.68
57195.71531.90
58195.81531.12
59195.91530.33
60196.01529.55
61196.11528.77
Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
