Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector

Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector

100Gb/s QSFP28 Transceiver

20km Optical Transceiver Module

BIDI LR1 100G Transceiver

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-QSFP28-100G-UD-20

Contact Us
Request A Quote
Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector
Product Details
Product Name:
100G QSFP28 BIDI 20km
Data Rate:
100G
Distance:
20km
Warranty:
3 Years
DDM:
Yes
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance online

Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance

Get Best Price
Good price HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module online

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module

Get Best Price
Good price Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module online

Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module

Get Best Price
Good price Hilink QSFP28-BX-UD40 100G BiDi Optical Transceiver with 40km Distance for Data Center Applications online

Hilink QSFP28-BX-UD40 100G BiDi Optical Transceiver with 40km Distance for Data Center Applications

Get Best Price
CONTACT US
Contact Now
Product Description
Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Transceiver
The Hilink HL-QSFP28-100G-UD-20 provides 100GBase-BX throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1290nm-TX/1310nm-RX via an LC connector. This hot-pluggable duplex transceiver converts 4 input channels of 25Gbps electrical data to 1 lane optical signal channel for 100Gb/s (PAM4) optical transmission.
Key Features
  • QSFP28 MSA compliant
  • 100G Lambda MSA 100G-LR1 Specification compliant
  • Interoperable with IEEE 802.3cu
  • Supports 53.125Gbaud
  • Simplex LC connector
  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Single +3.3V power supply operating
  • Maximum power consumption 4.5W
  • Temperature range 0°C to 70°C
  • RoHS Compliant
Applications
  • Data Center Interconnect
  • 100G Ethernet
  • Enterprise networking
Technical Specifications
Transmission Distance: Up to 20km
Fiber Type: Single-mode fiber (SMF)
Wavelength: 1290nm-TX/1310nm-RX
Connector: Duplex LC
Data Rate: 100Gb/s
Compliance: IEEE 802.3-2012 Clause 88, IEEE 802.3cu CAUI-4, ITU-T G.959.1-2012-02
Product Images

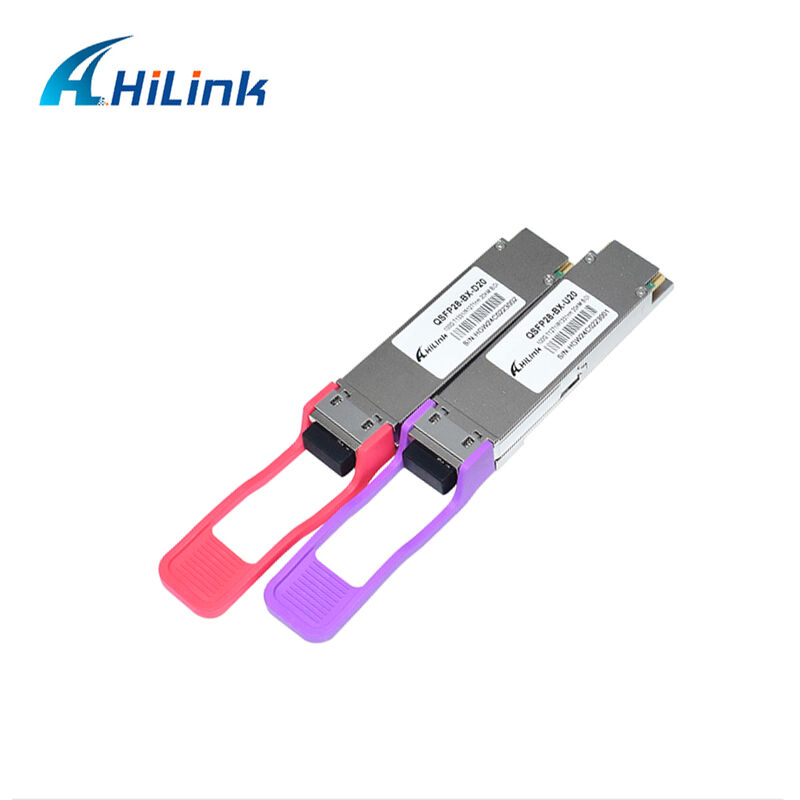

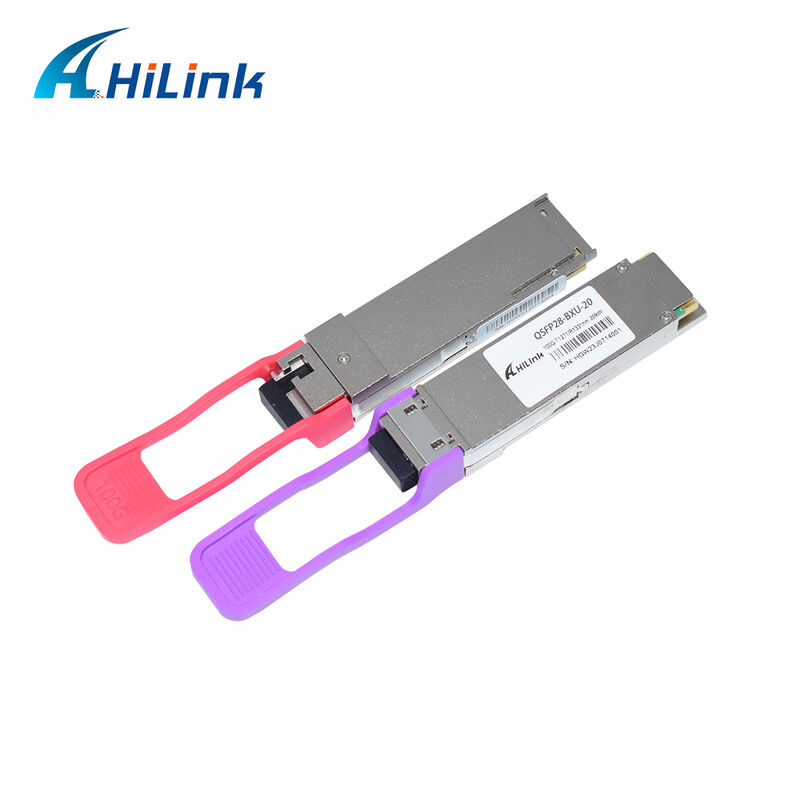

Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector 0 Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector 1
Company Information

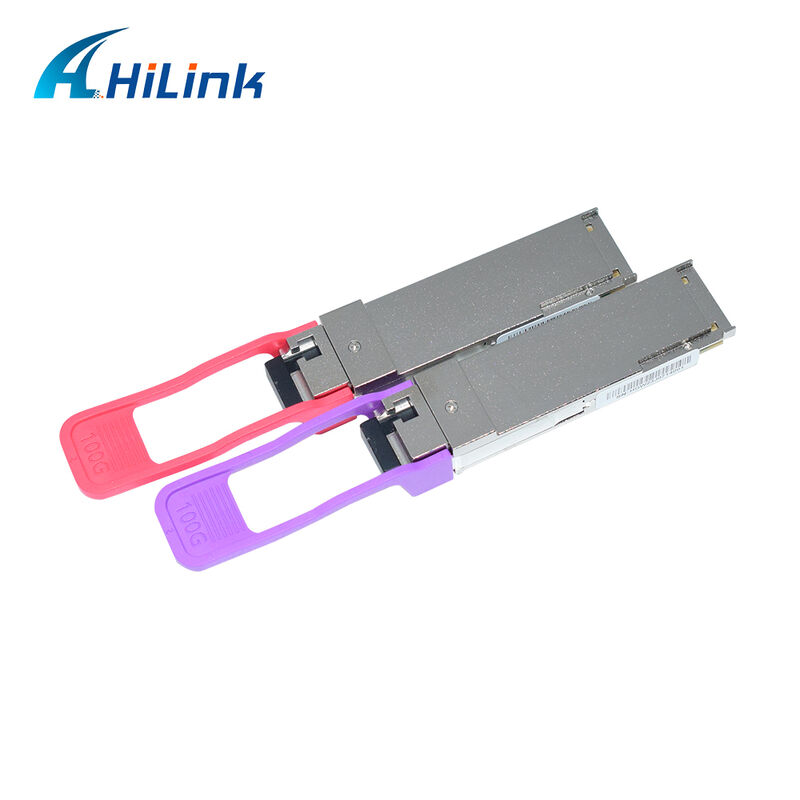

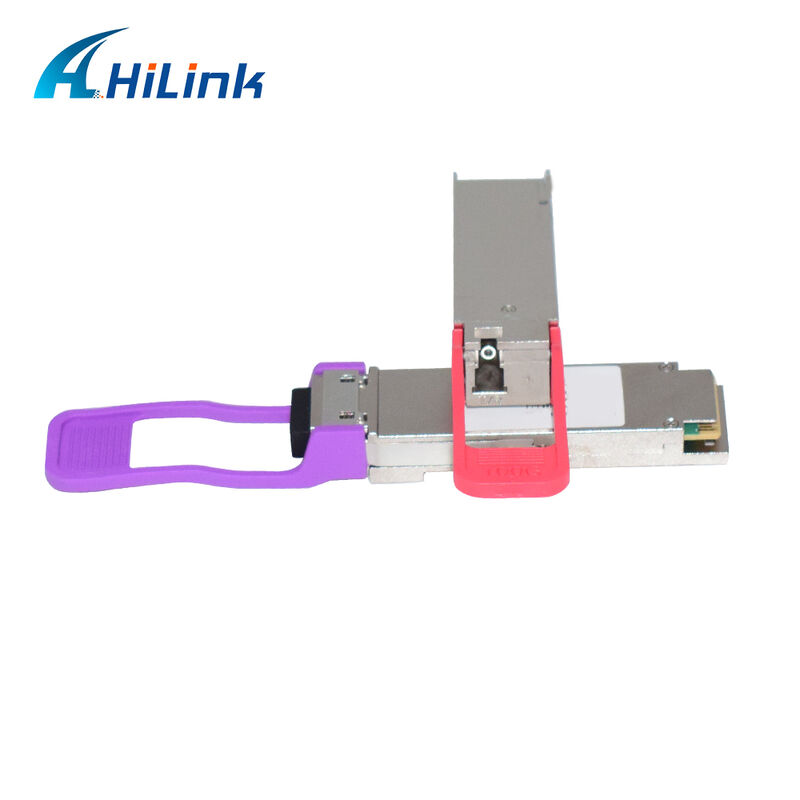

Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector 2 Hilink HL-QSFP28-100G-UD-20 100Gb/s 20km QSFP28 BIDI LR1 Optical Transceiver Module with Hot Pluggable LC Connector 3
