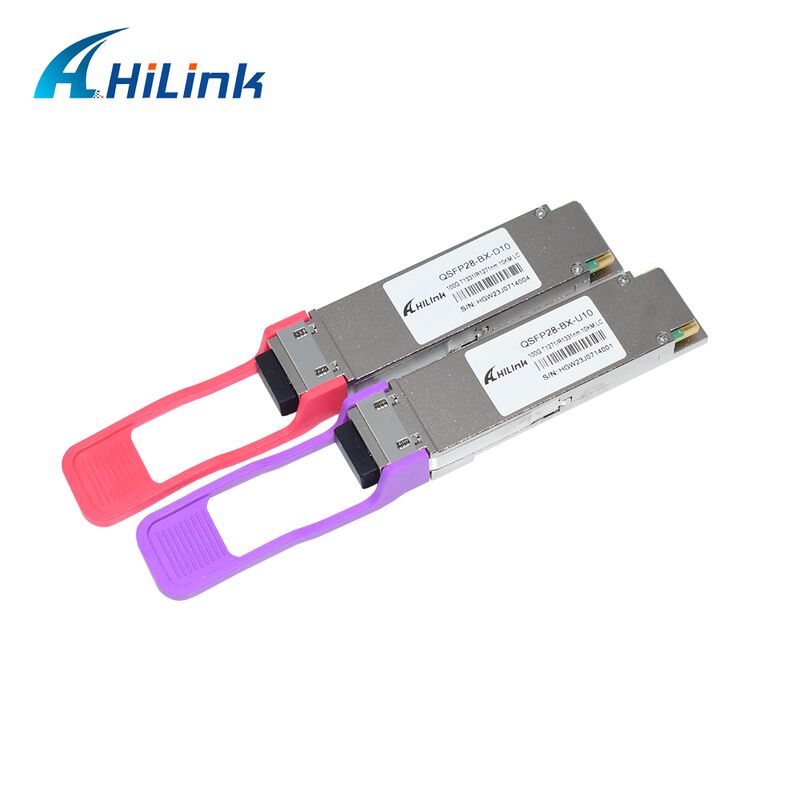

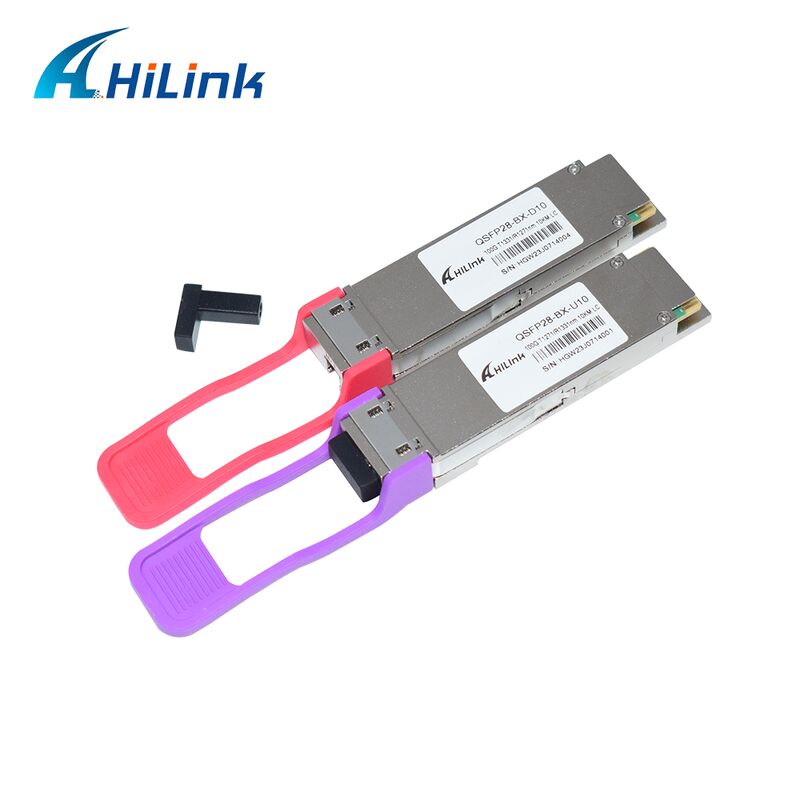

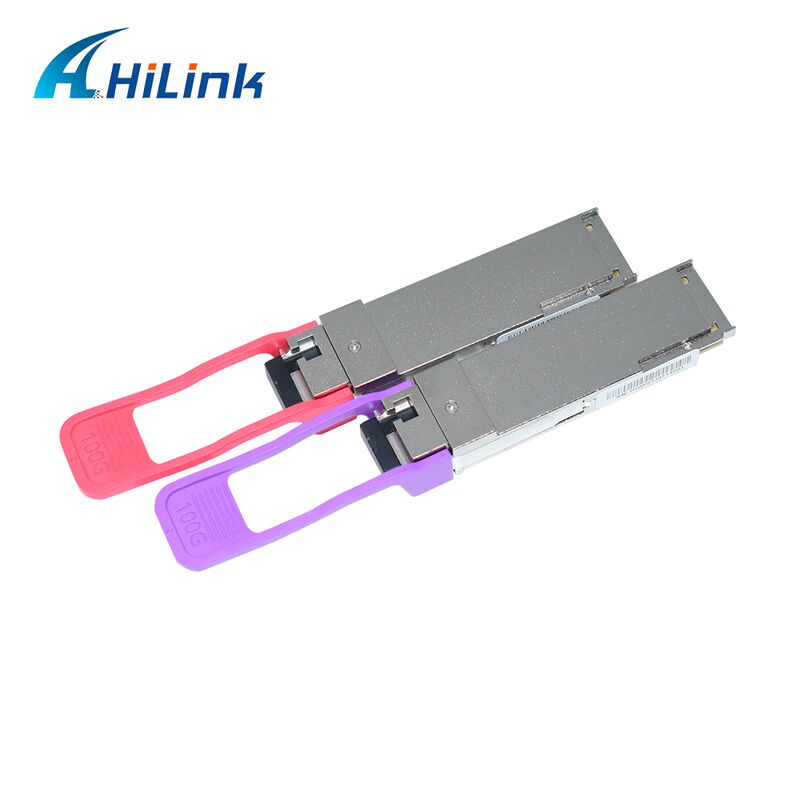

Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module

Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module

100Gb/s Data Rate QSFP28 Optical Transceiver

10km Transmission 100G Optical Transceiver Module

Single Lambda BIDI Optical Transceiver

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-QSFP28-100G-UD-10

Contact Us
Request A Quote
Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module
Product Details
Product Name:
100G QSFP28 BIDI 10km
Data Rate:
100G
Distance:
10km
Warranty:
3 Years
DDM:
Yes
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance online

Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance

Get Best Price
Good price HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module online

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module

Get Best Price
Good price Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module online

Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module

Get Best Price
Good price Hilink QSFP28-BX-UD40 100G BiDi Optical Transceiver with 40km Distance for Data Center Applications online

Hilink QSFP28-BX-UD40 100G BiDi Optical Transceiver with 40km Distance for Data Center Applications

Get Best Price
CONTACT US
Contact Now
Product Description
Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver
Product Overview
The Hilink HL-QSFP28-100G-UD-10 is a high-performance optical transceiver module designed for 10km optical communication applications. This QSFP28 form factor module supports 100Gb/s data rates and features single lambda bidirectional operation with a single LC connector.
Key Features
  • QSFP28 MSA compliant design
  • Supports up to 53.125Gbaud data rate
  • 100G Lambda MSA 100G-LR1-10 Specification compliant
  • Up to 10km transmission on single mode fiber (SMF) with KP4 FEC
  • Operating case temperature: 0°C to 70°C
  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Maximum power consumption of 4.5W
  • Single LC connector for bi-directional applications
  • RoHS Compliant for environmental safety
Applications
  • Data Center Interconnect solutions
  • 100G Ethernet networks
  • Enterprise networking infrastructure
Technical Description
This transceiver module incorporates one channel optical signal operating at 1271/1331nm center wavelength with 50Gbaud data rate capability. The transmitter path features an EML Driver and cooled EML combination, while the receiver path utilizes a Pin photodiode detector for optimal signal reception.
A DSP-based gearbox efficiently converts 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal, with integrated 4-channel retimer and FEC block within the DSP. The electrical interface complies with IEEE 802.3 and QSFP28 MSA specifications, while the optical interface meets IEEE 802.3 and 100G-LR1-10 standards per 100G Lambda MSA requirements.
Engineered to withstand demanding external operating conditions, this module demonstrates exceptional performance across temperature variations, humidity levels, and EMI interference environments.
Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module 0 Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module 1
Manufacturer Information
Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module 2 Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module 3
