OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

OSFP-400G-LR4

Contact Us
Request A Quote
OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module OSFP 400G LR4 1310nm 10km Transceiver Module
Product Details
Product Name:
OSFP-400G-LR4
Data Rate:
400G
Reach:
10km
Use:
Data Center
Fiber Connector:
Duplex LC
Operating Temperature:
0 To 70℃
Payment & Shipping Terms
Minimum Order Quantity
1 pieces
Price
Send Inquiry know latest price
Packaging Details
Plastic box+Carton
Delivery Time
5-8 working day
Payment Terms
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability
2000 Pieces/Week
RELATED PRODUCTS
Good price Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission online

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Get Best Price
Good price HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center online

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center

Get Best Price
Good price Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance online

Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance

Get Best Price
Good price HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module online

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module

Get Best Price
CONTACT US
+86 15917174650
sales05@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
OSFP 400G LR4 1310nm 10km Transceiver Module
Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.
Key Features
  • Supports 425Gbps
  • Single 3.3V Power Supply
  • Up to 10km over SMF with KP4 FEC supported at the Host side
  • Duplex LC connector
  • 8x53.125Gbps (PAM4) electrical interface
  • PIN and TIA array on the receiver side
  • Power dissipation < 8W
  • Case temperature range: 0°C to 70°C (commercial)
  • Safety Certification: TUV/UL/FDA*1
  • RoHS Compliant
Applications
  • 400G Ethernet
  • 400G-LR4 applications
  • Data center
  • InfiniBand
Transmitter Specifications
The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.
Receiver Specifications
The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.
Product Images

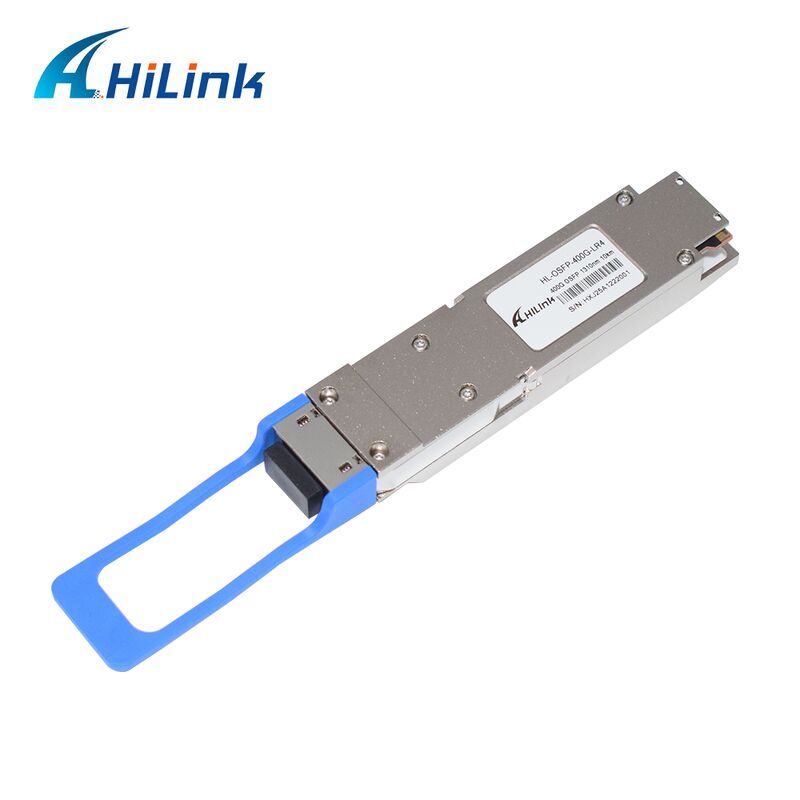

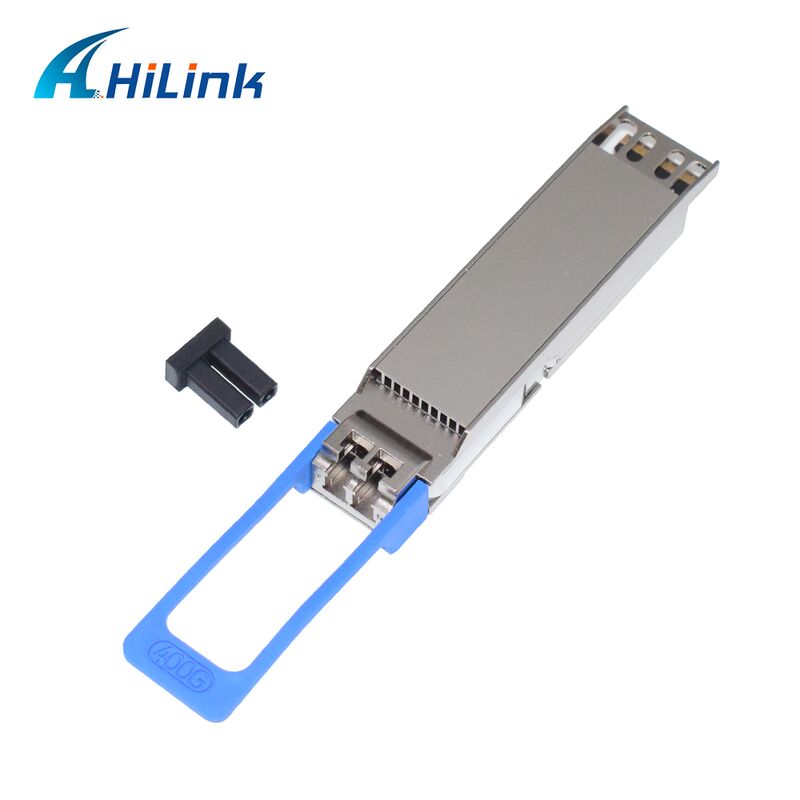

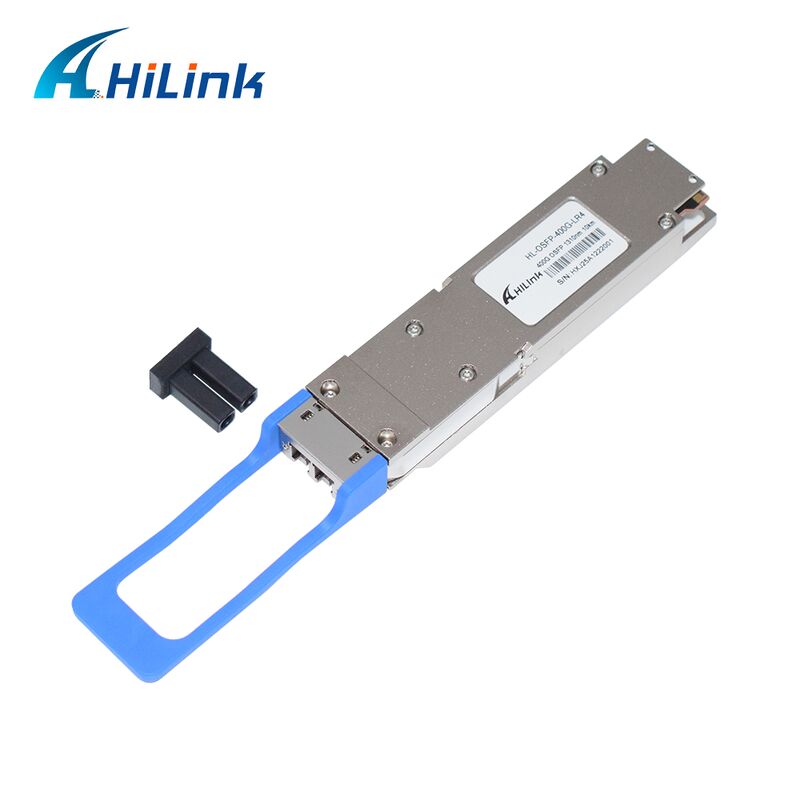

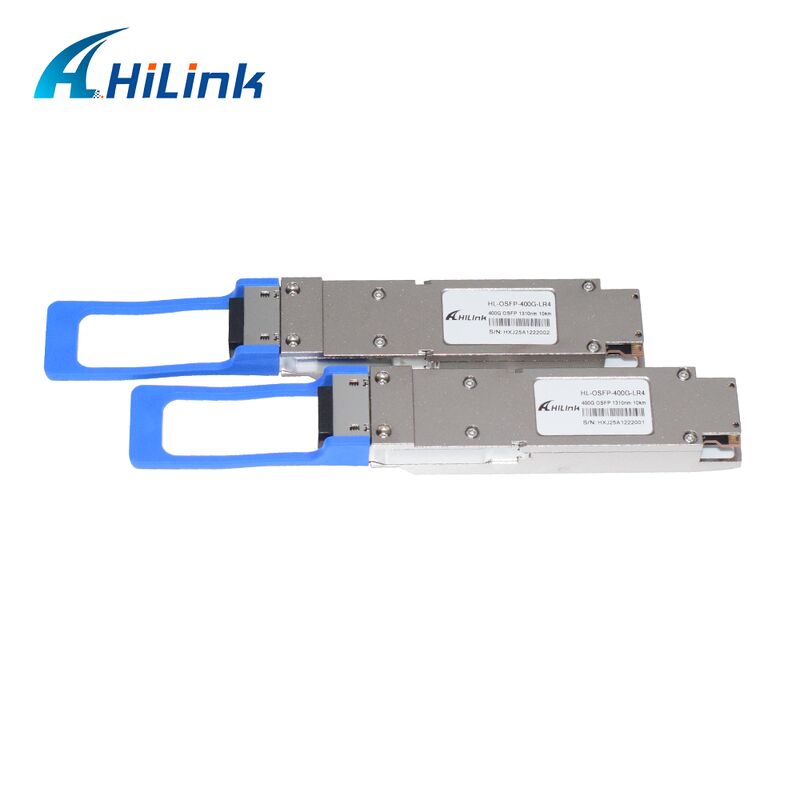

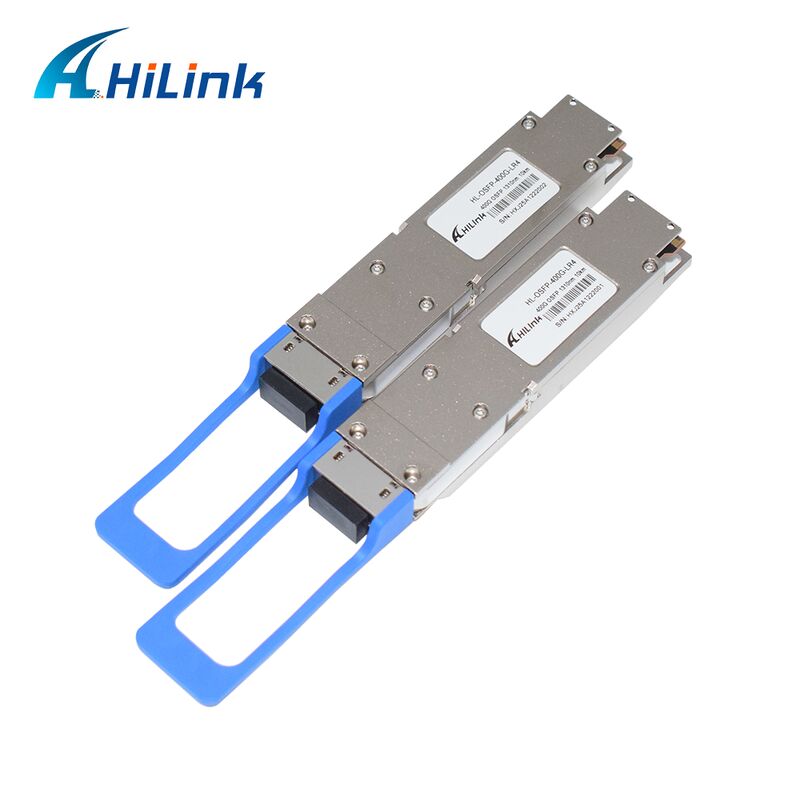

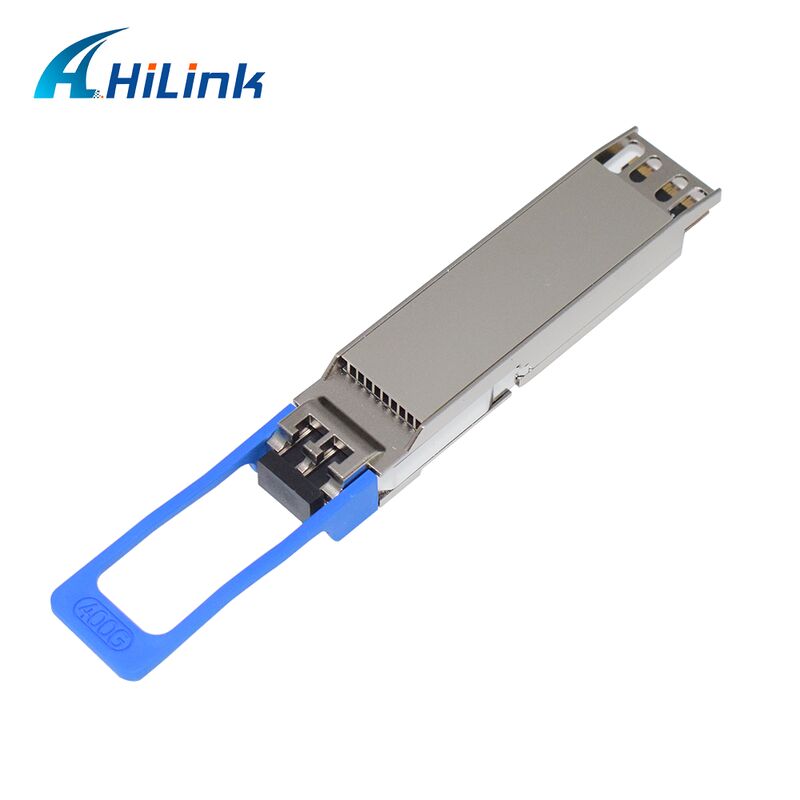

OSFP 400G LR4 1310nm 10km Transceiver Module 0 OSFP 400G LR4 1310nm 10km Transceiver Module 1
Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
