Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

400G Data Rate OSFP Transceiver

10km Distance Optical Transceiver Module

1310nm Wavelength 400G Optical Module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-OSFP-400G-LR4

Contact Us
Request A Quote
Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission
Product Details
Product Name:
400G OSFP 10km
Data Rate:
400G
Wavelength:
1310nm
Distance:
10km
Warranty:
3 Years
DDM:
Yes
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission online

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Get Best Price
Good price HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center online

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center

Get Best Price
Good price Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance online

Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance

Get Best Price
Good price HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module online

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module

Get Best Price
CONTACT US
Contact Now
Product Description
Hilink 400G OSFP 1310nm 10km SMF Duplex LC DDM Transceiver
Hilink's OSFP transceiver module is engineered for 400 Gigabit Ethernet applications, delivering reliable performance over 10km single mode fiber connections. This advanced optical solution supports high-speed data transmission with comprehensive digital diagnostics monitoring capabilities.
Technical Specifications
Data Rate: Supports 425Gbps aggregate data rate
Wavelength: 1310nm operating on ITU G.694.2 CWDM grid
Transmission Distance: Up to 10km over single mode fiber
Connector Type: Duplex LC
Power Supply: Single 3.3V
Power Consumption: < 8W
Operating Temperature: 0°C to 70°C (commercial grade)
Key Features
  • 8 independent electrical channels operating at 53.125Gbps each
  • Integrated GearBox converts 8x53.125Gbps electrical to 4x106.25Gbps optical signals
  • PAM4 modulation technology for enhanced data transmission
  • KP4 FEC support at host side for improved signal integrity
  • PIN and TIA array on receiver side for optimal performance
  • Compliant with IEEE 802.3bs 400GAUI-8 interface standards
  • OSFP MSA compliance ensures interoperability
  • Digital Diagnostics Monitoring (DDM) capabilities
  • Safety certifications: TUV/UL/FDA approved
  • RoHS compliant for environmental safety
Applications
This transceiver is ideal for 400G Ethernet networks, 400G-LR4 applications, data center infrastructure, and InfiniBand systems requiring high-bandwidth, long-distance optical connectivity.
Product Images

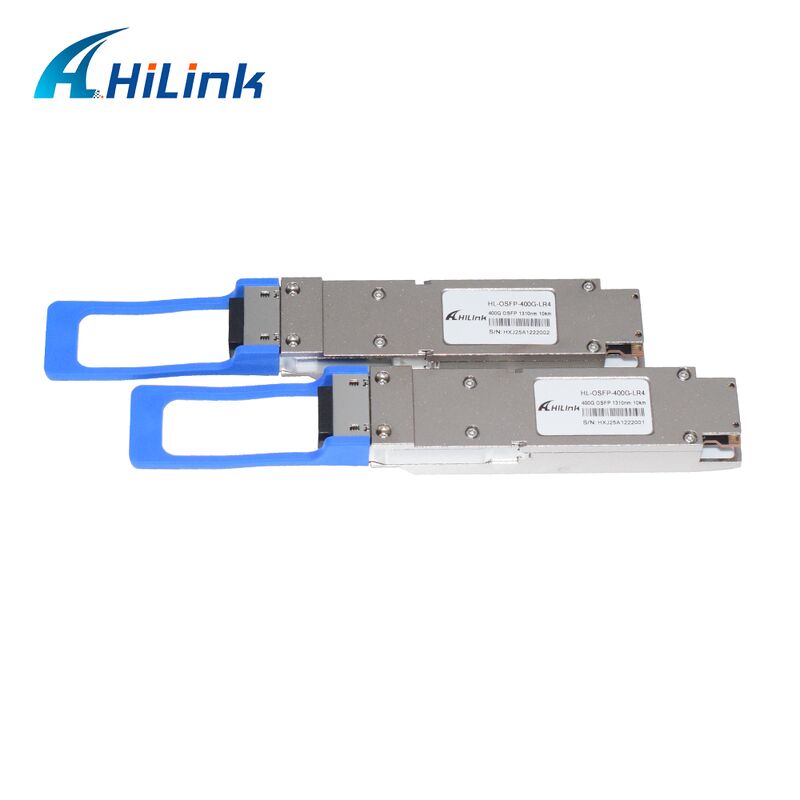

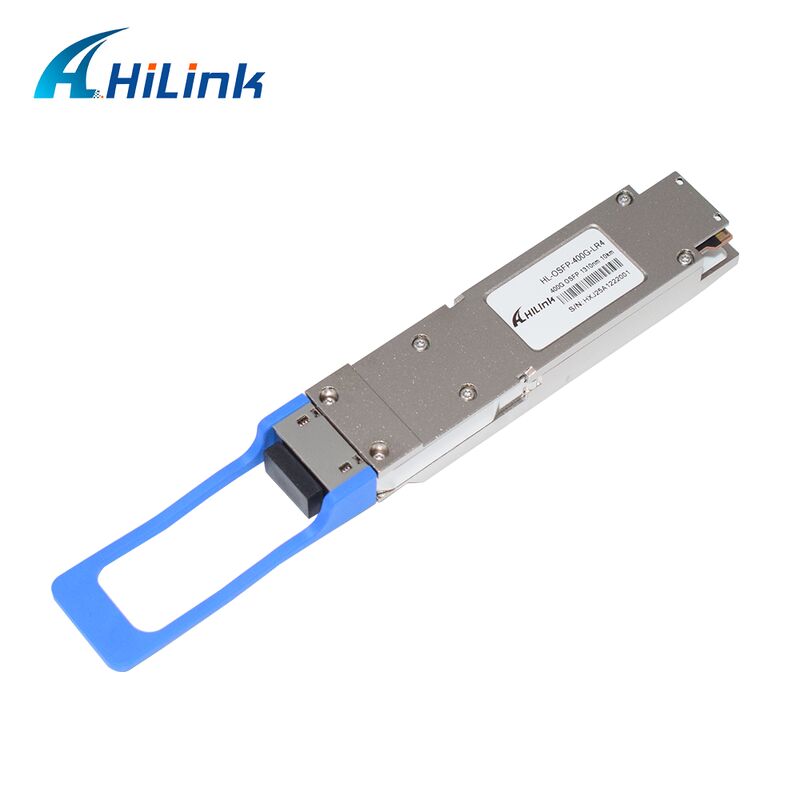

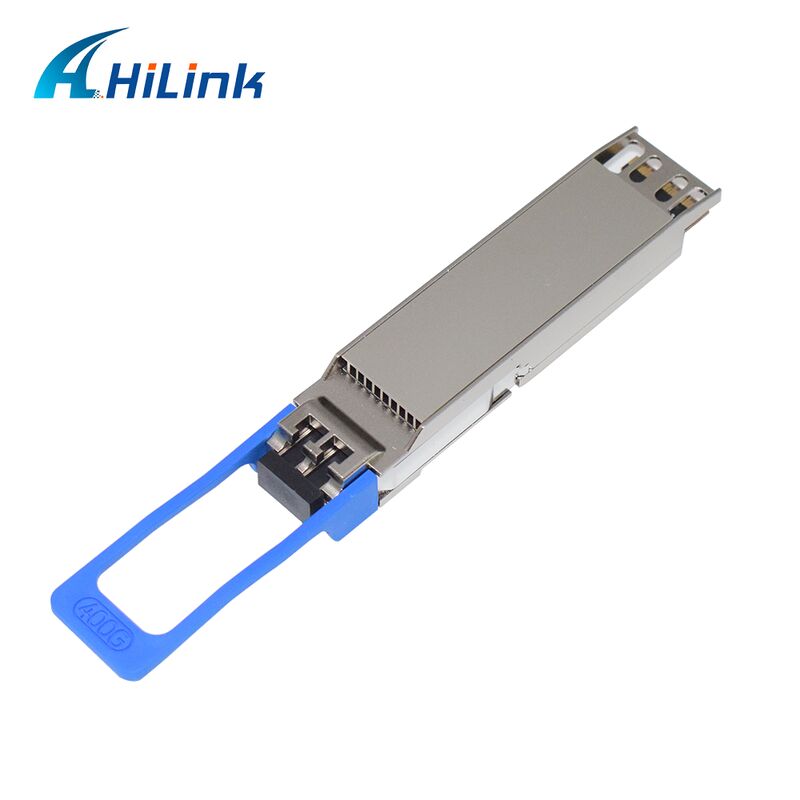

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 0 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 1 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 2
Manufacturer Information

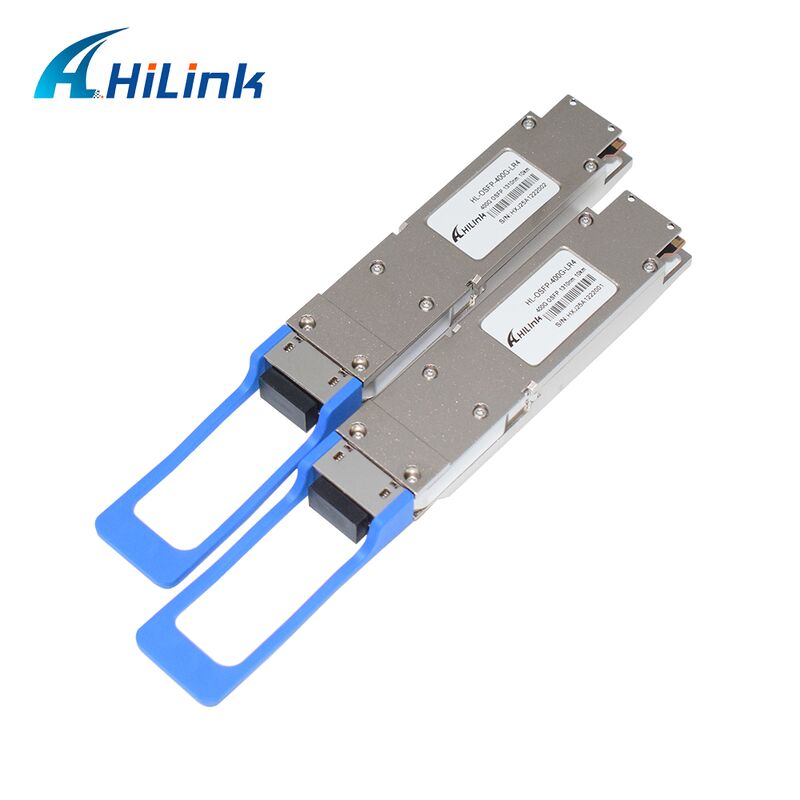

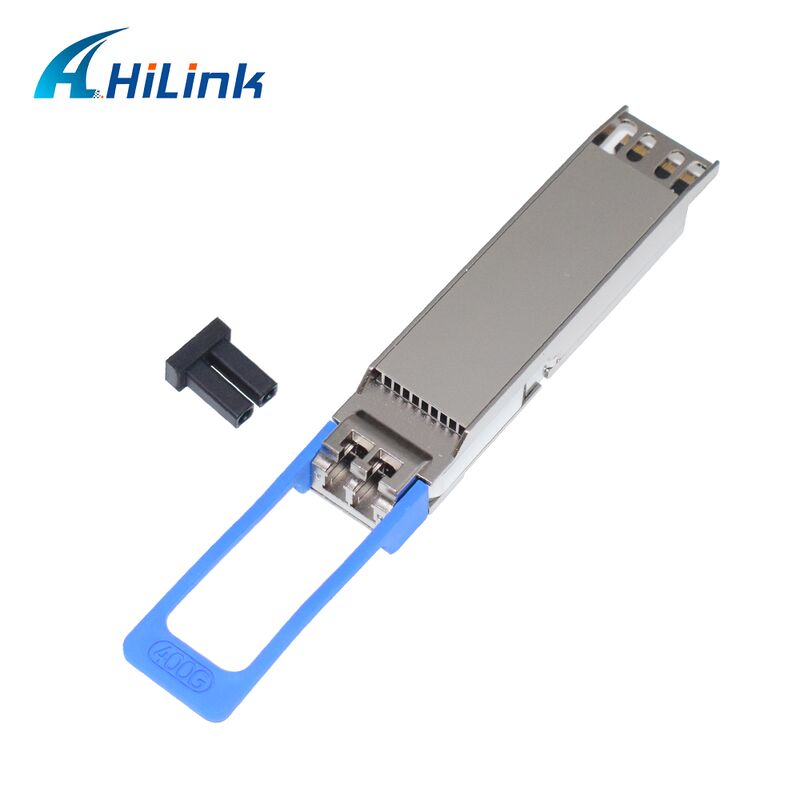

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 3 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 4
