Name: SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP-BXU-L5/HL-SFP-BXD-L5
Price: 5.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Place of Origin:

Brand Name:

HiLink or OEM

Certification:

CE FCC ROSH

Model Number:

HL-SFP-BXU-L5/HL-SFP-BXD-L5

Request A Quote

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Product Details

Product Name:

SFP+ 10G BIDI 5KM Optical Transceiver

Data Speed:

10G

Transmission:

5KM

Connector Type:

Wavelength:

T1270/R1330

Compatible:

Cisco, Juniper, Arista, Huawei, Etc

Payment & Shipping Terms

Minimum Order Quantity

1 pair

Price

US$5.00~US$6.00/pair

Packaging Details

Normal package or OEM

Delivery Time

5-8 working days

Payment Terms

T/T, Paypal,Western Union

Supply Ability

2000 pairs per week

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Get Best Price

10Gb/s XFP Bi-Directional Transceiver 40km Reach TX1270/1330nm RX1330/1270nm RoHS Compliant

Get Best Price

Hilink 10G Data Rate SFP+ Transceiver with 30M/80M Distance and RoHS Compliant 10GBASE-T Copper Module

Get Best Price

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver with RJ-45 Connector

Get Best Price

Contact Now

Product Description

Description

The HL-SFP-BXU-L5/HL-SFP-BXD-L5 Transceiver is intended for 5km reach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Product features

l Operating data rate up to 10.3125Gbps

l Up to 5km transmission distance

l High sensitivity PIN photodiode and TIA

l 12dB Power Budget at Least

l LC single connector

l Hot pluggable 20pin connector

l Low power consumption <1.2 W

l Single +3.3V±5% power supply

l Compliant with SFF-8472&SFF-8431

l Fully RoHS Compliant

l Compliant with IEEE802.3ae 10GBASE-LR/LW

l Operating temperature range:

Commercial: 0°C to +70°C

Industrial: -40°C to +85°C

Application

l 10GBASE-LR at 10.31Gbps

l 10GBASE-LW at 9.95Gbps

l Other Optical Links

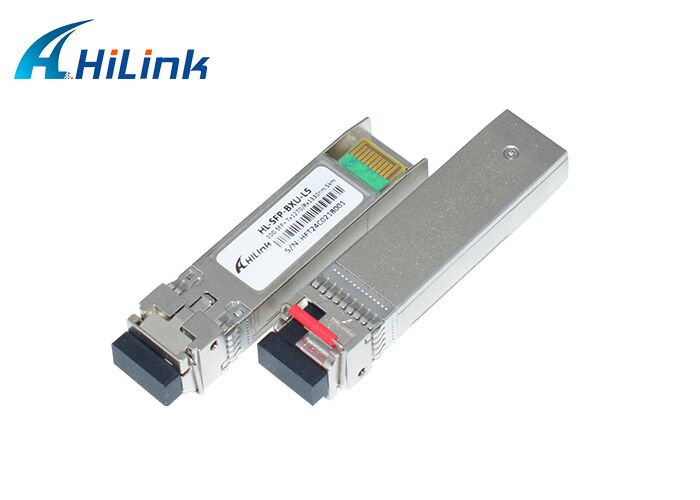

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 0

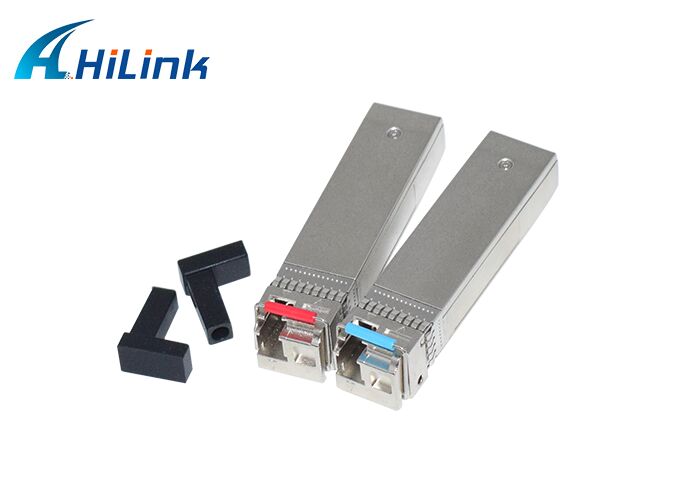

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 1

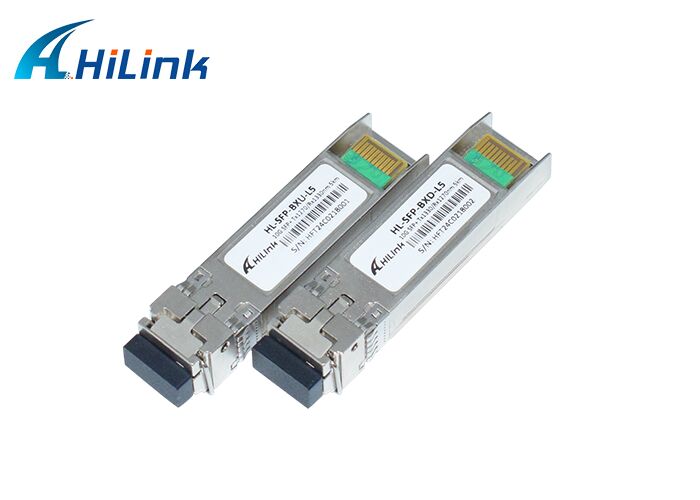

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 2
