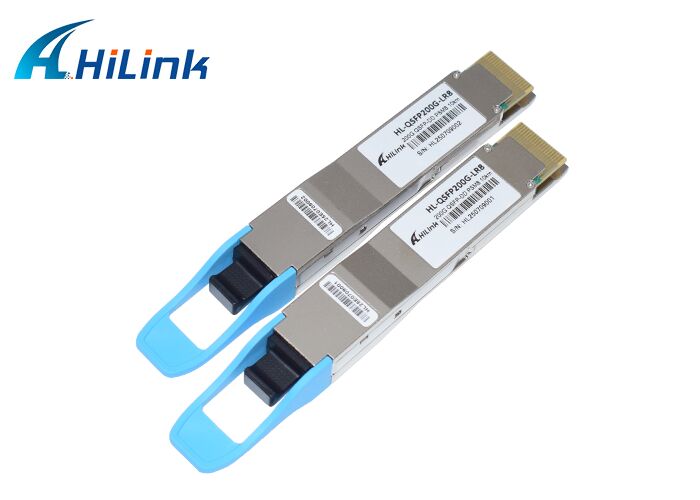

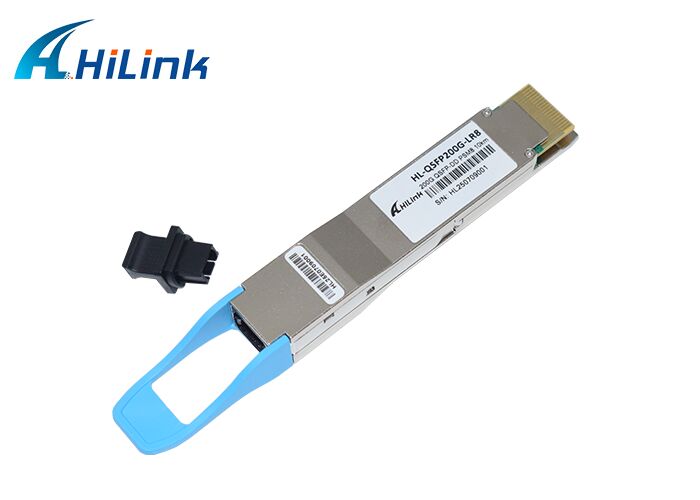

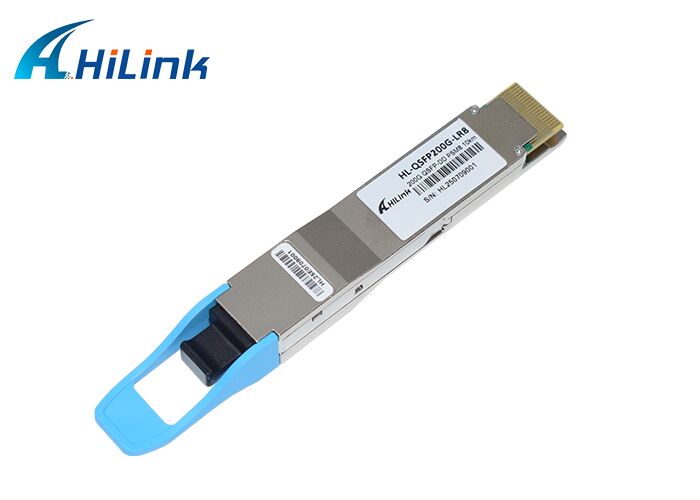

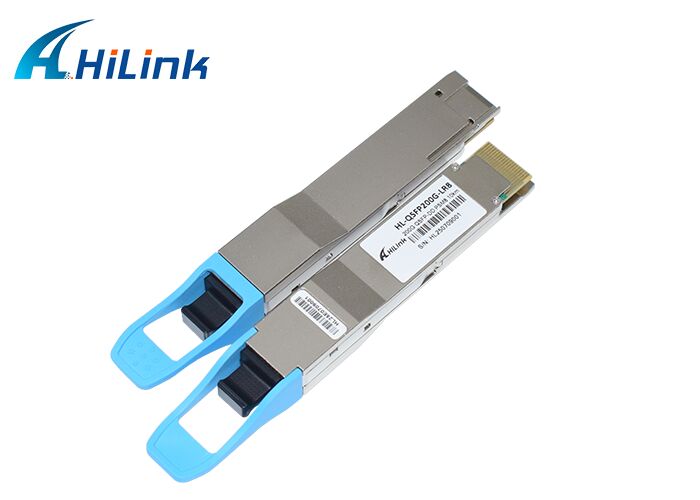

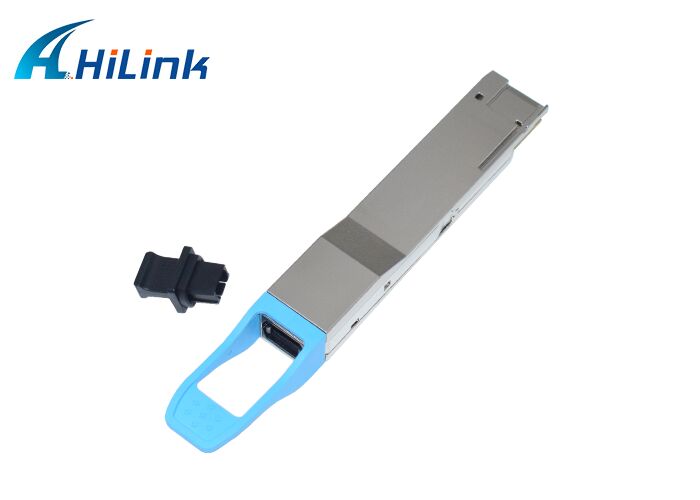

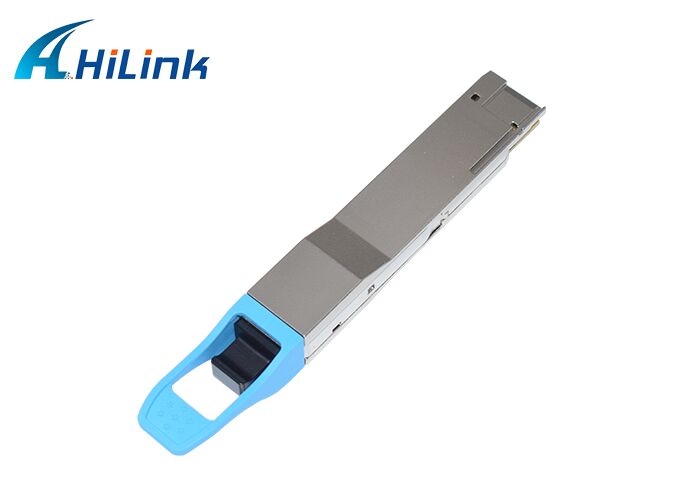

Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Place of Origin:

China

Brand Name:

HiLink or OEM

Certification:

CE FCC ROSH

Model Number:

HL-QSFP200G-LR8

Request A Quote

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Product Details

Product Name:

200G QSFP DD PSM8 10km Optical Transceiver(MPO16)

Transmission:

10KM

Data Speed:

200G

Connector:

MPO16

Wavelengths:

1310nm

OEM:

Support

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Negotiable

Packaging Details

Normal Packaging or OEM

Delivery Time

5-8 working days

Payment Terms

T/T,Western Union,Paypal

Supply Ability

2000pcs per week

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Get Best Price

10Gb/s XFP Bi-Directional Transceiver 40km Reach TX1270/1330nm RX1330/1270nm RoHS Compliant

Get Best Price

Hilink 10G Data Rate SFP+ Transceiver with 30M/80M Distance and RoHS Compliant 10GBASE-T Copper Module

Get Best Price

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver with RJ-45 Connector

Get Best Price

Contact Now

Product Description

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
