Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-QSFP200G-LR8

Contact Us
Request A Quote
Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Product Details
Product Name:
QSFP200G-LR8
Data Rate:
200G
Distance:
10KM
Warranty:
3 Years
Certification:
RoHS
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring online

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Get Best Price
Good price Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring online

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Get Best Price
Good price QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Optical Transceiver online Video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Optical Transceiver

Get Best Price
Good price QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver online

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Get Best Price
Contact Us
Contact Now
Product Description
Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)
Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features
  • 8 channels full-duplex transceiver modules
  • Supports 8×25Gb/s aggregate bit rates
  • Supports 8×10Gb/s aggregate bit rates if required
  • 8 channels 1310nm DFB
  • 8 channels PIN photo detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Support CDR bypass
  • Low power consumption <6.5W
  • Hot Pluggable QSFP DD form factor
  • Up to 10km reach for G.652 SMF
  • Single male MPO16 (APC 8-degree) connector receptacle
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • 2×100G Ethernet links
  • Infiniband DDR/EDR
  • Datacenter and Enterprise networking
Product Images

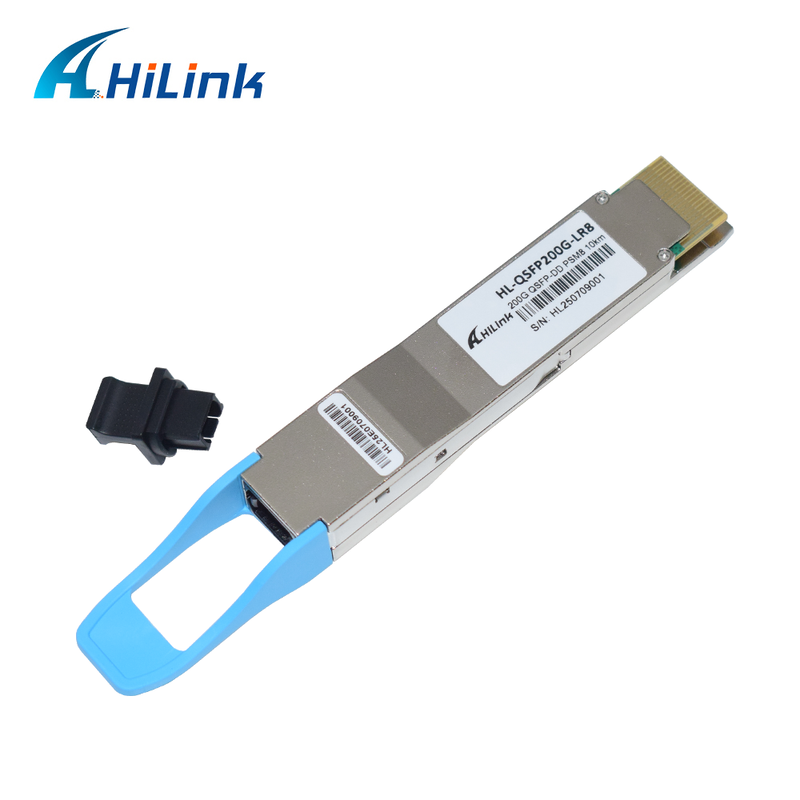

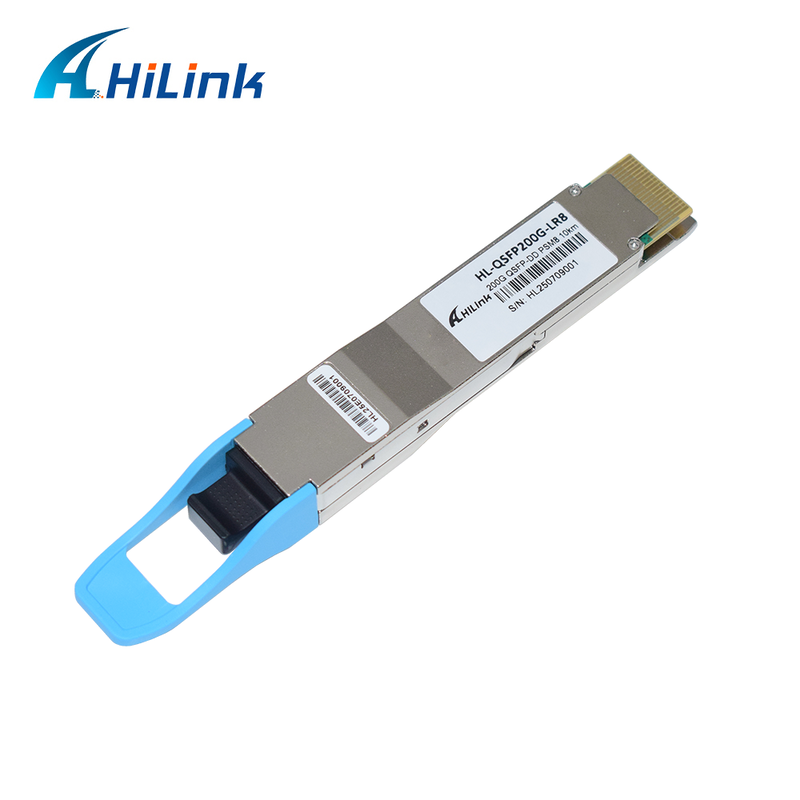

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design 0

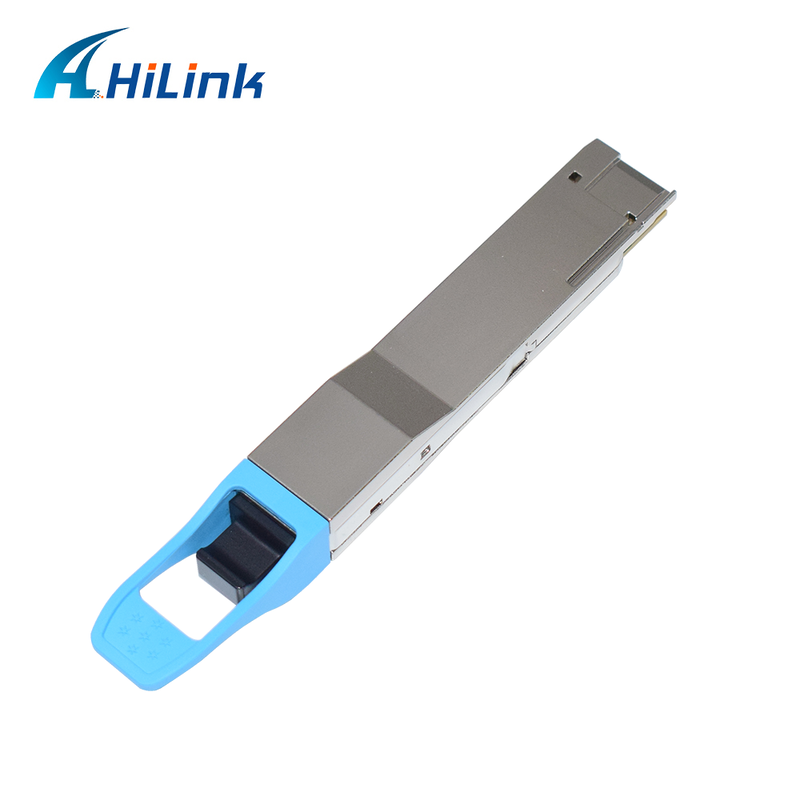

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design 1

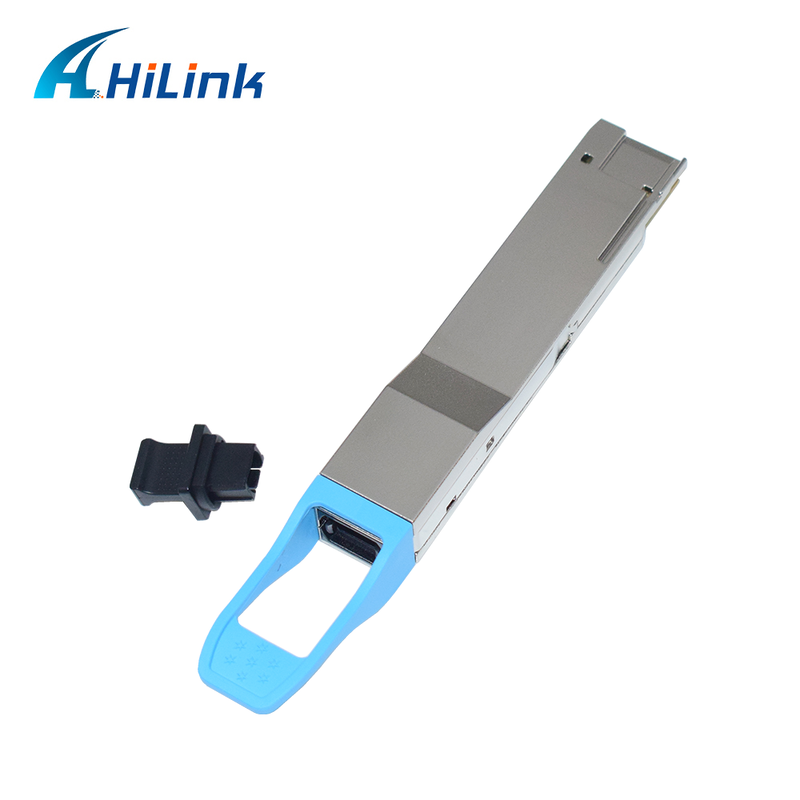

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design 2
