OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption

OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption

Place of Origin:

China

Brand Name:

HiLink or OEM

Certification:

CE, FCC, ROSH

Model Number:

HL-800G-OSFP-SR8

Contact Us
Request A Quote

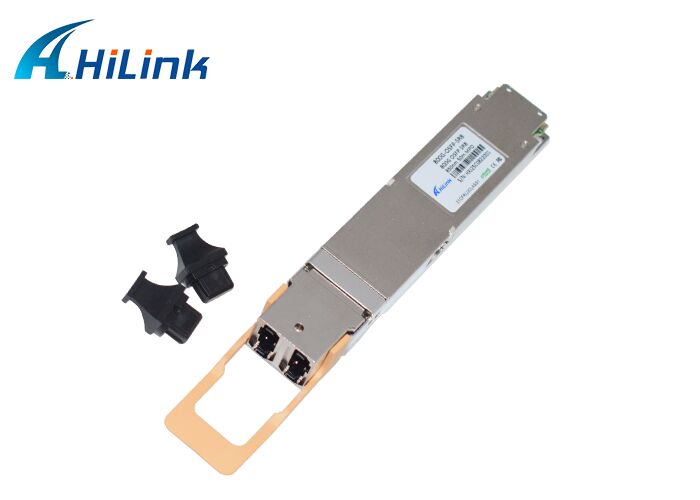

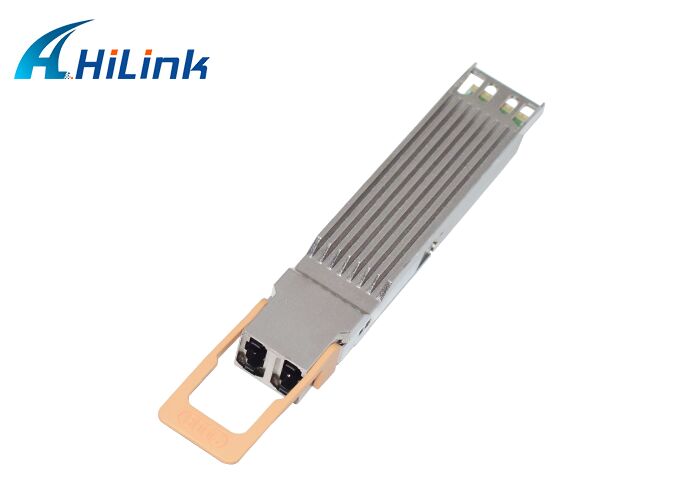

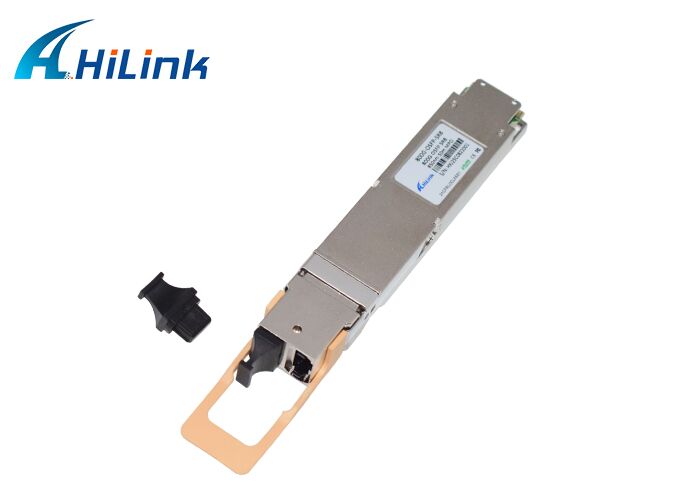

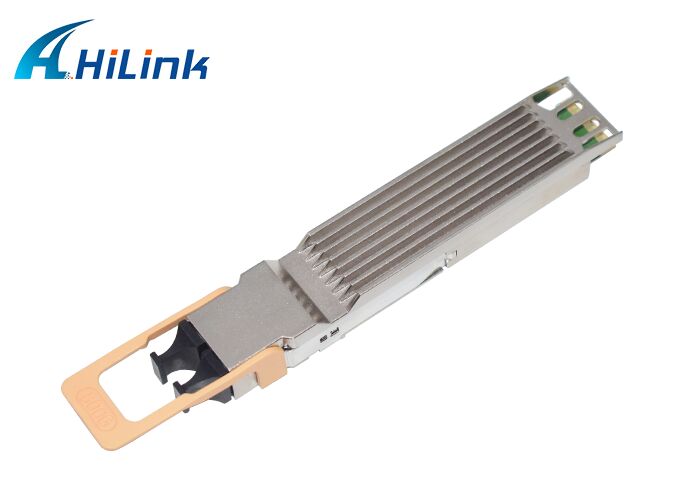

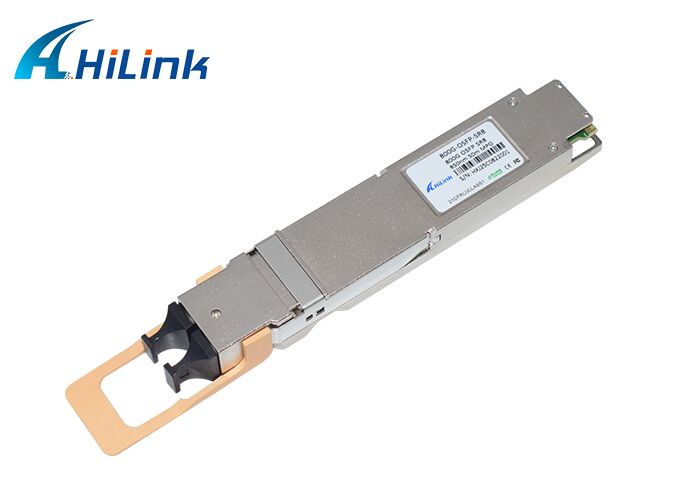

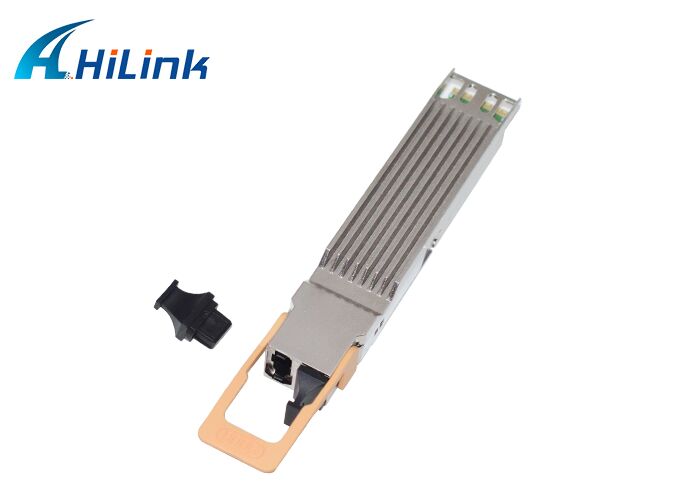

OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption
OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption
Product Details
Data Speed:
Up To 106.25 Gb/s Per Channel
Transmission Distance:
100m
Power Consumption:
15W
Connector Type:
MPO12-APC
Operating Temperature:
0 ~ +70℃
Power Supply:
Single +3.3V
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Packaging Details
Normal Package or OEM
Delivery Time
5-8 working days
Payment Terms
T/T,Western Union,paypal
Supply Ability
2000pcs per week
RELATED PRODUCTS
Good price Hilink 200G QSFP56 Compatible Active Optical Cable with Customizable Length for High-Speed Data Transmission online

Hilink 200G QSFP56 Compatible Active Optical Cable with Customizable Length for High-Speed Data Transmission

Get Best Price
Good price Hilink 200G QSFP56 to 2*100G Active Optical Cable with Customizable Length and 3 Years Warranty online

Hilink 200G QSFP56 to 2*100G Active Optical Cable with Customizable Length and 3 Years Warranty

Get Best Price
Good price Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design online

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Get Best Price
Good price Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring online

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Get Best Price
Contact Us
Contact Now
Product Description
OSFP800 800G 2xSR4 Optical Transceiver
Product Overview
This 800Gb/s OSFP800 2xSR4 optical module is designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s. On the receiver side, it converts 8 channels of parallel optical signals back into electrical output data. An optical fiber cable with dual MPO12-APC connectors plugs directly into the module receptacle. Host FEC is required to support up to 100m fiber transmission.
Key Features
  • Up to 106.25 Gb/s data rate per channel using PAM4 modulation
  • Support for 800GAUI-8 electrical interface
  • Integrated 850nm VCSEL array and PD array
  • Digital Diagnostic Monitoring (DDM) function implemented
  • Hot-pluggable design
  • Single +3.3V power supply
Technical Standards
  • Compliant with OSFP MSA 5.0
  • Compliant with CMIS 4.0
  • 8x106.25Gb/s electrical interface (800GAUI-8)
  • Maximum power consumption: 15W
  • Single +3.3V power supply
  • Case temperature range: 0°C to +70°C
  • RoHS 2.0 compliant
Applications
Data centers and Cloud Networks
OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption 0
OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption 1
OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption 2
