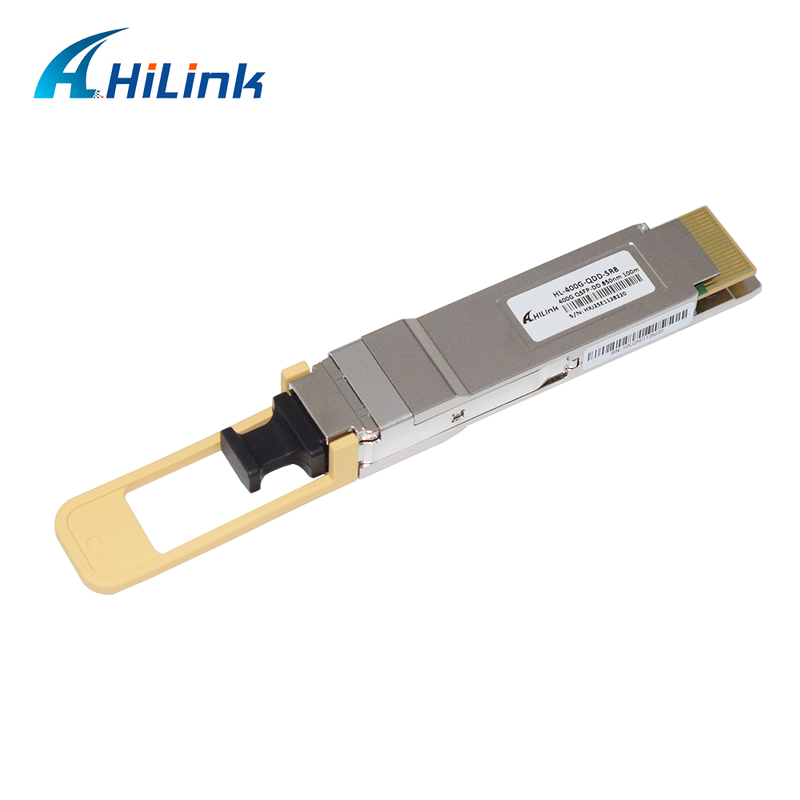

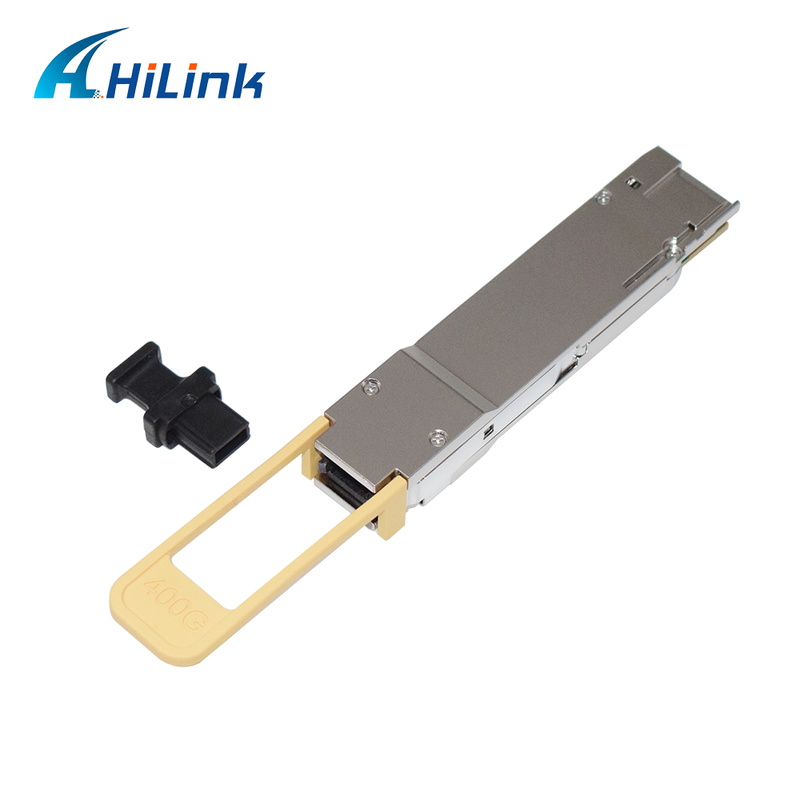

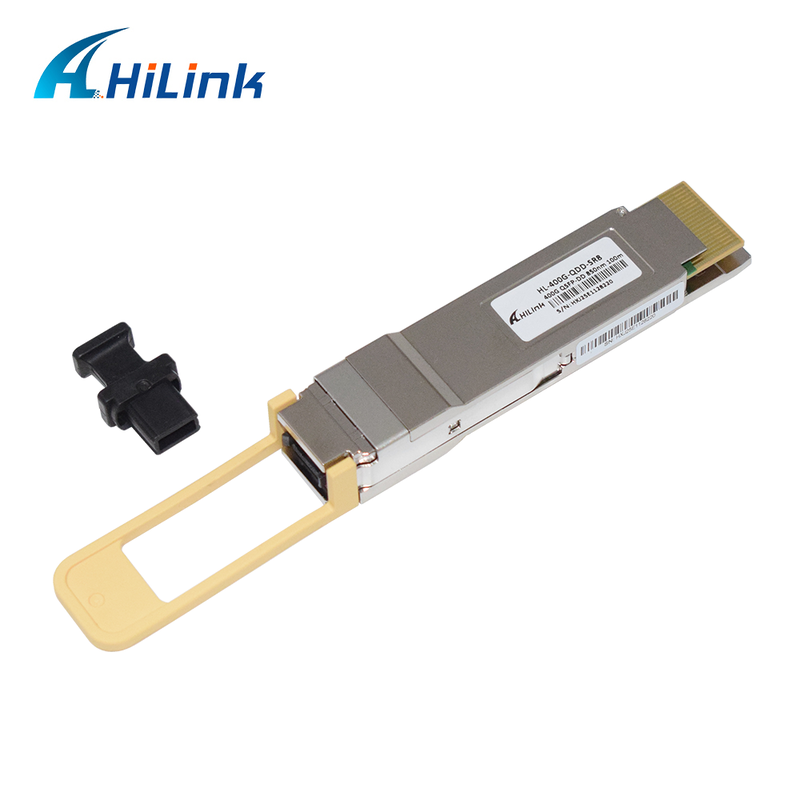

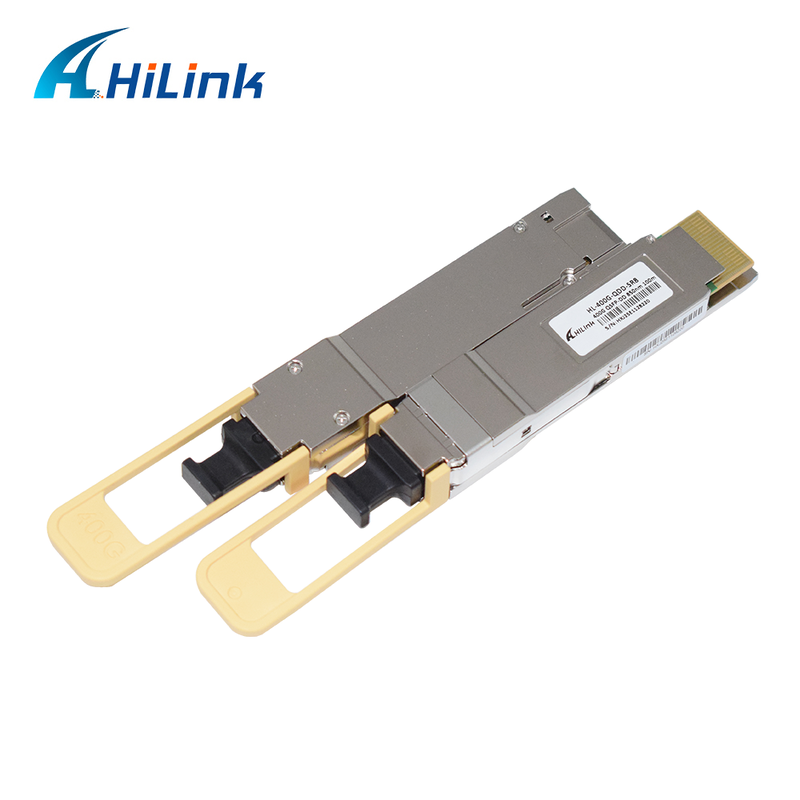

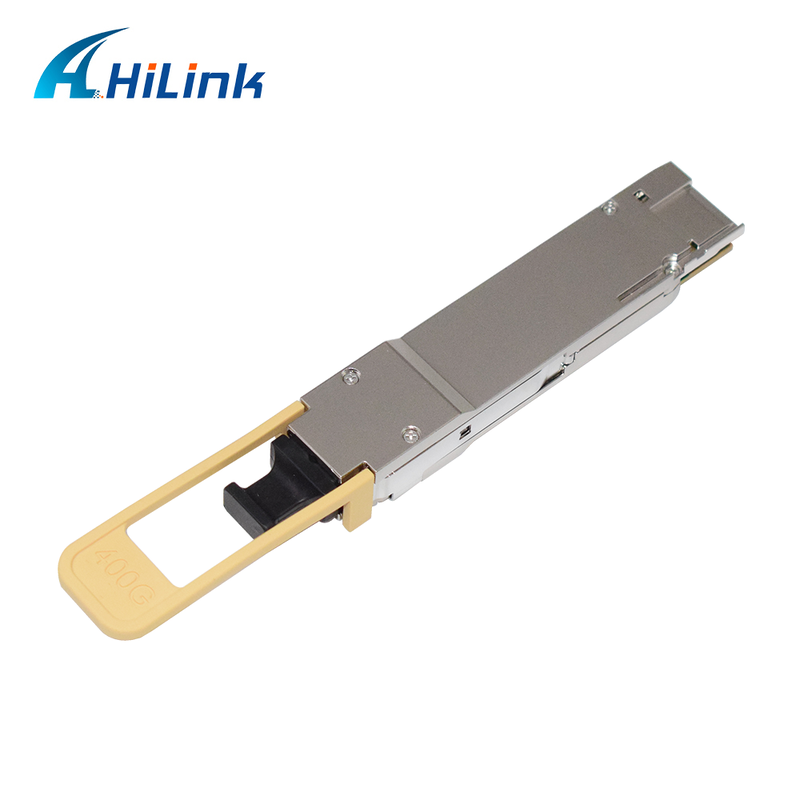

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-QDD-400G-SR8

Contact Us
Request A Quote
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring
Product Details
Product Name:
QDD-400G-SR8
Data Rate:
400G
Wavelength:
850nm
Distance:
100m
Connector:
MPO-16
Warranty:
3 Years
Certification:
RoHS
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
EXW Price: 120USD/PCS~130USD/PCS
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink 100G QSFP28 Optical Transceiver with 100km Distance 1295~1304nm Wavelength and SOA PIN Detector online

Hilink 100G QSFP28 Optical Transceiver with 100km Distance 1295~1304nm Wavelength and SOA PIN Detector

Get Best Price
Good price Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring online

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Get Best Price
Good price Hilink 10-100-1000BASE-T 1000BASE-T 100M RJ45 Copper SFP Transceiver online

Hilink 10-100-1000BASE-T 1000BASE-T 100M RJ45 Copper SFP Transceiver

Get Best Price
Good price Hilink 10-100BASE-T 100BASE-T 100M RJ45 Copper SFP Transceiver online

Hilink 10-100BASE-T 100BASE-T 100M RJ45 Copper SFP Transceiver

Get Best Price
Contact Us
Contact Now
Product Description
Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring
The QDD-400G-SR8 is an 8-channel, pluggable, fiber-optic QSFP-DD transceiver designed for 400Gbps SR8 applications. This high-performance module supports short-range data communication and interconnect applications, operating at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles, while the electrical interface employs a 76-contact edge-type connector.
Key Features
  • Hot-pluggable QSFP-DD form factor
  • Data Rate: 53.125 Gb/s PAM4 per lane
  • 8x53Gbps PAM4 transmitter and PAM4 receiver
  • 8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array
  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
  • Digital diagnostics functions available via I2C interface
  • Single 3.3V Power Supply with Power Dissipation < 12W
  • MPO-16 connector
  • Operating Case Temperature: 0℃ to +70℃
  • RoHS compliant
Applications
  • 400G BASE-SR8 Ethernet
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 0 Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 1
Company Information
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 2 Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 3
OEM/ODM orders are available upon request.
Quality Guarantee
We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
Product Portfolio
We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.
Frequently Asked Questions
  • Do you sell second-hand products?
    No. All our products are brand new, and we never use second-hand components.
  • What payment terms do you accept?
    We accept T/T, PayPal, and Western Union.
  • What shipping methods do you offer?
    Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
  • Do your products come with warranty?
    Yes, we provide a 3-year warranty for all our products from the date of shipment.
  • What devices are your products compatible with?
    Our products are compatible with mainstream network switches and equipment.
  • How to place an order?
    1. Confirm order details - provide the model and quantity you need
    2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
    3. Confirm and ship goods - tracking number will be sent promptly
    4. We'll help track your shipment until safe delivery
