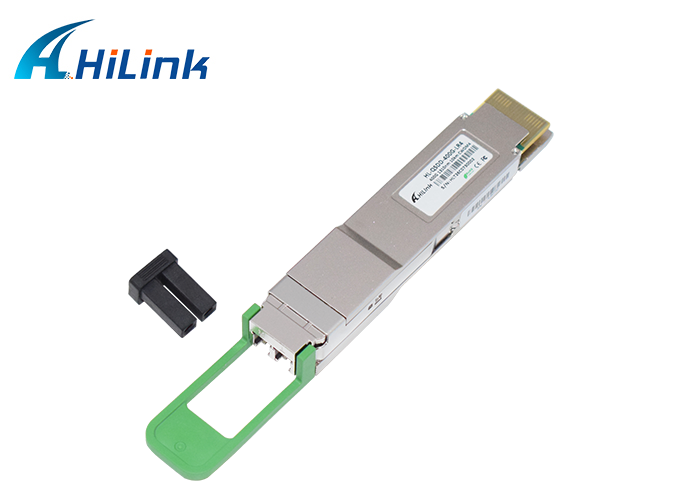

Name: 400G QSFP-DD LR4 Optical Transceiver with 10km Transmission 1310nm Wavelength and Duplex LC Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSDD-400G-LR4
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

400G QSFP-DD LR4 Optical Transceiver with 10km Transmission 1310nm Wavelength and Duplex LC Connector

10km Transmission 400G QSFP-DD Optical Transceiver

1310nm Wavelength QSFP-DD LR4 Optical Module

Duplex LC Connector 400G Ethernet Transceiver

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-QSDD-400G-LR4

Request A Quote

400G QSFP-DD LR4 Optical Transceiver with 10km Transmission 1310nm Wavelength and Duplex LC Connector

Product Details

Products Name:

400G LR4 10KM

Connetor:

Duplex LC

Data Rate:

400G

Distance:

10KM

Wavelength:

1310nm

Temperature:

0℃ ~ +70℃

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

T/T,L/C

Supply Ability

100pcs/month

QSFP28 100G BIDI 10KM Optical Transceiver SMF Simplex LC Connector DDM 1271/1331

Get Best Price

HL-40G-ZR4-100KM 40G 100km 1550nm QSFP+ Transceiver Hot Pluggable, Duplex LC Connector, Single mode

Get Best Price

QSFP-40G-ZR4 80KM EML APD LWDM 1295-1304NM Commercial Temperature Duplex LC Connector QSFP Transceiver

Get Best Price

Hilink Compatible 1.25G DWDM SFP Optical Transceiver with Duplex LC Connector for 40km/80km/120km/160km Distance

Get Best Price

86-755-8317-6243

Contact Now

Product Description

Optical Transceivers Module

400G QSFP-DD LR4 10km CWDM4 1310nm SMF Duplex LC Optical Transceiver

The module is designed for 2 km optical communication applications, and it is compliant with 100G Lambda MSA standard. This module can convert 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals, and multiplex them into a single channel for 425 Gbps optical transmission. Similarly, it optically de-multiplexes a 425 Gbps input into 4-channel signals, and converts them to 8-channel output electrical data on the receiver side.

Product Features

4x106.25Gbps PAM4 parallel lanes
8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
4 duplex channels transmitters and PIN receivers
4 CWDM lanes MUX/DEMUX design
Maximum power consumption 9 W
LC duplex connector
Up to 10 km transmission on single mode fiber
Operating case temperature: 0°C to 70°C
Single 3.3 V power supply
QSFP-DD MSA compliant rev5.0 compliant
Compliant to IEEE 802.3cu

Applications

400G Ethernet
Data center network

Part No.	Specifications									Application
Part No.	Package	Data rate	Laser	Optical Power	Detector	Sensitivity	Temp	Reach	Other	Application
400G-QDD-LR4	QSFP-DD	400G	CWDM EML	-2.8~4 dBm	PIN	Max (-6.6, -8+ SECQ )	0~70℃	10Km	DDM	400G Ethernet
